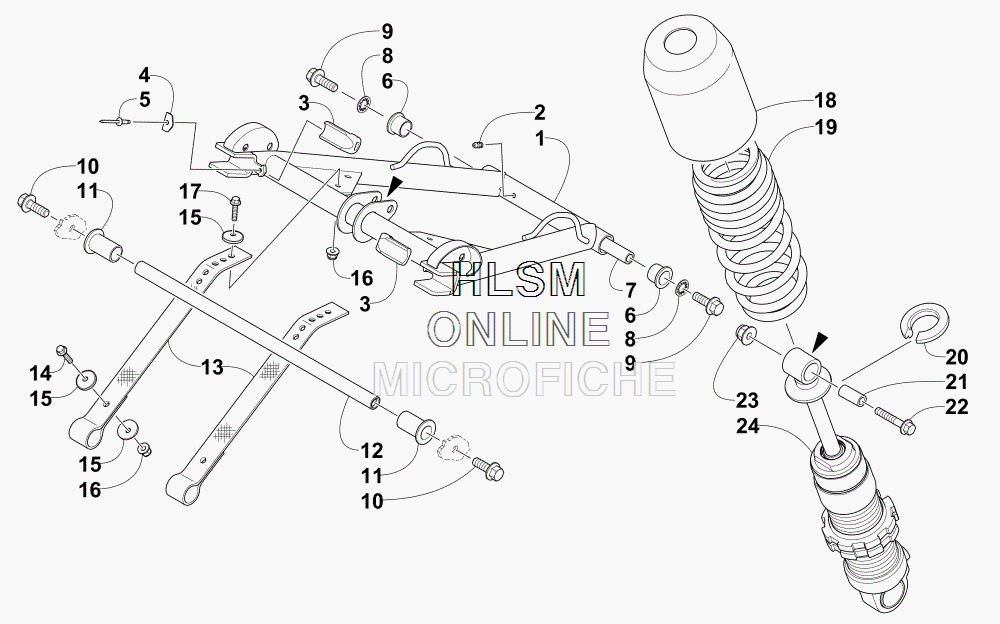

SUSPENSION REAR - FRONT ARM ASSEMBLY для Arctic Cat XF 7000 SNO PRO 137 (INTERNATIONAL) (GREEN) [S2015XFUSPOSG] - 2015 года выпуска
-
№АртикулНазвание
-
12704-263 ARM, FRONT SUSPENSION - (BLACK) (INC. 2-6)ARM, FRONT SUSPENSION - (BLACK) (INC. 2-6)
-
21623-010 ...FITTING,GREASE-1/4-28 UNF-SELF THREAD...FITTING,GREASE-1/4-28 UNF-SELF THREAD
-
33604-141 ...BUMPER, FRONT SLIDER...BUMPER, FRONT SLIDER
-
43604-968 ...PLATE, RETAINING...PLATE, RETAINING
-
58060-708 ...RIVET,BLIND-DH SS66 (BLACK)...RIVET,BLIND-DH SS66 (BLACK)
-
63604-028 ...BUSHING, FLARED -BRONZE .735" X .751 ID...BUSHING, FLARED -BRONZE .735" X .751 ID
-
73604-634 AXLEAXLE
-
81623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
98413-031 SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
-
108408-041 SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353
-
113604-233 BUSHING,FRONT SLIDERBUSHING,FRONT SLIDER
-
123604-663 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
133604-823 STRAP, LIMITERSTRAP, LIMITER
-
148408-630 SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
-
158450-109 WASHER,FLAT M6-6.87X25.4X2.32 Z & YWASHER,FLAT M6-6.87X25.4X2.32 Z & Y
-
168427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
178408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
-
180604-790 COVER,SUSPENSION SPRING (SHORT)COVER,SUSPENSION SPRING (SHORT)
-
191704-461 SPRING, COMPRESSION - (BLACK)SPRING, COMPRESSION - (BLACK)
-
203604-200 RETAINER,SPRING-POWDER METALRETAINER,SPRING-POWDER METAL
-
213604-273 AXLEAXLE
-
228408-045 SCREW,CAP-HFH M10X1.25X45 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X45 CL8.8 Z & Y
-
238427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
242704-549 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
