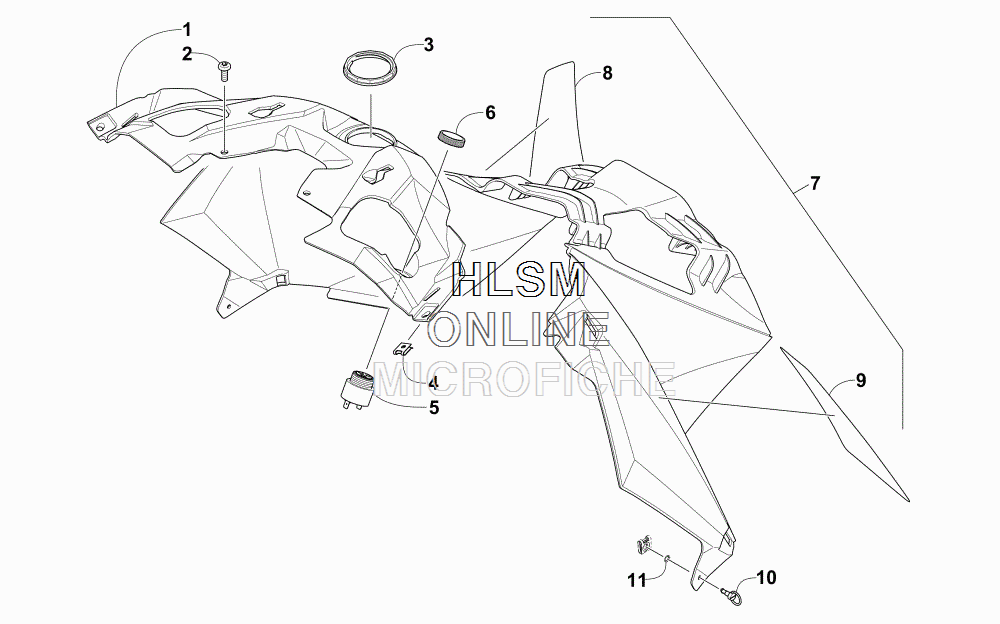

CONSOLE ASSEMBLY для Arctic Cat XF 8000 CROSS-COUNTRY LTD 141 (INTERNATIONAL) (ORANGE) [S2015X8HLEOSO] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/fe80d04b-5ba4-4253-94a5-c7de6a6188e8.gif)
-
№АртикулНазвание
-
16606-305 CONSOLE, UPPER - BLACKCONSOLE, UPPER - BLACK
-
20423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
36606-390 NUT, RETAININGNUT, RETAINING
-
41623-939 CLIP, U-NUTCLIP, U-NUT
-
50630-243 ALARM, REVERSE (INC. 6)ALARM, REVERSE (INC. 6)
-
60630-017 ...RING, RETAINING...RING, RETAINING
-
73718-998 CONSOLE, LOWER - BLACK (INC. 8-9)CONSOLE, LOWER - BLACK (INC. 8-9)
-
89611-499 ...DECAL, WARNING (ENGLISH)...DECAL, WARNING (ENGLISH)
-
99611-498 ...DECAL, WARNING (FRENCH)...DECAL, WARNING (FRENCH)
-
102623-003 PIN, RETAININGPIN, RETAINING
-
112623-004 NUT, PUSHNUT, PUSH
