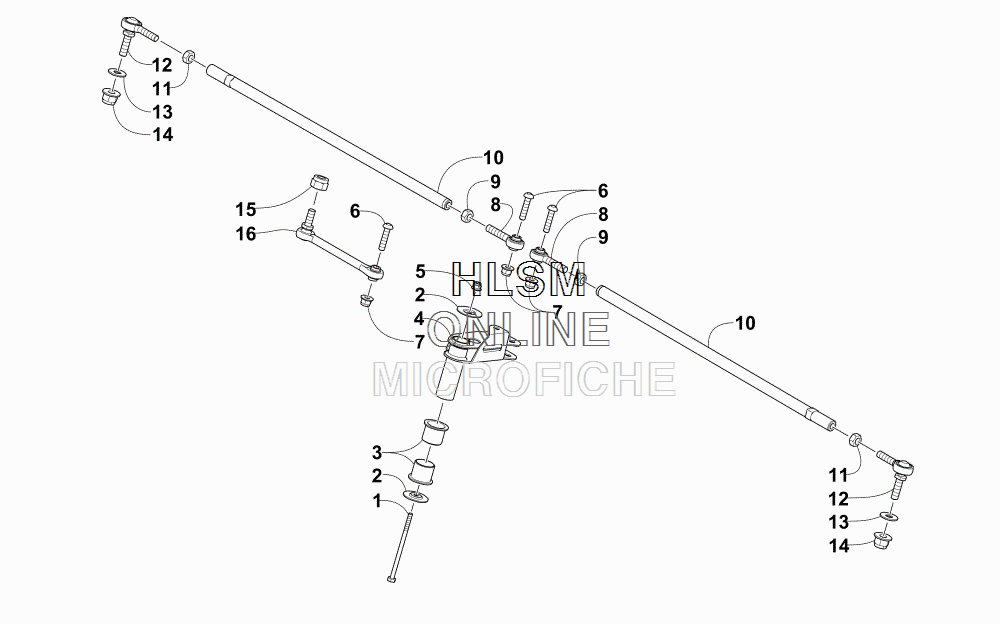

TIE ROD ASSEMBLY для Arctic Cat XF 8000 CROSS-COUNTRY LTD 141 (INTERNATIONAL) (ORANGE) [S2015X8HLEOSO] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/a8277387-6ba6-4d48-8484-09d4d442af0c.gif)
-
№АртикулНазвание
-
18402-600 SCREW, CAPSCREW, CAP
-
21623-807 WASHERWASHER
-
31605-161 BUSHING, PLASTIC (PFI1618-16)BUSHING, PLASTIC (PFI1618-16)
-
41705-488 BELLCRANK - PAINTED BLACKBELLCRANK - PAINTED BLACK
-
58427-602 NUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
62623-026 SCREW, MACHINE - TSPH - M8 X 1.25 X 37 - CL 12.9 MZSCREW, MACHINE - TSPH - M8 X 1.25 X 37 - CL 12.9 MZ
-
78427-802 NUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
81605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
98420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
100605-477 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
110423-013 NUT, HEX M10-1.25(LH) Z & YNUT, HEX M10-1.25(LH) Z & Y
-
121605-019 ROD END, LEFT HAND - M10 X 1.25 THD W/STUDROD END, LEFT HAND - M10 X 1.25 THD W/STUD
-
131623-803 WASHER, FLATWASHER, FLAT
-
148427-002 NUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
158422-002 NUT, HEX-THK NYL M10X1.25 CL8 Z & YNUT, HEX-THK NYL M10X1.25 CL8 Z & Y
-
161605-109 DRAGLINK, STEERING - 106 MMDRAGLINK, STEERING - 106 MM
