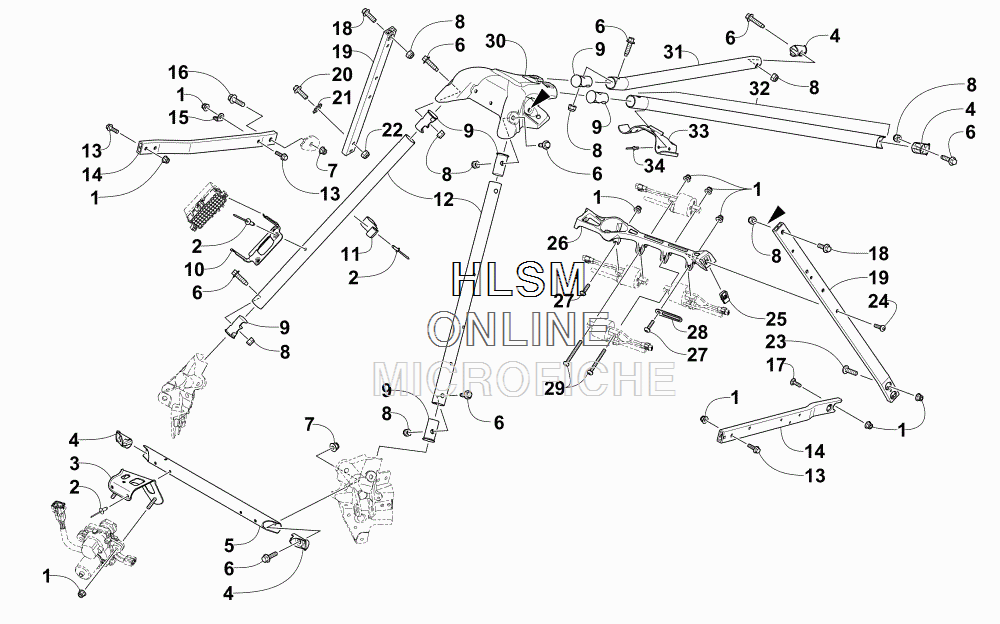

STEERING SUPPORT ASSEMBLY для Arctic Cat XF 8000 CROSS-COUNTRY LTD 141 (INTERNATIONAL) (ORANGE) [S2015X8HLEOSO] - 2015 года выпуска
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
28060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
34706-845 BRACKET, MOUNTING - SERVOMOTORBRACKET, MOUNTING - SERVOMOTOR
-
41607-002 INSERTINSERT
-
51707-582 SUPPORT, SHOCK MOUNT BRACKETSUPPORT, SHOCK MOUNT BRACKET
-
61623-982 SCREW, CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPTSCREW, CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPT
-
78427-802 NUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
88422-802 NUT, HEX-THK NYL M8X1.25 CL8 Z & YNUT, HEX-THK NYL M8X1.25 CL8 Z & Y
-
91607-094 INSERTINSERT
-
100645-653 BRACKET, MOUNTING - FUSE BLOCKBRACKET, MOUNTING - FUSE BLOCK
-
111623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
122707-424 SPAR, FRONT - BLACKSPAR, FRONT - BLACK
-
138408-630 SCREW, CAP-HFH M6X1.0X30 CL8.8 Z & YSCREW, CAP-HFH M6X1.0X30 CL8.8 Z & Y
-
140607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
141607-368 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
152612-707 TAB, SPRINGTAB, SPRING
-
168408-885 SCREW, CAP-HFH M8X1.25X85 CL8.8 Z & YSCREW, CAP-HFH M8X1.25X85 CL8.8 Z & Y
-
171623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
188408-820 SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & YSCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
-
190607-252 SUPPORT, SIDE - REAR - RIGHTSUPPORT, SIDE - REAR - RIGHT
-
191607-581 SUPPORT, SIDE - REAR - LEFTSUPPORT, SIDE - REAR - LEFT
-
208408-625 SCREW, CAP-HFH M6X1.0X25 CL8.8 Z & YSCREW, CAP-HFH M6X1.0X25 CL8.8 Z & Y
-
218053-212 WASHER, LOCKWASHER, LOCK
-
228422-602 NUT, LOCKNUT, LOCK
-
238476-616 SCREW, MACH-TSTRH M6X1.0X16 Z & YSCREW, MACH-TSTRH M6X1.0X16 Z & Y
-
248476-626 SCREW, MACH-TSTRH M6X1.0X25 Z & Y W/2353SCREW, MACH-TSTRH M6X1.0X25 Z & Y W/2353
-
250423-577 CLIP, U-NUTCLIP, U-NUT
-
260708-626 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
278468-640 SCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLK
-
281623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLECLAMP, WIRE - 76.14MM LG W/6.25 HOLE
-
298468-665 SCREW, MACH-TSPNH M6X1.0X65 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X65 CL8.8 BLK
-
301707-570 SUPPORT, STEERINGSUPPORT, STEERING
-
311707-566 SPAR, REAR - RIGHT - BLACKSPAR, REAR - RIGHT - BLACK
-
325706-225 BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 33-34)BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 33-34)
-
336606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE...BRACKET, HOLD-DOWN - SEAT-BASE
-
348060-484 ...RIVET, BLIND-DH SS53 ZINC...RIVET, BLIND-DH SS53 ZINC
