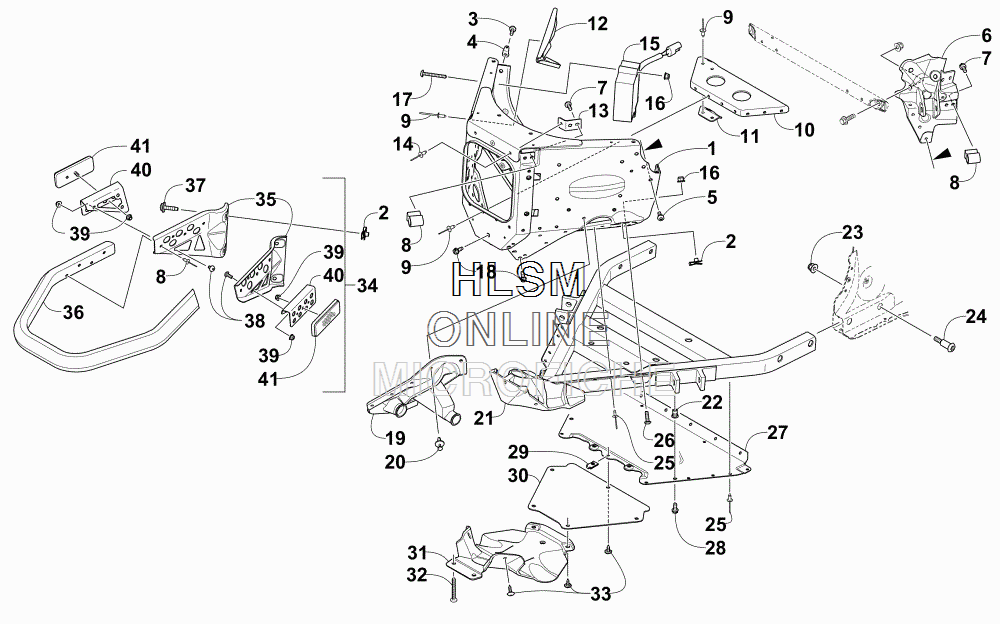

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat XF 8000 CROSS-TOUR 141 (RUSSIAN) (ORANGE) [S2015X8HCTRUO] - 2015 года выпуска
-
№АртикулНазвание
-
12707-475 PANEL,FRT-ASSY 10MM 5000/8000-PTD BLK (INC. 2-6)PANEL,FRT-ASSY 10MM 5000/8000-PTD BLK (INC. 2-6)
-
20423-577 ...CLIP, U-NUT...CLIP, U-NUT
-
31623-683 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
42612-707 ...TAB, SPRING...TAB, SPRING
-
50423-538 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
61707-668 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
-
61707-669 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
-
78413-617 SCREW, CAPSCREW, CAP
-
81607-233 BRACKET, MOUNTING - UPPER A-ARMBRACKET, MOUNTING - UPPER A-ARM
-
98060-706 ...RIVET, BLIND-DH SS64 BLK...RIVET, BLIND-DH SS64 BLK
-
101607-565 BRACKET, REINFORCEMENT LOWERBRACKET, REINFORCEMENT LOWER
-
111607-566 BRACE, STEERING POST LOWERBRACE, STEERING POST LOWER
-
120607-991 BRACKET, STEERING STOPBRACKET, STEERING STOP
-
131607-561 GUSSET, A-ARM MOUNTING BRACKETGUSSET, A-ARM MOUNTING BRACKET
-
141623-241 RIVET, 3/16 HUCK-M6RIVET, 3/16 HUCK-M6
-
150630-322 REGULATOR/RECTIFIER - ELECTRIC STARTREGULATOR/RECTIFIER - ELECTRIC START
-
168427-602 NUT, LOCKNUT, LOCK
-
178477-650 SCREW, MACHINESCREW, MACHINE
-
181623-959 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
191605-028 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
191605-029 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
200623-362 CLIP, RETAININGCLIP, RETAINING
-
211707-844 FRAME, LOWER - 2-STROKE - WELDMENTFRAME, LOWER - 2-STROKE - WELDMENT
-
221623-797 INSERTINSERT
-
238427-802 NUT, LOCKNUT, LOCK
-
241623-817 SCREW, SHOULDERSCREW, SHOULDER
-
258060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
268468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
270607-983 BELLY PAN - CENTERBELLY PAN - CENTER
-
288476-520 SCREW, MACH-TSTRH M5X0.8X20 Z & YSCREW, MACH-TSTRH M5X0.8X20 Z & Y
-
291623-052 CLIP, U-NUTCLIP, U-NUT
-
301607-063 PANEL, ACCESSPANEL, ACCESS
-
316606-614 BELLY PAN - FRONTBELLY PAN - FRONT
-
321623-929 SCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & BSCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & B
-
331623-129 SCREW, SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW, SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
341707-598 BUMPER, FRONT - ASSEMBLY - ORANGE (INC. EIGHT NO. 9 AND 35-36)BUMPER, FRONT - ASSEMBLY - ORANGE (INC. EIGHT NO. 9 AND 35-36)
-
351707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
-
351707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
-
361707-580 ...BUMPER, FRONT - ORANGE...BUMPER, FRONT - ORANGE
-
370423-609 SCREW, MACHINESCREW, MACHINE
-
388476-512 SCREW, MACHINESCREW, MACHINE
-
398427-502 NUT, LOCKNUT, LOCK
-
405706-882 BRACKET, MOUNTING - REFLECTOR - RIGHTBRACKET, MOUNTING - REFLECTOR - RIGHT
-
405706-883 BRACKET, MOUNTING - REFLECTOR - LEFTBRACKET, MOUNTING - REFLECTOR - LEFT
-
416606-819 REFLECTOR - AMBERREFLECTOR - AMBER
