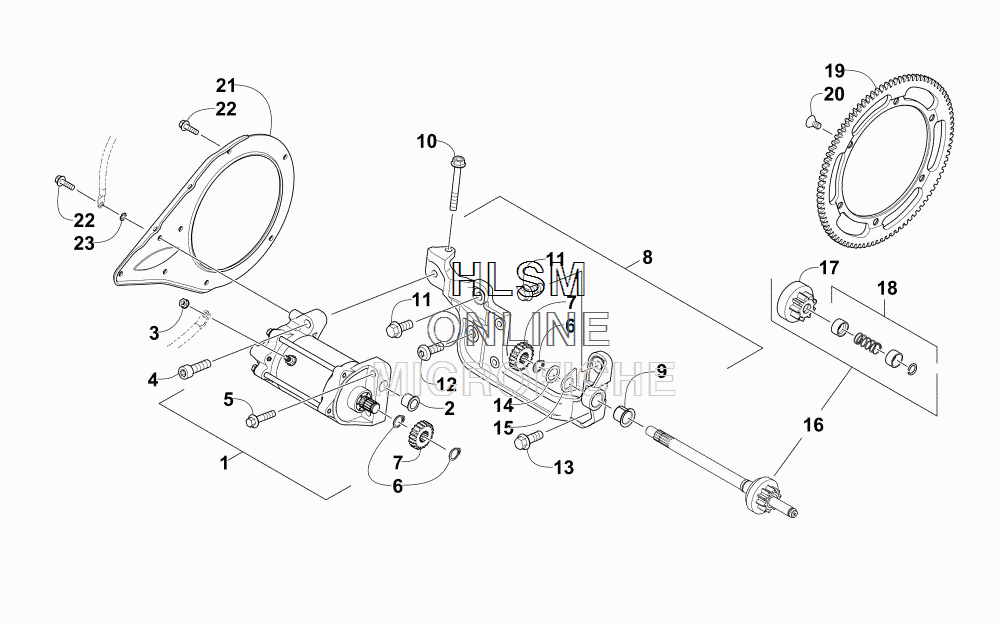

STARTER MOTOR ASSEMBLY для Arctic Cat XF 8000 CROSS-TOUR 141 (RUSSIAN) (ORANGE) [S2015X8HCTRUO] - 2015 года выпуска
-
№АртикулНазвание
-
10745-370 MOTOR, STARTER (INC. 2)MOTOR, STARTER (INC. 2)
-
20645-108 ...BUSHING...BUSHING
-
30623-038 NUT W/WASHERNUT W/WASHER
-
41423-093 SCREW, CAP-HSH M10 X 1.25 X 35SCREW, CAP-HSH M10 X 1.25 X 35
-
58408-836 SCREW, CAP-HFH M8X1.25X35 CL8.8 W/2353SCREW, CAP-HFH M8X1.25X35 CL8.8 W/2353
-
60645-638 RING, SNAPRING, SNAP
-
70645-678 GEAR,STARTER-20T-9.52MMGEAR,STARTER-20T-9.52MM
-
80745-400 BRACKET, MOUNTING - STARTER MOTOR (INC. 9)BRACKET, MOUNTING - STARTER MOTOR (INC. 9)
-
90645-749 ...BUSHING...BUSHING
-
101623-945 SCREW, CAP-HFH-M8X1.25X65 CL 10.9SCREW, CAP-HFH-M8X1.25X65 CL 10.9
-
118409-026 SCREW, CAP-HFH M10X1.25X25 CL10.9 W/2353SCREW, CAP-HFH M10X1.25X25 CL10.9 W/2353
-
121623-963 SCREW, MACH-TSTRH M10X1.25X30 Z & Y/CL 10.9SCREW, MACH-TSTRH M10X1.25X30 Z & Y/CL 10.9
-
138409-031 SCREW, CAP-HFH M10X1.25X30 CL10.9 W/2353SCREW, CAP-HFH M10X1.25X30 CL10.9 W/2353
-
140645-752 WASHER, THRUSTWASHER, THRUST
-
150645-780 WASHER,THRUST-16.6ID X 33.3 OD X 2.66MMWASHER,THRUST-16.6ID X 33.3 OD X 2.66MM
-
160745-405 SHAFT, PINION - ASSEMBLY (INC. 17-18)SHAFT, PINION - ASSEMBLY (INC. 17-18)
-
170645-686 ...GEAR, PINION...GEAR, PINION
-
180745-398 ...PINION STOPPER ASSEMBLY...PINION STOPPER ASSEMBLY
-
190745-402 RING GEAR, ELECTRIC START - TREATEDRING GEAR, ELECTRIC START - TREATED
-
201623-821 SCREW, MACH-TSFH M8X1.25X14 CL10.9Z & YSCREW, MACH-TSFH M8X1.25X14 CL10.9Z & Y
-
210645-694 PLATE, RETAINING - STARTER MOTORPLATE, RETAINING - STARTER MOTOR
-
228408-621 SCREW, CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353SCREW, CAP-HFH M6X1.0X20 CL8.8 Z & Y W/2353
-
238053-242 WASHER, EXTERNAL TOOTH LOCK - 5/16 (AZ & Y)WASHER, EXTERNAL TOOTH LOCK - 5/16 (AZ & Y)
