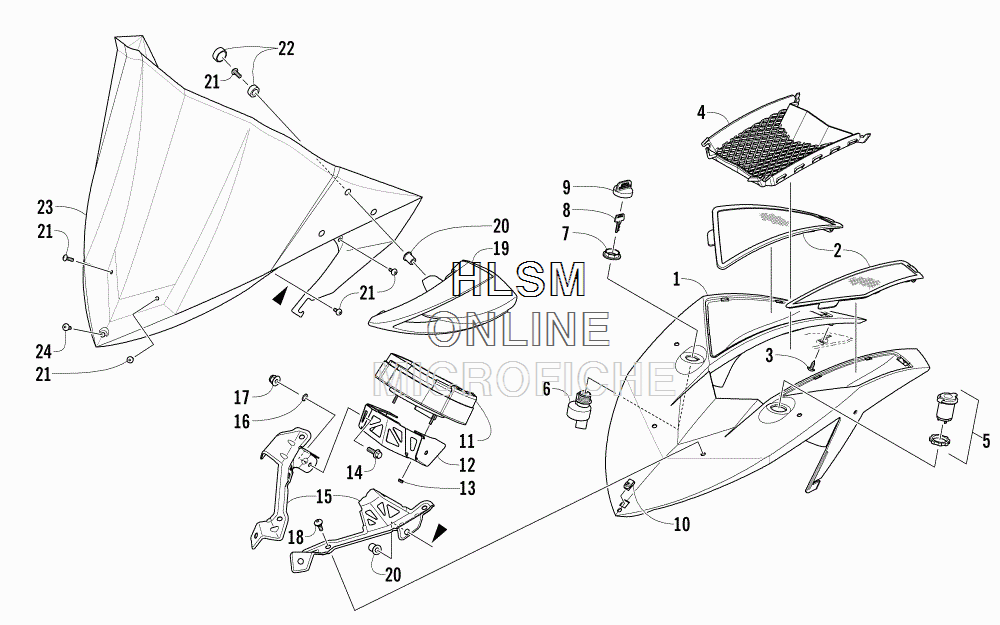

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat XF 8000 CROSS-TOUR 141 (RUSSIAN) (ORANGE) [S2015X8HCTRUO] - 2015 года выпуска
-
№АртикулНазвание
-
15706-535 POD, INSTRUMENT - ORANGEPOD, INSTRUMENT - ORANGE
-
20608-736 SCREEN, INTAKE - INJECTION MOLD - RIGHTSCREEN, INTAKE - INJECTION MOLD - RIGHT
-
20608-737 SCREEN, INTAKE - INJECTION MOLD - LEFTSCREEN, INTAKE - INJECTION MOLD - LEFT
-
31623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
46606-556 VENTVENT
-
50641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
60609-910 SWITCH, IGNITION (INC. 7-9)SWITCH, IGNITION (INC. 7-9)
-
70430-050 ...NUT, FLANGE - IGNITION SWITCH...NUT, FLANGE - IGNITION SWITCH
-
80430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
80430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
90430-054 ...COVER, KEY...COVER, KEY
-
101623-637 CLIP, U-NUTCLIP, U-NUT
-
110620-391 SPEEDO/TACH-PREMIUM-CALIB (XF/M)SPEEDO/TACH-PREMIUM-CALIB (XF/M)
-
125706-252 BRACKET, SPEEDOMETER GAUGE - CENTER - BLACKBRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
-
130423-493 NUT W/WASHERNUT W/WASHER
-
148410-616 SCREW, CAPSCREW, CAP
-
155706-250 BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACKBRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
-
155706-251 BRACKET, SPEEDOMETER GAUGE - LEFT - BLACKBRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
-
168053-212 WASHER, LOCKWASHER, LOCK
-
178427-602 NUT, LOCKNUT, LOCK
-
180423-355 SCREW, SHOULDERSCREW, SHOULDER
-
196639-629 MIRROR KIT - SINGLE (INC. SIX NO. 20-22)MIRROR KIT - SINGLE (INC. SIX NO. 20-22)
-
196639-630 MIRROR KIT - PAIR (INC. SIX NO. 20-22)MIRROR KIT - PAIR (INC. SIX NO. 20-22)
-
201623-764 ...NUT, EXPANSION...NUT, EXPANSION
-
218477-516 ...SCREW, MACHINE...SCREW, MACHINE
-
220124-054 ...CAP, SNAP W/ WASHER...CAP, SNAP W/ WASHER
-
236606-514 WINDSHIELD, MID CRUISER W/ HOLESWINDSHIELD, MID CRUISER W/ HOLES
-
248477-510 SCREW, MACHINE - TSTRH M5 X 0.8 X 10SCREW, MACHINE - TSTRH M5 X 0.8 X 10
