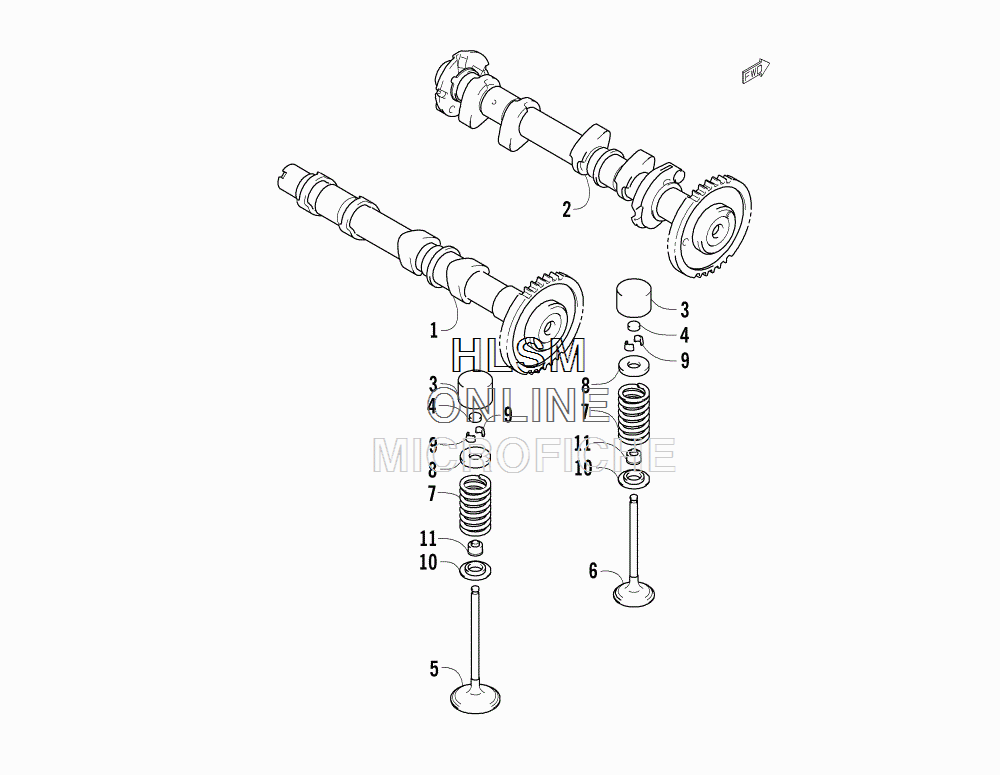

CAMSHAFT/VALVE ASSEMBLY для Arctic Cat ZR 5000 LXR EARLY BUILD (GREEN) [S2015ZRNLXUSG] - 2015 года выпуска
-
№АртикулНазвание
-
13007-150 CAMSHAFT, INTAKECAMSHAFT, INTAKE
-
23007-506 CAMSHAFT, EXHAUSTCAMSHAFT, EXHAUST
-
33402-851 TAPPETTAPPET
-
43402-852 SHIM, TAPPET - (2.30 MM)SHIM, TAPPET - (2.30 MM)
-
43402-853 SHIM, TAPPET - (2.35 MM)SHIM, TAPPET - (2.35 MM)
-
43402-854 SHIM, TAPPET - (2.40 MM)SHIM, TAPPET - (2.40 MM)
-
43402-855 SHIM, TAPPET - (2.45 MM)SHIM, TAPPET - (2.45 MM)
-
43402-856 SHIM, TAPPET - (2.50 MM)SHIM, TAPPET - (2.50 MM)
-
43402-857 SHIM, TAPPET - (2.55 MM)SHIM, TAPPET - (2.55 MM)
-
43402-858 SHIM, TAPPET - (2.60 MM)SHIM, TAPPET - (2.60 MM)
-
43402-859 SHIM, TAPPET - (2.65 MM)SHIM, TAPPET - (2.65 MM)
-
43402-860 SHIM, TAPPET - (2.70 MM)SHIM, TAPPET - (2.70 MM)
-
43402-861 SHIM, TAPPET - (2.75 MM)SHIM, TAPPET - (2.75 MM)
-
43402-862 SHIM, TAPPET - (2.80 MM)SHIM, TAPPET - (2.80 MM)
-
43402-863 SHIM, TAPPET - (2.85 MM)SHIM, TAPPET - (2.85 MM)
-
43402-864 SHIM, TAPPET - (2.90 MM)SHIM, TAPPET - (2.90 MM)
-
43402-865 SHIM, TAPPET - (2.95 MM)SHIM, TAPPET - (2.95 MM)
-
43402-866 SHIM, TAPPET - (3.00 MM)SHIM, TAPPET - (3.00 MM)
-
43402-867 SHIM, TAPPET - (3.05 MM)SHIM, TAPPET - (3.05 MM)
-
43402-868 SHIM, TAPPET - (3.10 MM)SHIM, TAPPET - (3.10 MM)
-
43402-869 SHIM, TAPPET - (3.15 MM)SHIM, TAPPET - (3.15 MM)
-
43402-870 SHIM, TAPPET - (3.20 MM)SHIM, TAPPET - (3.20 MM)
-
43402-871 SHIM, TAPPET - (3.25 MM)SHIM, TAPPET - (3.25 MM)
-
43402-872 SHIM, TAPPET - (3.30 MM)SHIM, TAPPET - (3.30 MM)
-
43402-873 SHIM, TAPPET - (3.35 MM)SHIM, TAPPET - (3.35 MM)
-
43402-874 SHIM, TAPPET - (3.40 MM)SHIM, TAPPET - (3.40 MM)
-
43402-875 SHIM, TAPPET - (3.45 MM)SHIM, TAPPET - (3.45 MM)
-
43402-876 SHIM, TAPPET - (3.50 MM)SHIM, TAPPET - (3.50 MM)
-
53007-152 VALVE, INTAKEVALVE, INTAKE
-
63007-860 VALVE, EXHAUSTVALVE, EXHAUST
-
73007-625 VALVE SPRINGVALVE SPRING
-
83007-626 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
90693-281 COTTER, VALVECOTTER, VALVE
-
103007-156 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
113402-226 SEAL, VALVE STEMSEAL, VALVE STEM
