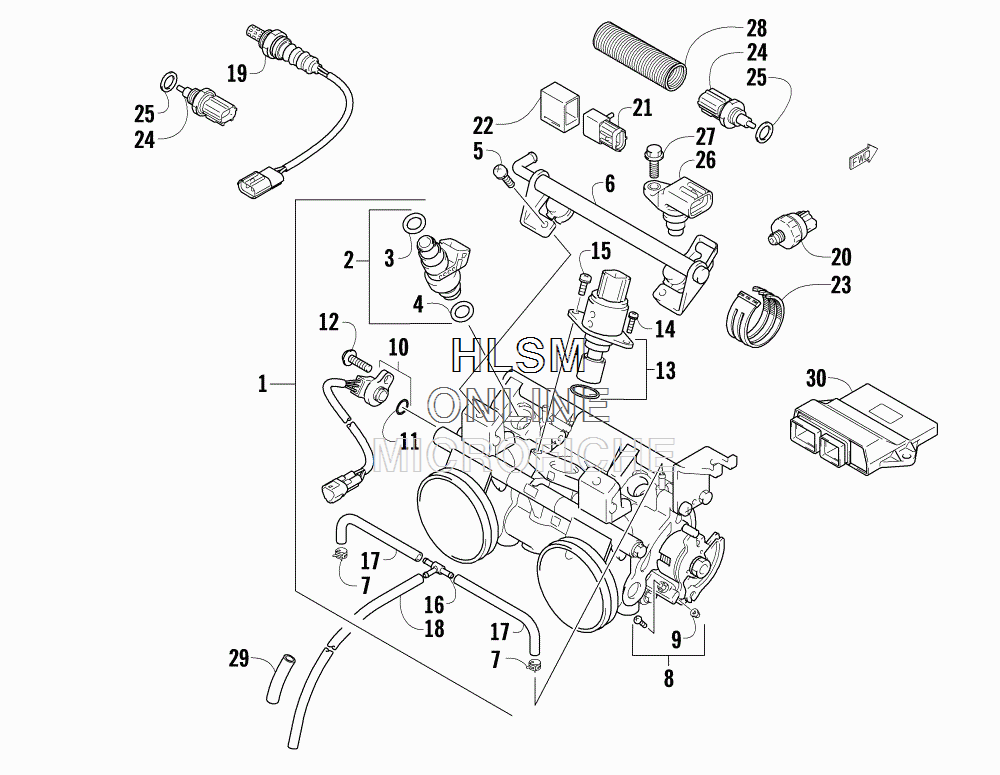

THROTTLE BODY ASSEMBLY для Arctic Cat ZR 5000 LXR EARLY BUILD (GREEN) [S2015ZRNLXUSG] - 2015 года выпуска
-
№АртикулНазвание
-
13007-858 BODY, THROTTLE - ASSEMBLY (INC. 2-18)BODY, THROTTLE - ASSEMBLY (INC. 2-18)
-
23007-194 ...INJECTOR, FUEL - ASSEMBLY (INC. 3-4)...INJECTOR, FUEL - ASSEMBLY (INC. 3-4)
-
33007-195 ......O-RING......O-RING
-
43007-196 ......O-RING......O-RING
-
53007-197 ...SCREW, MACHINE...SCREW, MACHINE
-
63007-198 ...RAIL, FUEL...RAIL, FUEL
-
73007-199 ...CLAMP, HOSE...CLAMP, HOSE
-
83007-200 ...SCREW, STOP (INC. 9)...SCREW, STOP (INC. 9)
-
93007-201 ......NUT......NUT
-
103007-859 ...SENSOR ASSY,THROTTLE (INC. 11)...SENSOR ASSY,THROTTLE (INC. 11)
-
113007-203 ......O-RING......O-RING
-
123007-204 ...SCREW, MACHINE...SCREW, MACHINE
-
133007-205 ...VALVE, ISC - KIT...VALVE, ISC - KIT
-
143007-206 ...SCREW, MACHINE...SCREW, MACHINE
-
153007-207 ...SCREW, MACHINE...SCREW, MACHINE
-
163007-208 ...FITTING...FITTING
-
173007-209 ...HOSE...HOSE
-
183007-210 ...HOSE...HOSE
-
193006-588 SENSOR, OXYGENSENSOR, OXYGEN
-
203006-844 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
213007-517 SENSOR, BOOST/AIR PRESSURE (INC. 22)SENSOR, BOOST/AIR PRESSURE (INC. 22)
-
223007-213 ...COVER...COVER
-
230623-540 TIE, CABLE - TRIPLETIE, CABLE - TRIPLE
-
243007-060 SENSORSENSOR
-
253530-047 GASKETGASKET
-
263007-216 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
273007-392 BOLTBOLT
-
283007-218 PROTECTOR, SENSORPROTECTOR, SENSOR
-
291619-348 CONDUIT - (5/16 IN. X 5 FT)CONDUIT - (5/16 IN. X 5 FT)
-
300730-154 ECMECM
