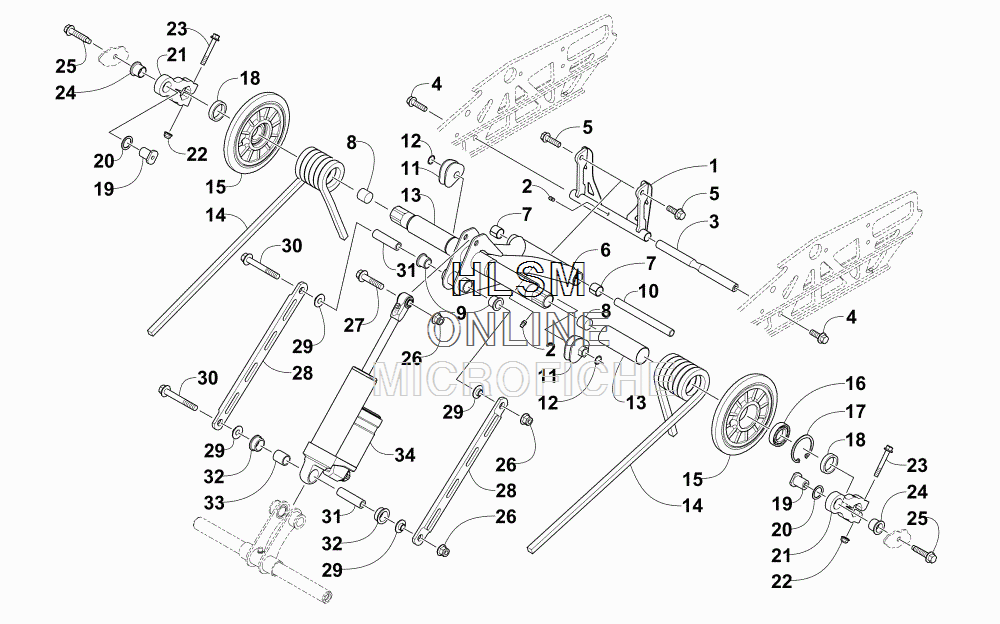

SUSPENSION REAR - REAR ARM ASSEMBLY для Arctic Cat ZR 6000 R SX (GREEN) [S2015ACDPRUSG] - 2015 года выпуска
-
№АртикулНазвание
-
12704-320 ARM, REAR - BLACK (INC. ONE NO. 2)ARM, REAR - BLACK (INC. ONE NO. 2)
-
21623-010 ......FITTING, GREASE......FITTING, GREASE
-
33604-965 AXLEAXLE
-
48408-031 SCREW, CAPSCREW, CAP
-
58408-041 SCREW, CAPSCREW, CAP
-
62704-533 ARM, IDLER - BLACK (INC. 7-9 AND ONE NO. 2)ARM, IDLER - BLACK (INC. 7-9 AND ONE NO. 2)
-
72603-481 ...BEARING...BEARING
-
83604-955 ...INSERT...INSERT
-
90104-386 ...BUSHING...BUSHING
-
103604-638 AXLEAXLE
-
111604-204 BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)
-
111604-205 BLOCK, SPRING ADJUSTER - LEFT - (BLACK)BLOCK, SPRING ADJUSTER - LEFT - (BLACK)
-
120623-138 RING, RETAININGRING, RETAINING
-
133604-819 SLEEVE, SPRINGSLEEVE, SPRING
-
142704-380 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
142704-381 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
153604-616 WHEEL, IDLER (INC. 16-17)WHEEL, IDLER (INC. 16-17)
-
163604-257 ...BEARING...BEARING
-
173604-256 ...RING, RETAINING...RING, RETAINING
-
183604-289 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
193604-979 AXLE, OFFSET ARM - M10AXLE, OFFSET ARM - M10
-
203604-930 WASHERWASHER
-
212704-545 PIVOT - IDLER ARM (INC. 22-24)PIVOT - IDLER ARM (INC. 22-24)
-
228427-802 ...NUT, LOCK...NUT, LOCK
-
238409-860 ...SCREW, CAP...SCREW, CAP
-
243604-713 ...BUSHING, FLARED...BUSHING, FLARED
-
252623-002 SCREW, CAPSCREW, CAP
-
268427-002 NUT, LOCKNUT, LOCK
-
278408-045 SCREW, CAPSCREW, CAP
-
282704-230 LINK, SHOCK (INC. 29)LINK, SHOCK (INC. 29)
-
293604-266 ...INSERT, RAIL...INSERT, RAIL
-
308408-090 SCREW, CAPSCREW, CAP
-
313604-694 AXLEAXLE
-
323604-804 BUSHINGBUSHING
-
333604-802 SLEEVESLEEVE
-
342704-638 SHOCK ABSORBERSHOCK ABSORBER
