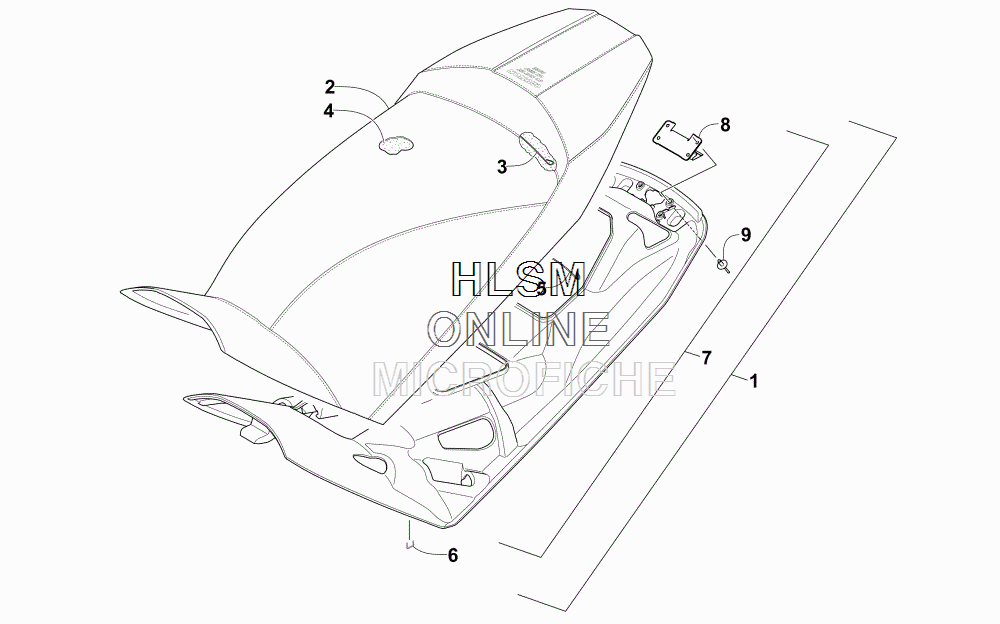

SEAT ASSEMBLY для Arctic Cat ZR 7000 SNO PRO (ORANGE) [S2015ZRUSPUSO] - 2015 года выпуска
-
№АртикулНазвание
-
15706-507 COMPLETE SEAT ASSEMBLY - (GREEN) (INC. 2-9)COMPLETE SEAT ASSEMBLY - (GREEN) (INC. 2-9)
-
25706-512 ...COVER, SEAT - (GREEN) (INC. 3)...COVER, SEAT - (GREEN) (INC. 3)
-
33606-369 ......WIRE, SEAT......WIRE, SEAT
-
40717-214 ...FOAM, SEAT...FOAM, SEAT
-
56606-461 ...WIRE, SEAT - (3.048 DIA X 279.4 MM)...WIRE, SEAT - (3.048 DIA X 279.4 MM)
-
60624-528 ...STAPLE...STAPLE
-
75706-770 ...SEAT BASE (INC. 8-9)...SEAT BASE (INC. 8-9)
-
86606-833 ......LATCH, SEAT......LATCH, SEAT
-
98061-708 ......RIVET......RIVET
