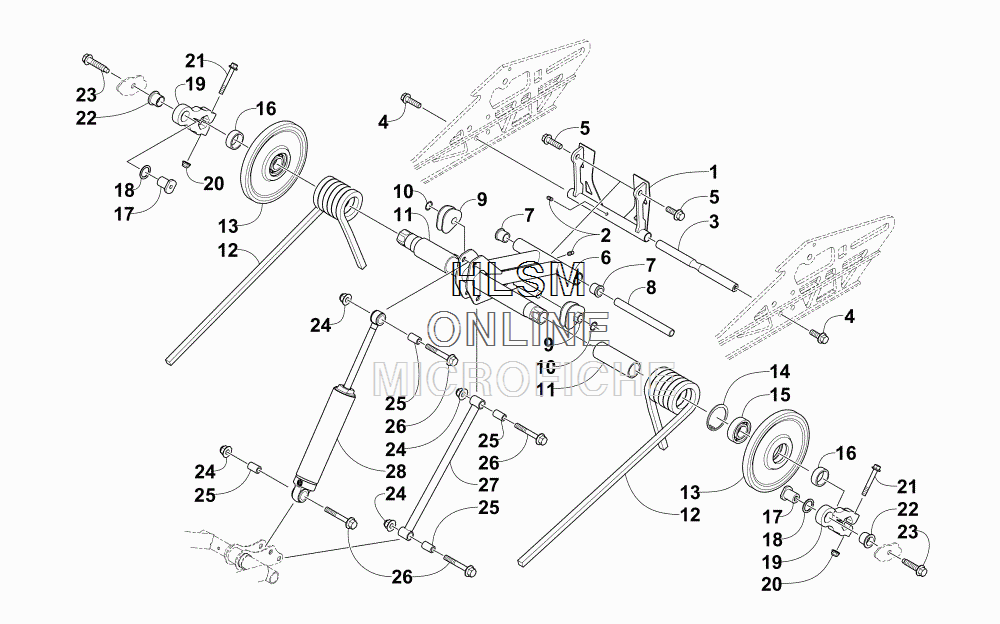

SUSPENSION REAR - REAR ARM ASSEMBLY для Arctic Cat ZR 7000 SNO PRO (ORANGE) [S2015ZRUSPUSO] - 2015 года выпуска
-
№АртикулНазвание
-
12704-389 ARM, REAR - (BLACK) (INC. ONE NO. 2)ARM, REAR - (BLACK) (INC. ONE NO. 2)
-
21623-010 ......FITTING, GREASE......FITTING, GREASE
-
33604-965 AXLEAXLE
-
48413-031 SCREW, CAPSCREW, CAP
-
58413-041 SCREW, CAPSCREW, CAP
-
62704-002 ARM, IDLER - (BLACK) (INC. 7 AND ONE NO. 2)ARM, IDLER - (BLACK) (INC. 7 AND ONE NO. 2)
-
71604-100 ...BUSHING, FLARED...BUSHING, FLARED
-
83604-276 AXLEAXLE
-
91604-204 BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)
-
91604-205 BLOCK, SPRING ADJUSTER - LEFT - (BLACK)BLOCK, SPRING ADJUSTER - LEFT - (BLACK)
-
100623-138 RING, RETAININGRING, RETAINING
-
113604-288 SLEEVE, SPRING - (108MM)SLEEVE, SPRING - (108MM)
-
121704-576 SPRING, SUSPENSION - RIGHT - (18.5 LB) - (BLACK)SPRING, SUSPENSION - RIGHT - (18.5 LB) - (BLACK)
-
121704-577 SPRING, SUSPENSION - LEFT - (18.5 LB) - (BLACK)SPRING, SUSPENSION - LEFT - (18.5 LB) - (BLACK)
-
133604-264 WHEEL, IDLER (NO INSERT/30MM BEARING) - (INC. 14-15)WHEEL, IDLER (NO INSERT/30MM BEARING) - (INC. 14-15)
-
143604-257 ...BEARING - (30MM)...BEARING - (30MM)
-
153604-256 ...RING, RETAINING...RING, RETAINING
-
163604-674 SPACER, PIVOT - IDLER ARM - (12.81MM)SPACER, PIVOT - IDLER ARM - (12.81MM)
-
173604-979 AXLE, OFFSET ARM - M10AXLE, OFFSET ARM - M10
-
183604-930 WASHERWASHER
-
192704-477 PIVOT - IDLER ARM (INC. 20-22)PIVOT - IDLER ARM (INC. 20-22)
-
208427-802 ...NUT, LOCK...NUT, LOCK
-
218408-860 ...SCREW, CAP...SCREW, CAP
-
223604-713 ...BUSHING, FLARED...BUSHING, FLARED
-
232623-002 SCREW, CAPSCREW, CAP
-
248427-002 NUT, LOCKNUT, LOCK
-
253604-109 SLEEVE - (10MM ID)SLEEVE - (10MM ID)
-
268408-045 SCREW, CAPSCREW, CAP
-
271704-686 LINK, SHOCK - (BLACK)LINK, SHOCK - (BLACK)
-
282704-685 SHOCK, REAR ARMSHOCK, REAR ARM
