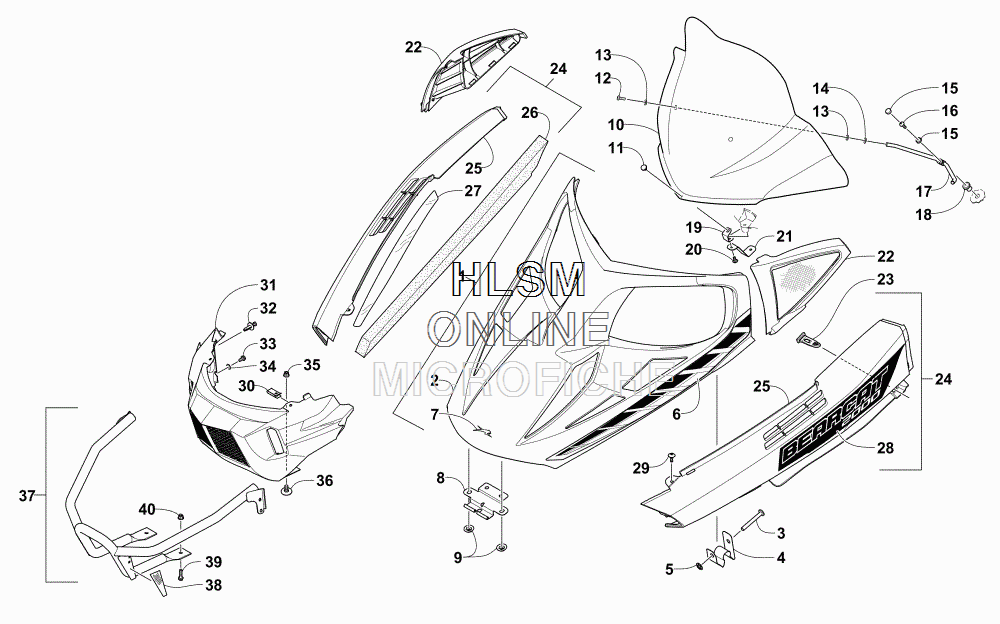

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE INTERNATIONAL [S2016BCDWTOSL] - 2016 года выпуска

№

Артикул

Название
1

4718-854 HOOD W/DECALS - WHITE (INC. 2-7)

HOOD W/DECALS - WHITE (INC. 2-7)

31 400 ₽
2

7800-956 ...HOOD W/O DECALS - WHITE (INC. 3-5)

...HOOD W/O DECALS - WHITE (INC. 3-5)

27 870 ₽
3

1623-610 ......PIN, RETAINING

......PIN, RETAINING

3 320 ₽
4

5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT

......CLIP, HOOD HOLD-DOWN - RIGHT

2 280 ₽
4

5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT

......CLIP, HOOD HOLD-DOWN - LEFT

2 280 ₽
5

1623-409 ......NUT, PUSH

......NUT, PUSH

170 ₽
6

2621-780 ...DECAL, HOOD - RIGHT

...DECAL, HOOD - RIGHT

3 320 ₽
6

2621-781 ...DECAL, HOOD - LEFT

...DECAL, HOOD - LEFT

3 320 ₽
7

4411-479 ...DECAL, AIRCAT

...DECAL, AIRCAT

810 ₽
8

6606-027 BRACKET, HINGE

BRACKET, HINGE

3 110 ₽
9

1623-469 NUT, STAMPED

NUT, STAMPED

190 ₽
10

6606-278 WINDSHIELD

WINDSHIELD

47 830 ₽
11

1623-677 RIVET, PLASTIC

RIVET, PLASTIC

210 ₽
12

1623-902 SCREW, MACHINE

SCREW, MACHINE

880 ₽
13

1623-837 WASHER, RUBBER

WASHER, RUBBER

1 380 ₽
14

8050-242 WASHER

WASHER

310 ₽
15

0124-054 CAP, SNAP - WASHER

CAP, SNAP - WASHER

190 ₽
16

0623-121 SCREW, MACHINE

SCREW, MACHINE

730 ₽
17

5706-073 SUPPORT, WINDSHIELD

SUPPORT, WINDSHIELD

2 280 ₽
18

0623-845 NUT, EXPANSION

NUT, EXPANSION

380 ₽
19

4606-961 BRACKET, WINDSHIELD - HOLD-DOWN

BRACKET, WINDSHIELD - HOLD-DOWN

2 700 ₽
20

1623-129 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
21

5606-277 BRACKET, WINDSHIELD

BRACKET, WINDSHIELD

4 570 ₽
22

5606-940 BEZEL, INTAKE - RIGHT - WHITE

BEZEL, INTAKE - RIGHT - WHITE

8 110 ₽
22

5606-941 BEZEL, INTAKE - LEFT - WHITE

BEZEL, INTAKE - LEFT - WHITE

8 110 ₽
23

4606-926 STRAP, HOLD-DOWN

STRAP, HOLD-DOWN

710 ₽
24

4718-852 SPAR, FRONT - W/DECALS - RIGHT - BLUE (INC. 25-28)

SPAR, FRONT - W/DECALS - RIGHT - BLUE (INC. 25-28)

15 800 ₽
24

4718-853 SPAR, FRONT - W/DECALS - LEFT - BLUE (INC. 25-26 AND 28)

SPAR, FRONT - W/DECALS - LEFT - BLUE (INC. 25-26 AND 28)

12 890 ₽
25

3718-886 ...SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 26)

...SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 26)

14 760 ₽
25

3718-887 ...SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 26)

...SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 26)

14 760 ₽
26

0617-656 ......FOAM, FRONT SPAR - RIGHT

......FOAM, FRONT SPAR - RIGHT

2 700 ₽
26

0617-657 ......FOAM, FRONT SPAR - LEFT

......FOAM, FRONT SPAR - LEFT

2 700 ₽
27

4606-934 FOIL, SPAR - RIGHT

FOIL, SPAR - RIGHT

340 ₽
28

2621-788 DECAL, FRONT SPAR - RIGHT

DECAL, FRONT SPAR - RIGHT

1 660 ₽
28

2621-789 DECAL, FRONT SPAR - LEFT

DECAL, FRONT SPAR - LEFT

1 660 ₽
29

0623-797 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

650 ₽
30

1623-030 CLIP, U-NUT

CLIP, U-NUT

150 ₽
31

5606-725 FASCIA, FRONT - BLUE

FASCIA, FRONT - BLUE

18 510 ₽
32

0623-362 CLIP, RETAINING

CLIP, RETAINING

110 ₽
33

0623-966 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

170 ₽
34

8053-242 WASHER, EXTERNAL TOOTH LOCK

WASHER, EXTERNAL TOOTH LOCK

20 ₽
35

8427-602 NUT, LOCK

NUT, LOCK

440 ₽
36

1623-775 SCREW, SHOULDER

SCREW, SHOULDER

270 ₽
37

4706-961 BUMPER, FRONT - BLACK (INC. 38)

BUMPER, FRONT - BLACK (INC. 38)

38 680 ₽
38

9611-386 ...DECAL, REFLECTOR - RIGHT - AMBER

...DECAL, REFLECTOR - RIGHT - AMBER

3 320 ₽
38

9611-387 ...DECAL, REFLECTOR - LEFT - AMBER

...DECAL, REFLECTOR - LEFT - AMBER

3 320 ₽
39

8408-025 SCREW, CAP

SCREW, CAP

480 ₽
40

8427-002 NUT, LOCK

NUT, LOCK

150 ₽
