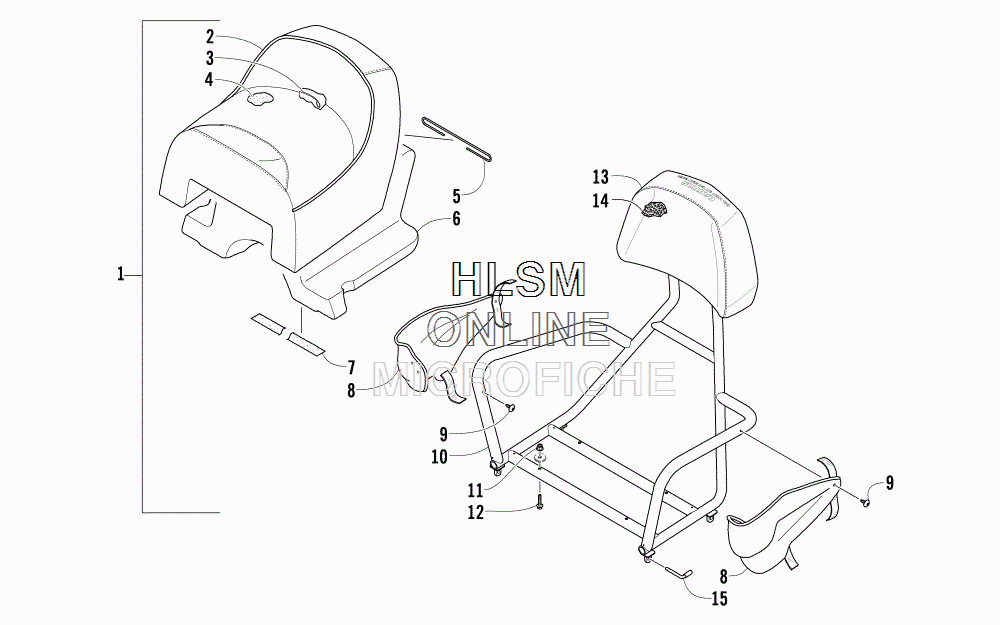

REAR PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE INTERNATIONAL [S2016BCDWTOSL] - 2016 года выпуска
-
№АртикулНазвание
-
14706-652 SEAT, PASSENGER - ASSEMBLY (INC. 2-14)SEAT, PASSENGER - ASSEMBLY (INC. 2-14)
-
24706-651 COVER, PASSENGER SEAT (INC. 3)COVER, PASSENGER SEAT (INC. 3)
-
35606-378 ...WIRE, SEAT...WIRE, SEAT
-
44706-121 FOAM, SEATFOAM, SEAT
-
55606-380 WIRE, SEATWIRE, SEAT
-
65606-278 BASE, SEATBASE, SEAT
-
76990-283 VELCRO - 6.5 FTVELCRO - 6.5 FT
-
85606-834 WINDGUARD - RIGHTWINDGUARD - RIGHT
-
85606-835 WINDGUARD - LEFTWINDGUARD - LEFT
-
91623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
104706-865 FRAME, SEATFRAME, SEAT
-
118427-602 NUT, LOCKNUT, LOCK
-
128408-640 SCREW, CAPSCREW, CAP
-
134706-250 COVER, BACKRESTCOVER, BACKREST
-
145606-718 FOAM, BACKRESTFOAM, BACKREST
-
150541-447 PINS, SPEEDRACK - SS - ASSEMBLYPINS, SPEEDRACK - SS - ASSEMBLY
