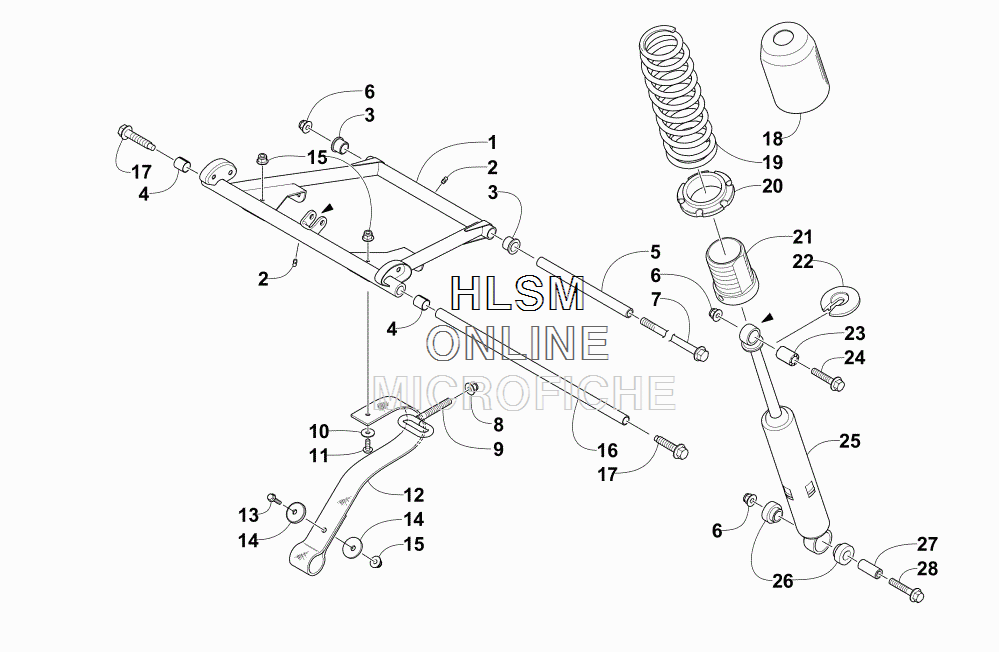

SUSPENSION REAR - FRONT ARM ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE INTERNATIONAL [S2016BCDWTOSL] - 2016 года выпуска
-
№АртикулНазвание
-
12704-019 ARM, FRONT SUSPENSION - BLACK (INC. 2-4)ARM, FRONT SUSPENSION - BLACK (INC. 2-4)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
30104-386 ...BUSHING...BUSHING
-
40603-083 ...BEARING...BEARING
-
53604-434 AXLEAXLE
-
68427-002 NUT, LOCKNUT, LOCK
-
71623-756 SCREW, CAPSCREW, CAP
-
88047-486 NUT, LOCKNUT, LOCK
-
90704-256 ADJUSTER, FRONT ARMADJUSTER, FRONT ARM
-
108450-109 WASHERWASHER
-
118476-620 SCREW, MACHINESCREW, MACHINE
-
123604-615 STRAP, LIMITER - FRONT (484 X 38 MM)STRAP, LIMITER - FRONT (484 X 38 MM)
-
138408-635 SCREW, MACHINESCREW, MACHINE
-
140623-875 WASHERWASHER
-
158427-602 NUT, LOCKNUT, LOCK
-
163604-604 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
172623-002 SCREW, CAPSCREW, CAP
-
180604-590 COVER, SHOCKCOVER, SHOCK
-
191703-072 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
200603-259 NUT, RETAINERNUT, RETAINER
-
210603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
221603-889 RETAINER, SPRINGRETAINER, SPRING
-
233604-273 AXLEAXLE
-
248408-050 SCREW, CAPSCREW, CAP
-
251604-369 SHOCK ABSORBERSHOCK ABSORBER
-
261604-384 BUSHINGBUSHING
-
272603-544 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
288408-065 SCREW, CAPSCREW, CAP
