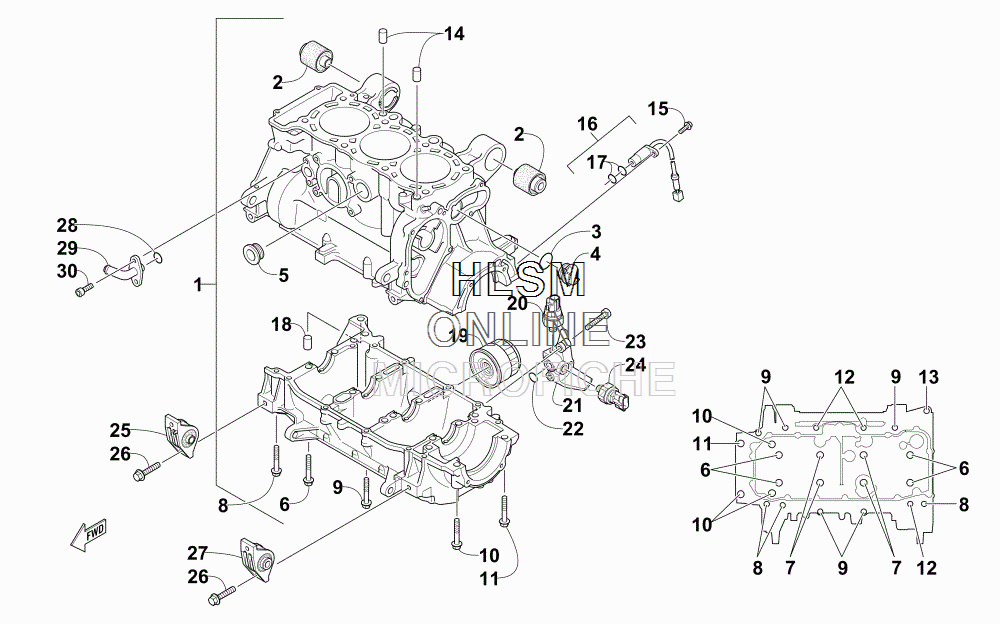

CRANKCASE ASSEMBLY для Arctic Cat PANTERA 7000 LTD EARLY BUILD [S2016PTULXEBB] - 2016 года выпуска
-
№АртикулНазвание
-
13020-138 CRANKCASE ASSEMBLY (INC. 2-7)CRANKCASE ASSEMBLY (INC. 2-7)
-
23020-139 ...MOUNT, ENGINE - REAR...MOUNT, ENGINE - REAR
-
33020-140 ...O-RING...O-RING
-
43020-141 ...PLUG...PLUG
-
53020-142 ...PLUG...PLUG
-
63020-143 ...SCREW, CAP...SCREW, CAP
-
73020-144 ...SCREW, CAP...SCREW, CAP
-
83020-145 SCREW, CAPSCREW, CAP
-
93020-146 SCREW, CAPSCREW, CAP
-
103020-147 SCREW, CAPSCREW, CAP
-
113020-148 SCREW, CAPSCREW, CAP
-
123020-149 SCREW, CAPSCREW, CAP
-
133020-150 SCREW, CAPSCREW, CAP
-
143020-151 PIN, DOWELPIN, DOWEL
-
153020-152 SCREW, CAPSCREW, CAP
-
163020-153 SENSOR, CRANKSHAFT (INC. 17)SENSOR, CRANKSHAFT (INC. 17)
-
173020-154 ...O-RING...O-RING
-
183020-155 PIN, DOWELPIN, DOWEL
-
193020-156 FILTER, OILFILTER, OIL
-
203020-157 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
213020-158 HOUSING, SENSORHOUSING, SENSOR
-
223020-159 O-RINGO-RING
-
233020-160 SCREW, CAPSCREW, CAP
-
243020-161 SENSOR, OIL PRESSURESENSOR, OIL PRESSURE
-
253020-162 MOUNT, ENGINE - FRONT - RIGHTMOUNT, ENGINE - FRONT - RIGHT
-
263020-163 SCREW, CAPSCREW, CAP
-
273020-164 MOUNT, ENGINE - FRONT - LEFTMOUNT, ENGINE - FRONT - LEFT
-
283020-165 O-RINGO-RING
-
293020-166 FITTING, ELBOWFITTING, ELBOW
-
303020-167 SCREW, CAPSCREW, CAP
