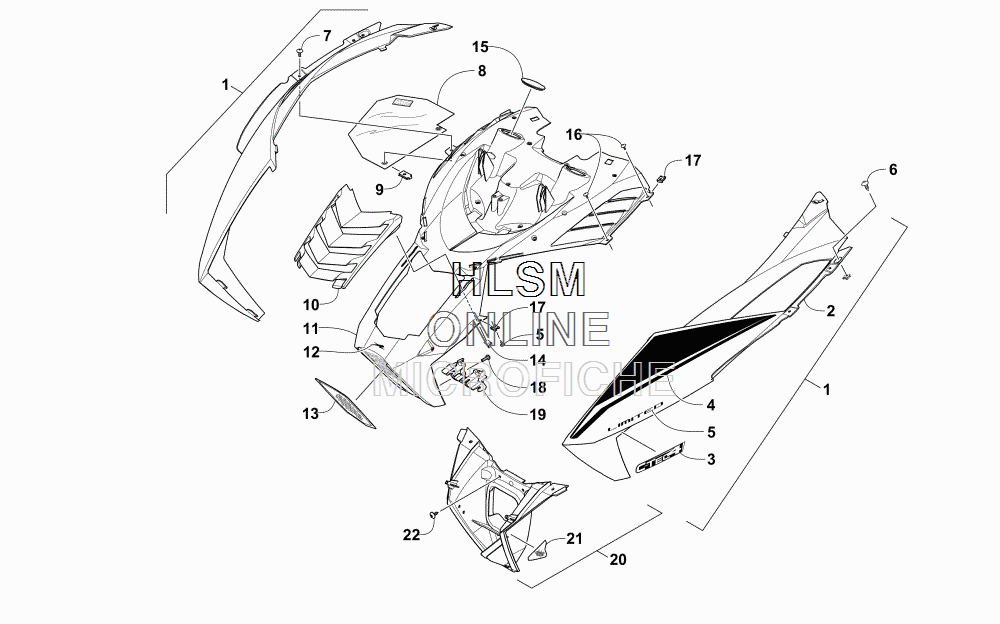

HOOD ASSEMBLY для Arctic Cat PANTERA 7000 LTD EARLY BUILD [S2016PTULXEBB] - 2016 года выпуска
-
№АртикулНазвание
-
14718-858 HOOD W/DECALS - RIGHT - BLACK (INC. 2-4 AND ONE NO. 5)HOOD W/DECALS - RIGHT - BLACK (INC. 2-4 AND ONE NO. 5)
-
14718-859 HOOD W/DECALS - LEFT - BLACK (INC. 2-4 AND ONE NO. 5)HOOD W/DECALS - LEFT - BLACK (INC. 2-4 AND ONE NO. 5)
-
26606-318 ...HOOD W/O DECALS - RIGHT - BLACK...HOOD W/O DECALS - RIGHT - BLACK
-
26606-319 ...HOOD W/O DECALS - LEFT - BLACK...HOOD W/O DECALS - LEFT - BLACK
-
30621-993 ...DECAL, HOOD - "C-TEC4"...DECAL, HOOD - "C-TEC4"
-
42621-764 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
42621-765 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
59611-796 ...DECAL, "LIMITED"...DECAL, "LIMITED"
-
60623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
71623-031 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
81712-899 SHIELD, HEAT - RIGHTSHIELD, HEAT - RIGHT
-
91623-030 CLIP, U-NUTCLIP, U-NUT
-
106606-388 GRILLE, INTERCOOLERGRILLE, INTERCOOLER
-
116606-510 PLENUM, INTAKE - UPPERPLENUM, INTAKE - UPPER
-
124411-479 DECAL, AIRCATDECAL, AIRCAT
-
130608-696 SCREEN, VENTSCREEN, VENT
-
141623-694 CLIP, RETAININGCLIP, RETAINING
-
152623-055 PLUGPLUG
-
160623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
171623-939 CLIP, U-NUTCLIP, U-NUT
-
181623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
196606-822 RETAINER, PLENUMRETAINER, PLENUM
-
205706-992 PLENUM, INTAKE - LOWER FRONT (INC. 21)PLENUM, INTAKE - LOWER FRONT (INC. 21)
-
210621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
221623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
