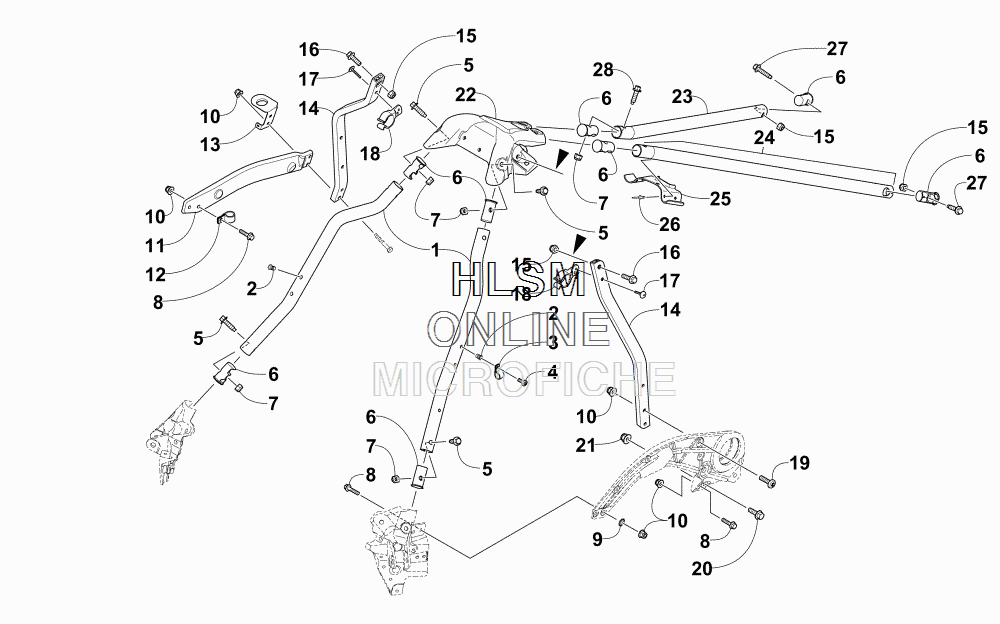

STEERING SUPPORT ASSEMBLY для Arctic Cat PANTERA 7000 LTD EARLY BUILD [S2016PTULXEBB] - 2016 года выпуска
-
№АртикулНазвание
-
12707-545 SPAR, FRONT (INC. 2)SPAR, FRONT (INC. 2)
-
21623-797 ...INSERT...INSERT
-
30423-403 CLAMP, ROUTINGCLAMP, ROUTING
-
48470-516 SCREW, MACHINESCREW, MACHINE
-
51623-836 SCREW, CAPSCREW, CAP
-
61607-187 INSERTINSERT
-
78422-002 NUT, LOCKNUT, LOCK
-
88408-625 SCREW, CAPSCREW, CAP
-
98053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
108427-602 NUT, LOCKNUT, LOCK
-
111707-584 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
120423-044 CLAMP, ROUTINGCLAMP, ROUTING
-
131712-851 BRACKET, MOUNTING - RESONATORBRACKET, MOUNTING - RESONATOR
-
141607-121 SUPPORT, SIDE - REAR - RIGHTSUPPORT, SIDE - REAR - RIGHT
-
141607-133 SUPPORT, SIDE - REAR - LEFTSUPPORT, SIDE - REAR - LEFT
-
158422-802 NUT, LOCKNUT, LOCK
-
168408-820 SCREW, CAPSCREW, CAP
-
171623-031 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180609-937 CLIP, ROUTINGCLIP, ROUTING
-
198476-630 SCREW, MACHINESCREW, MACHINE
-
208408-825 SCREW, CAPSCREW, CAP
-
218427-802 NUT, LOCKNUT, LOCK
-
222707-532 SUPPORT, STEERINGSUPPORT, STEERING
-
232707-504 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
246706-033 SPAR, REAR - LEFT (INC. 25-26)SPAR, REAR - LEFT (INC. 25-26)
-
256606-663 ...BRACKET, HOLD-DOWN - SEAT-BASE...BRACKET, HOLD-DOWN - SEAT-BASE
-
268060-482 ...RIVET...RIVET
-
271623-982 SCREW, CAPSCREW, CAP
