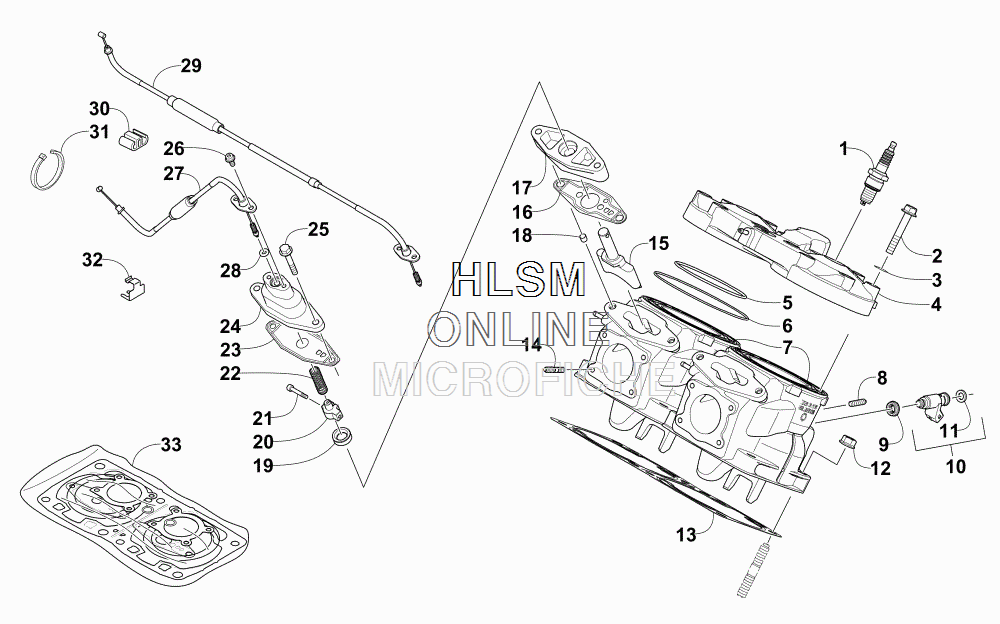

CYLINDER AND HEAD ASSEMBLY для Arctic Cat ZR 6000 LTD 129 ES GREEN [S2016ZRDLEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
10217-762 PLUG, SPARKPLUG, SPARK
-
10217-762 PLUG, SPARKPLUG, SPARK
-
20923-012 SCREW, CAPSCREW, CAP
-
30930-019 O-RINGO-RING
-
41904-001 HEAD, CYLINDERHEAD, CYLINDER
-
50930-018 O-RINGO-RING
-
60930-020 O-RINGO-RING
-
71904-005 CYLINDERCYLINDER
-
80923-046 BOLT, STUDBOLT, STUD
-
90930-032 SEAL, INJECTORSEAL, INJECTOR
-
100910-009 INJECTOR (INC. 11)INJECTOR (INC. 11)
-
110930-036 ...O-RING...O-RING
-
120923-029 NUTNUT
-
130930-049 GASKET, CYLINDERGASKET, CYLINDER
-
140923-053 BOLT, STUDBOLT, STUD
-
150909-042 VALVE, EXHAUSTVALVE, EXHAUST
-
160930-022 GASKET, EXHAUST VALVE CASEGASKET, EXHAUST VALVE CASE
-
171909-001 PLATE, EXHAUST VALVE (INC. 18-19)PLATE, EXHAUST VALVE (INC. 18-19)
-
180829-062 ...PIN, DOWEL...PIN, DOWEL
-
190930-001 ...SEAL, OIL...SEAL, OIL
-
200909-041 CLAMP, EXHAUST VALVECLAMP, EXHAUST VALVE
-
210923-005 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
220909-020 SPRINGSPRING
-
230930-010 GASKET, EXHAUST VALVE COVERGASKET, EXHAUST VALVE COVER
-
240909-018 COVER, EXHAUST VALVECOVER, EXHAUST VALVE
-
250923-021 SCREW, CAPSCREW, CAP
-
260923-002 SCREW, CAPSCREW, CAP
-
270909-019 CABLE, EXHAUST VALVE - SHORTCABLE, EXHAUST VALVE - SHORT
-
280930-008 O-RINGO-RING
-
290909-006 CABLE, EXHAUST VALVE - LONGCABLE, EXHAUST VALVE - LONG
-
300909-001 CLAMP, EXHAUST VALVE CABLECLAMP, EXHAUST VALVE CABLE
-
310123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
320909-002 CLIP, RETAININGCLIP, RETAINING
-
336639-613 GASKET SET - TOP ENDGASKET SET - TOP END
-
336639-614 GASKET SET - COMPLETEGASKET SET - COMPLETE
