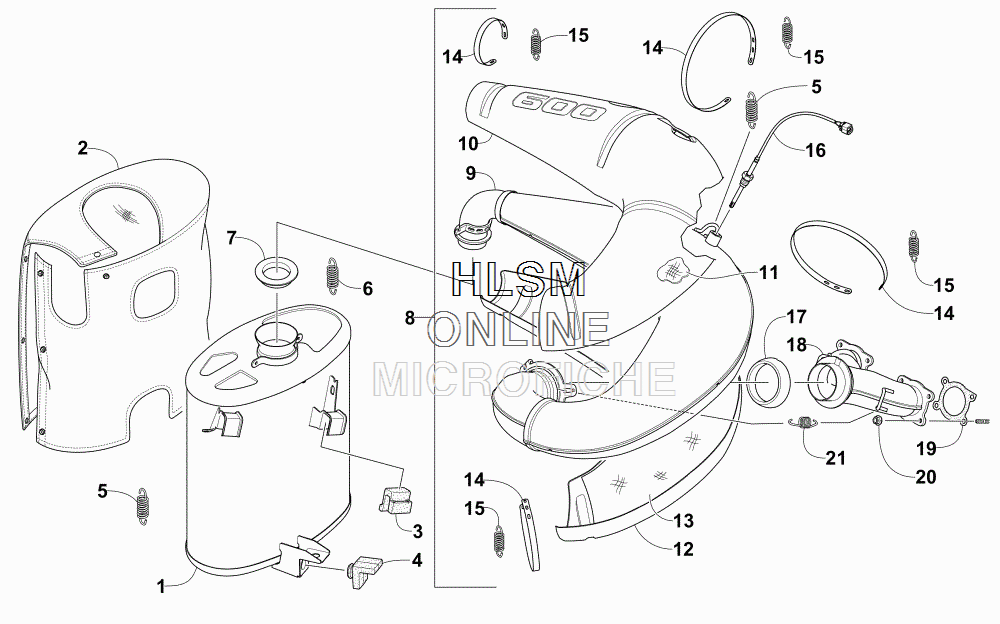

EXHAUST ASSEMBLY для Arctic Cat ZR 6000 LTD 129 ES GREEN [S2016ZRDLEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
11712-970 RESONATOR ASSEMBLYRESONATOR ASSEMBLY
-
22612-573 COVER, RESONATORCOVER, RESONATOR
-
32612-893 GROMMET, RUBBER - UPPERGROMMET, RUBBER - UPPER
-
42612-706 GROMMET, RESONATOR MOUNTGROMMET, RESONATOR MOUNT
-
52612-949 SPRING, EXHAUSTSPRING, EXHAUST
-
60612-471 SPRING, EXTENSIONSPRING, EXTENSION
-
71612-323 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
81712-816 CHAMBER, EXPANSION - ASSEMBLY (INC. 9-15)CHAMBER, EXPANSION - ASSEMBLY (INC. 9-15)
-
91712-817 ...CHAMBER, EXPANSION...CHAMBER, EXPANSION
-
102612-870 ...COVER, EXPANSION CHAMBER - UPPER...COVER, EXPANSION CHAMBER - UPPER
-
112612-872 ...PACKING, EXPANSION CHAMBER - UPPER...PACKING, EXPANSION CHAMBER - UPPER
-
122612-871 ...COVER, EXPANSION CHAMBER - LOWER...COVER, EXPANSION CHAMBER - LOWER
-
132612-873 ...PACKING, EXPANSION CHAMBER - LOWER...PACKING, EXPANSION CHAMBER - LOWER
-
140624-552 ...TIE, PERFORATED BAND - 5 FT...TIE, PERFORATED BAND - 5 FT
-
140624-541 ...TIE, PERFORATED BAND - 25 FT...TIE, PERFORATED BAND - 25 FT
-
151612-178 ...SPRING, EXHAUST...SPRING, EXHAUST
-
160630-330 SENSOR, EXHAUST TEMPSENSOR, EXHAUST TEMP
-
172612-615 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
181712-811 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
190930-023 GASKET, EXHAUSTGASKET, EXHAUST
-
208424-604 NUTNUT
-
210612-668 SPRING, EXTENSIONSPRING, EXTENSION
