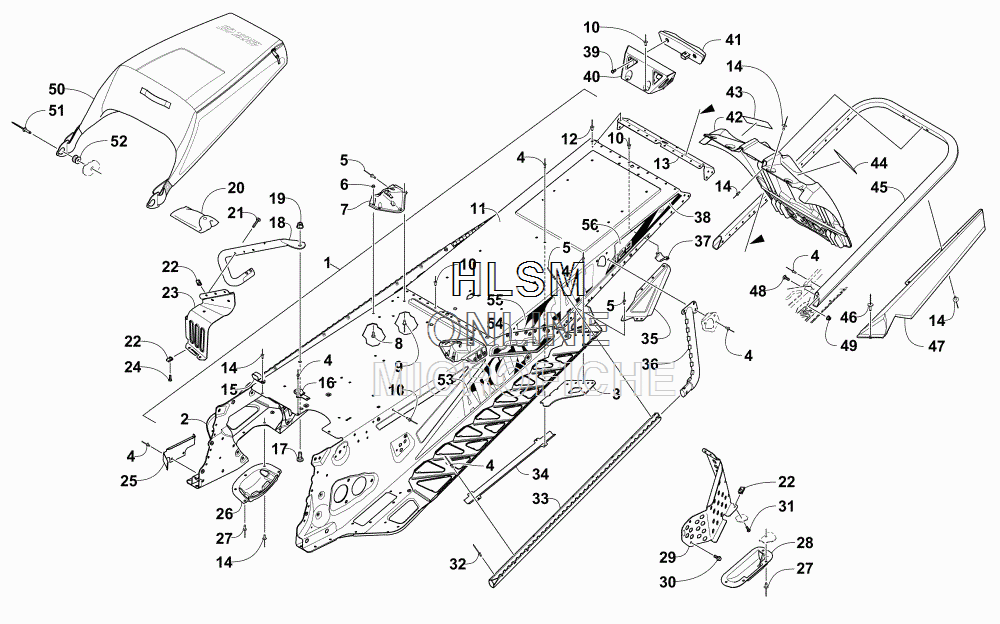

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 6000 LTD 129 ES GREEN [S2016ZRDLEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
-2707-552 COMPLETE CHASSIS ASSEMBLY - GREENCOMPLETE CHASSIS ASSEMBLY - GREEN
-
12707-812 TUNNEL ASSEMBLY - GREEN (INC. 2-13)TUNNEL ASSEMBLY - GREEN (INC. 2-13)
-
22707-811 ...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)
-
32707-318 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
-
32707-319 ......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
-
48060-686 ......RIVET - ZINC......RIVET - ZINC
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
72707-124 ...BRACKET, MOUNTING - REAR SPAR - RIGHT GREEN...BRACKET, MOUNTING - REAR SPAR - RIGHT GREEN
-
72707-125 ...BRACKET, MOUNTING - REAR SPAR - LEFT GREEN...BRACKET, MOUNTING - REAR SPAR - LEFT GREEN
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET - BLACK...RIVET - BLACK
-
112707-314 ...TUNNEL, REAR - GREEN...TUNNEL, REAR - GREEN
-
128060-504 ...RIVET...RIVET
-
132707-315 ...END CAP, TUNNEL - GREEN...END CAP, TUNNEL - GREEN
-
148061-706 RIVETRIVET
-
151623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
160645-709 CLIP, ROUTINGCLIP, ROUTING
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
181707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
181707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
198427-802 NUT, LOCKNUT, LOCK
-
200744-087 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
232707-004 FOOTREST - RIGHT - GREENFOOTREST - RIGHT - GREEN
-
232707-005 FOOTREST - LEFT - GREENFOOTREST - LEFT - GREEN
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
250608-705 BRACKET, ROUTING - OIL LINEBRACKET, ROUTING - OIL LINE
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
292707-042 SHIELD, BRAKE DISC - GREENSHIELD, BRAKE DISC - GREEN
-
308408-613 SCREW, CAPSCREW, CAP
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
321623-130 RIVETRIVET
-
332707-346 ROLL, TUNNEL - GREENROLL, TUNNEL - GREEN
-
340630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
352707-320 GUSSET, RUNNING BOARD - RIGHT - GREENGUSSET, RUNNING BOARD - RIGHT - GREEN
-
352707-321 GUSSET, RUNNING BOARD - LEFT - GREENGUSSET, RUNNING BOARD - LEFT - GREEN
-
362707-338 GUSSET, TUNNEL ROLL - RIGHT - GREENGUSSET, TUNNEL ROLL - RIGHT - GREEN
-
362707-339 GUSSET, TUNNEL ROLL - LEFT - GREENGUSSET, TUNNEL ROLL - LEFT - GREEN
-
370630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
380621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
398470-512 SCREW, MACHINESCREW, MACHINE
-
400730-230 BRACKET, MOUNTING - TAILLIGHT - GREENBRACKET, MOUNTING - TAILLIGHT - GREEN
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
445611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
452707-580 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
468060-710 RIVETRIVET
-
476606-870 FLARE, TUNNEL - RIGHT - BLACKFLARE, TUNNEL - RIGHT - BLACK
-
476606-871 FLARE, TUNNEL - LEFT - BLACKFLARE, TUNNEL - LEFT - BLACK
-
488476-620 SCREW, MACHINESCREW, MACHINE
-
498427-602 NUT, LOCKNUT, LOCK
-
506606-600 SADDLEBAGSADDLEBAG
-
518060-630 RIVETRIVET
-
521623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
532621-414 DECAL, TUNNEL - FRONT - RIGHT - GREENDECAL, TUNNEL - FRONT - RIGHT - GREEN
-
532621-415 DECAL, TUNNEL - FRONT - LEFT - GREENDECAL, TUNNEL - FRONT - LEFT - GREEN
-
542621-412 DECAL, TUNNEL - CENTER - RIGHT - GREENDECAL, TUNNEL - CENTER - RIGHT - GREEN
-
542621-413 DECAL, TUNNEL - CENTER - LEFT - GREENDECAL, TUNNEL - CENTER - LEFT - GREEN
-
552621-410 DECAL, TUNNEL - REAR - RIGHT - GREENDECAL, TUNNEL - REAR - RIGHT - GREEN
-
552621-411 DECAL, TUNNEL - REAR - LEFT - GREENDECAL, TUNNEL - REAR - LEFT - GREEN
-
562621-408 DECAL, TUNNEL - REAR - RIGHT - GREENDECAL, TUNNEL - REAR - RIGHT - GREEN
-
562621-409 DECAL, TUNNEL - REAR - LEFT - GREENDECAL, TUNNEL - REAR - LEFT - GREEN
