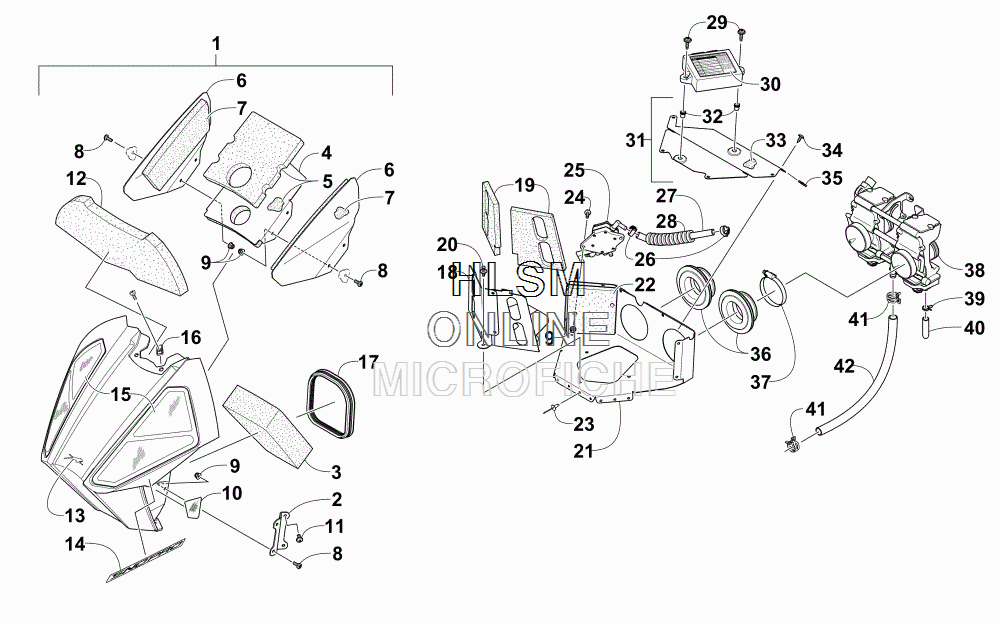

AIR SILENCER- CARBURETOR- AND FUEL PUMP ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN [S2016ACDPRUSG] - 2016 года выпуска
-
№АртикулНазвание
-
11770-063 BUMPER, FRONT/AIR SILENCER (INC. 2-10)BUMPER, FRONT/AIR SILENCER (INC. 2-10)
-
21770-008 ...BRACKET, MOUNTING - RIGHT...BRACKET, MOUNTING - RIGHT
-
21770-009 ...BRACKET, MOUNTING - LEFT...BRACKET, MOUNTING - LEFT
-
30617-677 ...FOAM, AIR INTAKE - LOWER...FOAM, AIR INTAKE - LOWER
-
42670-304 ...PLATE, BAFFLE...PLATE, BAFFLE
-
50617-695 ...FOAM, BAFFLE PLATE...FOAM, BAFFLE PLATE
-
62670-246 ...PLATE, AIR INTAKE...PLATE, AIR INTAKE
-
70617-690 ...FOAM, INTAKE PLATE - RIGHT...FOAM, INTAKE PLATE - RIGHT
-
70617-691 ...FOAM, INTAKE PLATE - LEFT...FOAM, INTAKE PLATE - LEFT
-
88477-620 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
98427-602 ...NUT, LOCK...NUT, LOCK
-
109611-390 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
109611-391 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
110423-609 SCREW, MACHINESCREW, MACHINE
-
120617-679 FOAM, AIR INTAKE - UPPERFOAM, AIR INTAKE - UPPER
-
134411-479 DECAL, AIRCATDECAL, AIRCAT
-
142621-314 DECAL, AIR SILENCERDECAL, AIR SILENCER
-
156606-432 SCREEN, AIR INTAKE - RIGHTSCREEN, AIR INTAKE - RIGHT
-
156606-433 SCREEN, AIR INTAKE - LEFTSCREEN, AIR INTAKE - LEFT
-
160423-577 CLIP, U-NUTCLIP, U-NUT
-
170617-603 SEAL, AIR INTAKESEAL, AIR INTAKE
-
182670-263 CLOSE-OFF, INTAKECLOSE-OFF, INTAKE
-
190617-150 FOAM, AIR INTAKE - RIGHTFOAM, AIR INTAKE - RIGHT
-
190617-151 FOAM, AIR INTAKE - LEFTFOAM, AIR INTAKE - LEFT
-
200623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
212670-262 PLATE, INTAKE - UPPERPLATE, INTAKE - UPPER
-
220617-139 FOAM, UPPER INTAKE PLATEFOAM, UPPER INTAKE PLATE
-
238060-706 RIVET - BLACKRIVET - BLACK
-
248476-625 SCREW, MACHINESCREW, MACHINE
-
251670-230 PUMP, FUEL W/O OIL INLETPUMP, FUEL W/O OIL INLET
-
260124-045 CLAMP, HOSECLAMP, HOSE
-
270610-007 HOSE, IMPULSE - 25HOSE, IMPULSE - 25
-
281619-359 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
290423-609 SCREW, MACHINESCREW, MACHINE
-
308611-706 DECAL, DIAGNOSTIC CODESDECAL, DIAGNOSTIC CODES
-
310770-992 ...COVER, AIR INTAKE - ASSEMBLY (INC. 31)...COVER, AIR INTAKE - ASSEMBLY (INC. 31)
-
320423-391 INSERTINSERT
-
330617-171 FOAM, AIR INTAKE COVERFOAM, AIR INTAKE COVER
-
341623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
351623-052 CLIP, U-NUTCLIP, U-NUT
-
362670-247 BOOT, INTAKEBOOT, INTAKE
-
370423-019 CLAMPCLAMP
-
382670-335 CARBURETORCARBURETOR
-
390623-652 CLAMP, HOSECLAMP, HOSE
-
400610-442 HOSE, DRAIN - 1.5 IN.HOSE, DRAIN - 1.5 IN.
-
411623-197 CLAMP, HOSECLAMP, HOSE
-
420410-143 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
