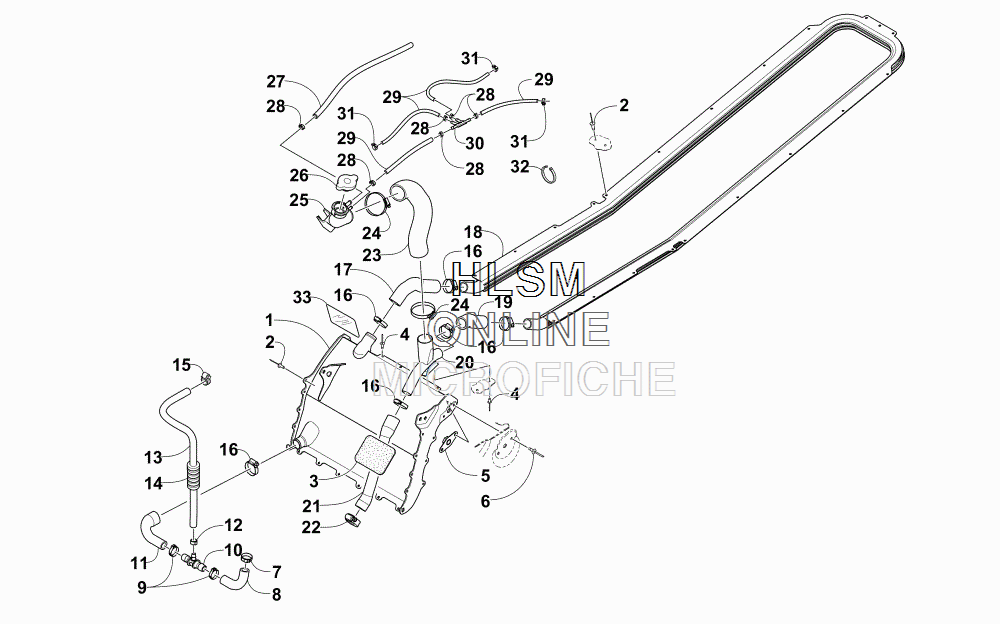

COOLING ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN [S2016ACDPRUSG] - 2016 года выпуска
-
№АртикулНазвание
-
10713-103 EXCHANGER, HEAT - FRONTEXCHANGER, HEAT - FRONT
-
28060-706 RIVET - BLACKRIVET - BLACK
-
30617-498 PAD, FOAMPAD, FOAM
-
48060-702 RIVET - BLACKRIVET - BLACK
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-708 RIVET - BLACKRIVET - BLACK
-
71623-418 CLAMP, HOSECLAMP, HOSE
-
80613-125 HOSE, COOLANT - ENGINE/T-FITTINGHOSE, COOLANT - ENGINE/T-FITTING
-
91623-350 CLAMP, HOSECLAMP, HOSE
-
101623-988 T-FITTINGT-FITTING
-
110613-126 HOSE, COOLANT - T-FITTING/FRONT HEAT EXCHANGERHOSE, COOLANT - T-FITTING/FRONT HEAT EXCHANGER
-
120610-581 CLAMP, HOSECLAMP, HOSE
-
130610-878 HOSE, COOLANTHOSE, COOLANT
-
140619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
150623-373 CLAMP, HOSECLAMP, HOSE
-
162623-088 CLAMP, HOSECLAMP, HOSE
-
170613-122 HOSE, COOLANT - FRONT/REAR HEAT EXCHANGERHOSE, COOLANT - FRONT/REAR HEAT EXCHANGER
-
180613-113 EXCHANGER, HEAT - REAREXCHANGER, HEAT - REAR
-
190613-123 HOSE, COOLANT - REAR HEAT EXCHANGER/COOLANT JUNCTIONHOSE, COOLANT - REAR HEAT EXCHANGER/COOLANT JUNCTION
-
200713-111 JUNCTION, COOLANTJUNCTION, COOLANT
-
210613-054 HOSE, COOLANT - COOLANT JUNCTION/THERMOSTATHOSE, COOLANT - COOLANT JUNCTION/THERMOSTAT
-
221623-229 CLAMP, HOSECLAMP, HOSE
-
230613-112 HOSE, COOLANT - FILLER NECK/COOLANT JUNCTIONHOSE, COOLANT - FILLER NECK/COOLANT JUNCTION
-
240423-317 CLAMPCLAMP
-
250613-030 NECK, FILLERNECK, FILLER
-
262606-284 CAPCAP
-
270610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
270610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
281623-655 CLAMP, HOSECLAMP, HOSE
-
290610-538 HOSE - 25 FTHOSE - 25 FT
-
300610-717 FITTING, DOUBLE-TFITTING, DOUBLE-T
-
310623-063 CLAMP, HOSECLAMP, HOSE
-
320123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
336606-817 FOIL, PROTECTIVEFOIL, PROTECTIVE
