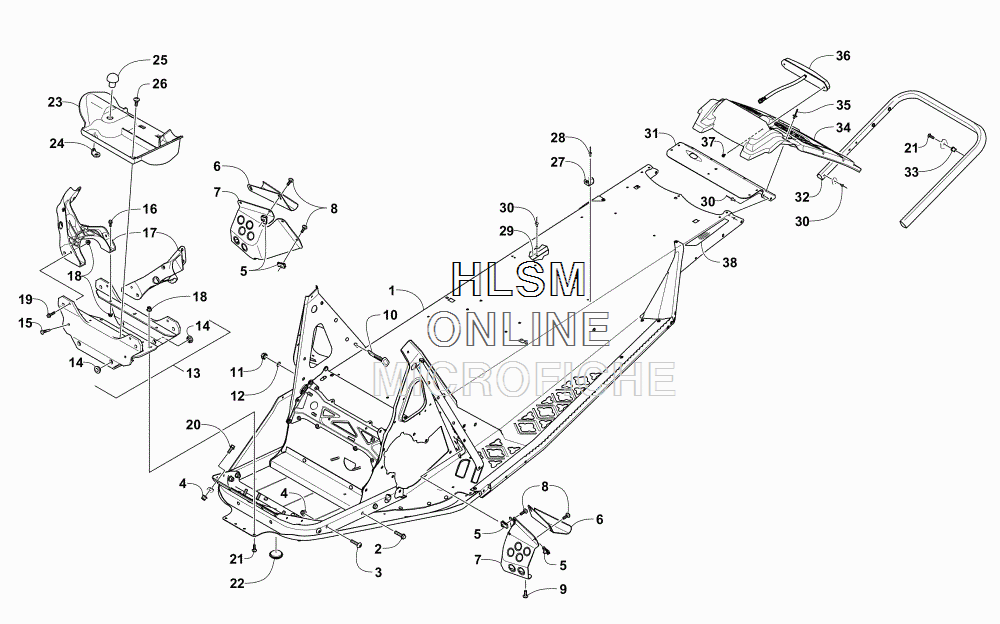

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat LYNX 2000 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
11707-279 CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)
-
21623-428 ...SCREW, CAP...SCREW, CAP
-
38476-835 ...SCREW, CAP...SCREW, CAP
-
48427-802 ...NUT...NUT
-
50423-577 CLIP, U-NUTCLIP, U-NUT
-
63606-920 BRACKET, TOE HOOK - RIGHTBRACKET, TOE HOOK - RIGHT
-
63606-921 BRACKET, TOE HOOK - LEFTBRACKET, TOE HOOK - LEFT
-
73606-710 SHIELD, TOE - RIGHTSHIELD, TOE - RIGHT
-
73606-711 SHIELD, TOE - LEFTSHIELD, TOE - LEFT
-
88471-616 SCREW, MACHINESCREW, MACHINE
-
98471-620 SCREW, MACHINESCREW, MACHINE
-
104606-454 STRAP, HOLD-DOWN - RIGHTSTRAP, HOLD-DOWN - RIGHT
-
104606-455 STRAP, HOLD-DOWN - LEFTSTRAP, HOLD-DOWN - LEFT
-
110623-038 NUT W/WASHERNUT W/WASHER
-
128053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
131707-340 BRACKET, FRONT SUSPENSION MOUNTING - W/BUSHINGS (INC. 14-15)BRACKET, FRONT SUSPENSION MOUNTING - W/BUSHINGS (INC. 14-15)
-
140605-763 ...BUSHING...BUSHING
-
151623-443 ...BOLT, RIBBED...BOLT, RIBBED
-
168408-620 SCREW, CAPSCREW, CAP
-
170607-806 FRAME, MOUNTING - SHOCK - RIGHTFRAME, MOUNTING - SHOCK - RIGHT
-
170607-807 FRAME, MOUNTING - SHOCK - LEFTFRAME, MOUNTING - SHOCK - LEFT
-
188427-602 NUT, LOCKNUT, LOCK
-
198408-625 SCREW, CAPSCREW, CAP
-
208408-820 SCREW, CAPSCREW, CAP
-
218476-620 SCREW, MACHINESCREW, MACHINE
-
221623-625 PLUGPLUG
-
235606-318 CLOSE-OFF, FRONT ENDCLOSE-OFF, FRONT END
-
244606-770 BRACKET, RETAININGBRACKET, RETAINING
-
250612-111 BUMPER, MOLDED - RUBBERBUMPER, MOLDED - RUBBER
-
260423-557 SCREW, SHOULDERSCREW, SHOULDER
-
276606-028 BRACKET, SEAT RETAINERBRACKET, SEAT RETAINER
-
288060-484 RIVETRIVET
-
296606-056 SUPPORT, TUNNEL - RIGHTSUPPORT, TUNNEL - RIGHT
-
296606-057 SUPPORT, TUNNEL - LEFTSUPPORT, TUNNEL - LEFT
-
308060-686 RIVETRIVET
-
315606-701 END CAP, TUNNELEND CAP, TUNNEL
-
324706-664 BUMPER, REAR (INC. 33)BUMPER, REAR (INC. 33)
-
330423-391 ...INSERT...INSERT
-
344706-547 SNOWFLAPSNOWFLAP
-
358061-706 RIVETRIVET
-
360609-863 TAILLIGHT, LED - REDTAILLIGHT, LED - RED
-
370623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
388611-720 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
388611-721 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
