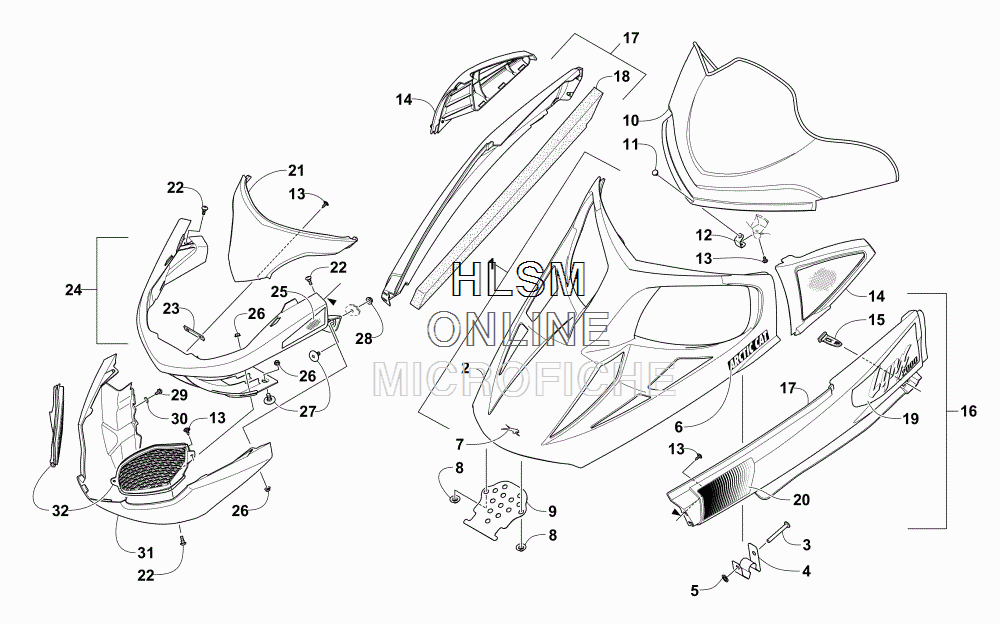

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat LYNX 2000 BLACK - 2017 года выпуска

№

Артикул

Название
1

4718-846 HOOD - W/DECALS - BLACK (INC. 2-7)

HOOD - W/DECALS - BLACK (INC. 2-7)

40 970 ₽
2

7800-953 ...HOOD W/O DECALS - BLACK (INC. 3-5)

...HOOD W/O DECALS - BLACK (INC. 3-5)

27 870 ₽
3

1623-610 ......PIN, RETAINING

......PIN, RETAINING

3 320 ₽
4

5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT

......CLIP, HOOD HOLD-DOWN - RIGHT

2 280 ₽
4

5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT

......CLIP, HOOD HOLD-DOWN - LEFT

2 280 ₽
5

1623-409 ......RETAINER, PUSHNUT

......RETAINER, PUSHNUT

170 ₽
6

2621-815 ...DECAL, HOOD - "ARCTIC CAT"

...DECAL, HOOD - "ARCTIC CAT"

2 490 ₽
7

4411-479 ...DECAL, AIRCAT

...DECAL, AIRCAT

810 ₽
8

1623-469 NUT, STAMPED

NUT, STAMPED

190 ₽
9

5606-042 BRACKET, HINGE

BRACKET, HINGE

4 990 ₽
10

5606-961 WINDSHIELD, MID

WINDSHIELD, MID

33 480 ₽
11

1623-677 RIVET, PLASTIC

RIVET, PLASTIC

210 ₽
12

4606-961 BRACKET, WINDSHIELD - HOLD-DOWN

BRACKET, WINDSHIELD - HOLD-DOWN

2 700 ₽
13

1623-129 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
14

5606-924 BEZEL, INTAKE - ASSEMBLY - RIGHT - BLACK

BEZEL, INTAKE - ASSEMBLY - RIGHT - BLACK

8 730 ₽
14

5606-925 BEZEL, INTAKE - ASSEMBLY - LEFT - BLACK

BEZEL, INTAKE - ASSEMBLY - LEFT - BLACK

8 730 ₽
15

4606-926 STRAP, HOLD-DOWN

STRAP, HOLD-DOWN

710 ₽
16

4718-842 SPAR, FRONT - W/DECALS - RIGHT -WHITE (INC. 17-20)

SPAR, FRONT - W/DECALS - RIGHT -WHITE (INC. 17-20)

12 890 ₽
16

4718-843 SPAR, FRONT - W/DECALS - LEFT - WHITE (INC. 17-20)

SPAR, FRONT - W/DECALS - LEFT - WHITE (INC. 17-20)

12 890 ₽
17

4718-840 ...SPAR, FRONT - W/O DECALS - RIGHT - WHITE (INC. 18)

...SPAR, FRONT - W/O DECALS - RIGHT - WHITE (INC. 18)

9 560 ₽
17

4718-841 ...SPAR, FRONT - W/O DECALS - LEFT - WHITE (INC. 18)

...SPAR, FRONT - W/O DECALS - LEFT - WHITE (INC. 18)

9 560 ₽
18

0617-656 ......FOAM, FRONT SPAR - RIGHT

......FOAM, FRONT SPAR - RIGHT

2 700 ₽
18

0617-657 ......FOAM, FRONT SPAR - LEFT

......FOAM, FRONT SPAR - LEFT

2 700 ₽
19

2621-818 ...DECAL, FRONT SPAR - REAR - RIGHT

...DECAL, FRONT SPAR - REAR - RIGHT

2 700 ₽
19

2621-819 ...DECAL, FRONT SPAR - REAR - LEFT

...DECAL, FRONT SPAR - REAR - LEFT

2 700 ₽
20

2621-816 ...DECAL, FRONT SPAR - FRONT -RIGHT

...DECAL, FRONT SPAR - FRONT -RIGHT

2 490 ₽
20

2621-817 ...DECAL, FRONT SPAR - FRONT - LEFT

...DECAL, FRONT SPAR - FRONT - LEFT

2 490 ₽
21

4606-518 FASCIA, BUMPER - UPPER - BLACK

FASCIA, BUMPER - UPPER - BLACK

5 400 ₽
22

0423-355 SCREW, SHOULDER

SCREW, SHOULDER

150 ₽
23

5606-953 SPACER

SPACER

520 ₽
24

2718-969 BUMPER, FRONT - ORANGE (INC. 25)

BUMPER, FRONT - ORANGE (INC. 25)

24 540 ₽
25

9611-384 ...DECAL, REFLECTOR - RIGHT - AMBER

...DECAL, REFLECTOR - RIGHT - AMBER

4 360 ₽
25

9611-385 ...DECAL, REFLECTOR - LEFT - AMBER

...DECAL, REFLECTOR - LEFT - AMBER

4 360 ₽
26

8427-602 NUT, LOCK

NUT, LOCK

440 ₽
27

1623-775 SCREW, SHOULDER

SCREW, SHOULDER

270 ₽
28

8424-602 NUT

NUT

40 ₽
29

0623-966 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

170 ₽
30

8053-242 WASHER, EXTERNAL TOOTH LOCK

WASHER, EXTERNAL TOOTH LOCK

20 ₽
31

5606-462 FASCIA, BUMPER - LOWER - MOLD - BLACK

FASCIA, BUMPER - LOWER - MOLD - BLACK

9 770 ₽
32

4606-604 VENT, BUMPER - RIGHT - BLACK

VENT, BUMPER - RIGHT - BLACK

3 950 ₽
32

4606-605 VENT, BUMPER - LEFT - MOLD - BLACK

VENT, BUMPER - LEFT - MOLD - BLACK

3 950 ₽
