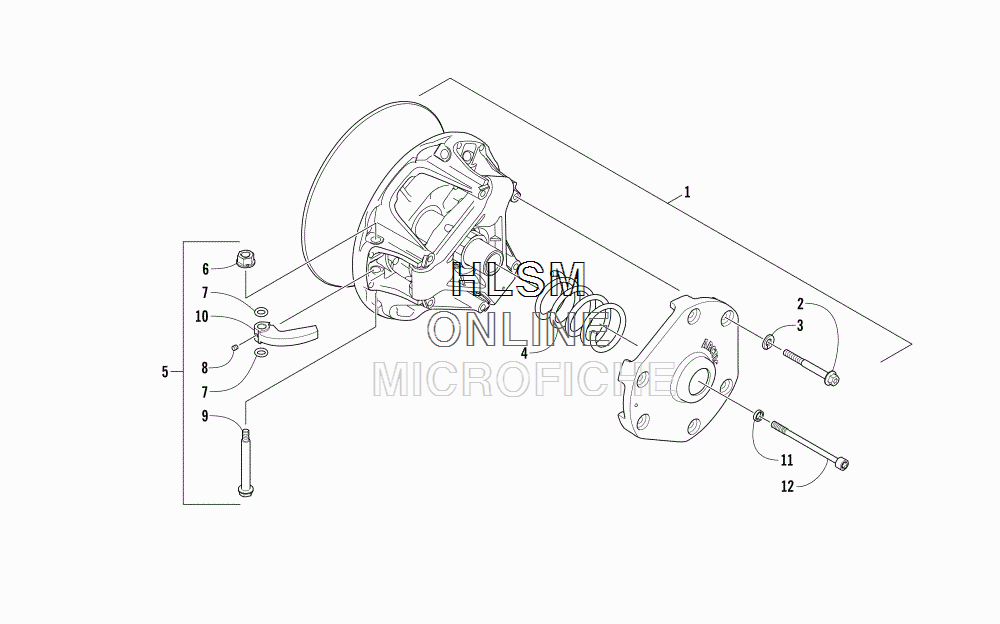

DRIVE CLUTCH для Arctic Cat LYNX 2000 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
10746-435 CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)
-
20646-431 ...SCREW, SHOULDER...SCREW, SHOULDER
-
30646-430 ...WASHER, LOCK...WASHER, LOCK
-
40646-433 SPRING, CLUTCHSPRING, CLUTCH
-
54639-674 KIT, CAM ARM REPAIR - WIDE (INC. 6-9)KIT, CAM ARM REPAIR - WIDE (INC. 6-9)
-
68048-366 ...NUT, LOCK...NUT, LOCK
-
71602-692 ...O-RING...O-RING
-
81623-183 ...SCREW, SET...SCREW, SET
-
90646-747 ...PIN, CAM ARM...PIN, CAM ARM
-
100646-716 ARM, CAM - WIDEARM, CAM - WIDE
-
111623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
121623-792 BOLT, CLUTCHBOLT, CLUTCH
