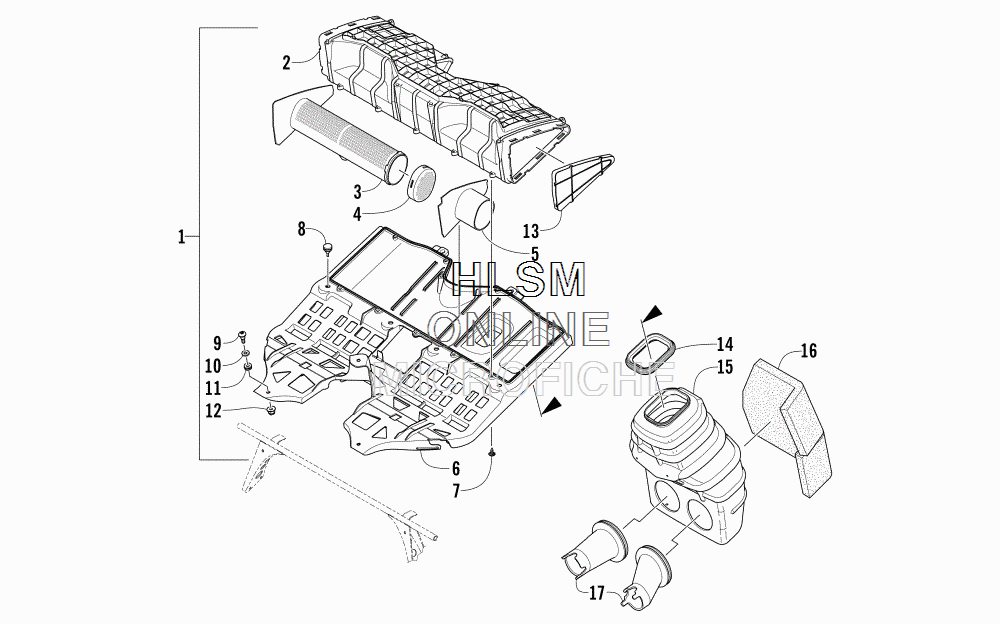

AIR SILENCER ASSEMBLY для Arctic Cat LYNX 2000 LT BLACK - 2017 года выпуска
-
№АртикулНазвание
-
10770-976 INTAKE, SUPPORT - ASSEMBLY (INC. 2-7)INTAKE, SUPPORT - ASSEMBLY (INC. 2-7)
-
21670-732 ...INTAKE, SUPPORT - TOP...INTAKE, SUPPORT - TOP
-
32670-240 ...RESONATOR, UPPER - PLENUM - RIGHT...RESONATOR, UPPER - PLENUM - RIGHT
-
42670-255 ...CAP, UPPER RESONATOR...CAP, UPPER RESONATOR
-
51670-925 ...RESONATOR, UPPER - PLENUM - LEFT...RESONATOR, UPPER - PLENUM - LEFT
-
61670-733 ...INTAKE, SUPPORT - BOTTOM...INTAKE, SUPPORT - BOTTOM
-
70623-784 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
84606-276 GROMMETGROMMET
-
90423-356 SCREW, SHOULDERSCREW, SHOULDER
-
108050-212 WASHERWASHER
-
114606-275 GROMMETGROMMET
-
128427-602 NUT, LOCKNUT, LOCK
-
131670-831 COVER, TOP PLENUM - LEFTCOVER, TOP PLENUM - LEFT
-
141670-942 SEAL, AIR SILENCERSEAL, AIR SILENCER
-
151670-941 SILENCER, AIRSILENCER, AIR
-
160617-660 FOAM, AIR SILENCERFOAM, AIR SILENCER
-
171670-944 BOOT, AIR SILENCERBOOT, AIR SILENCER
