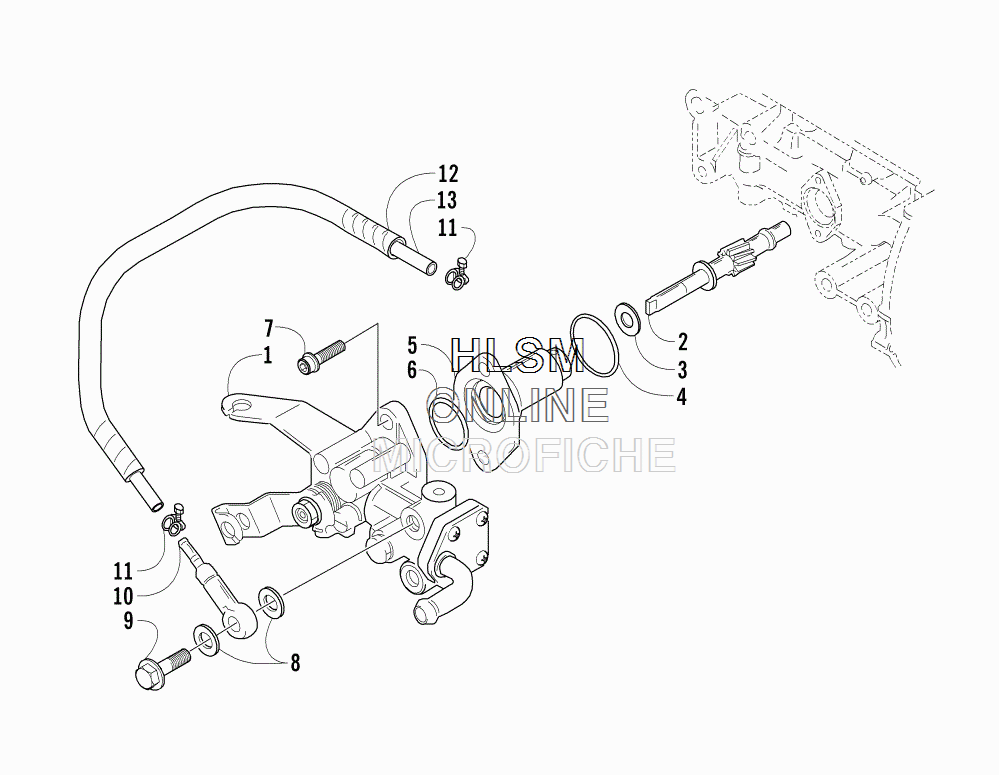

OIL PUMP для Arctic Cat LYNX 2000 LT BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13007-866 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
23002-770 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
33002-749 SHIMSHIM
-
43005-126 O-RINGO-RING
-
53003-749 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
63008-030 O-RINGO-RING
-
73007-471 SCREW, CAPSCREW, CAP
-
83402-009 WASHER, DRIVENWASHER, DRIVEN
-
93004-346 BOLT, UNIONBOLT, UNION
-
103005-224 VALVE, CHECKVALVE, CHECK
-
113003-218 CLAMP, HOSECLAMP, HOSE
-
123005-032 PROTECTORPROTECTOR
-
133005-225 HOSE, OIL PUMPHOSE, OIL PUMP
