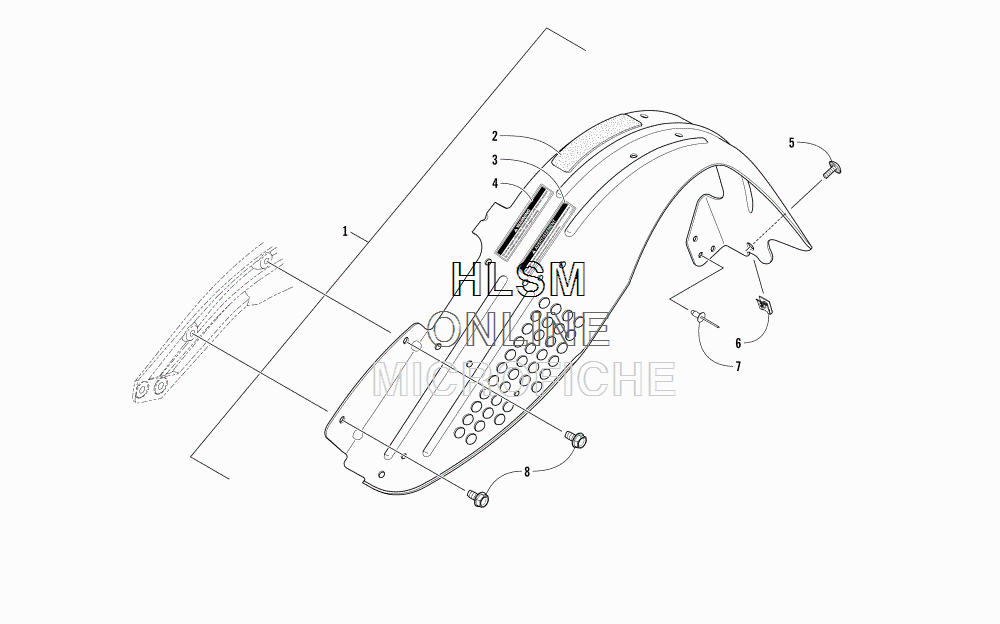

BELT GUARD ASSEMBLY для Arctic Cat ZR 9000 RR 137 BLACK INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
12707-775 GUARD, BELT (INC. 2-4)GUARD, BELT (INC. 2-4)
-
20617-733 ...PAD, GAS TANK...PAD, GAS TANK
-
39611-691 ...DECAL, WARNING (FRENCH)...DECAL, WARNING (FRENCH)
-
49611-690 ...DECAL, WARNING (ENGLISH)...DECAL, WARNING (ENGLISH)
-
52623-164 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
61623-052 CLIP, U-NUTCLIP, U-NUT
-
78060-686 RIVETRIVET
-
80423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
