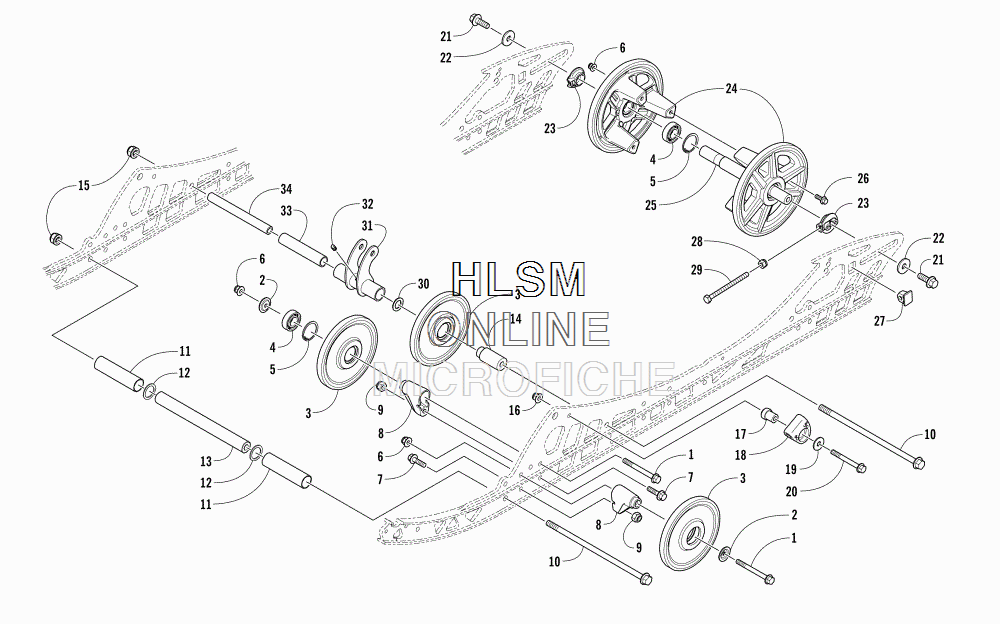

IDLER WHEEL ASSEMBLY для Arctic Cat ZR 9000 RR 137 BLACK INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
18413-675 SCREW, CAPSCREW, CAP
-
22623-025 WASHERWASHER
-
33604-807 WHEEL, IDLER (INC. 4-5)WHEEL, IDLER (INC. 4-5)
-
43604-033 ...BEARING...BEARING
-
50623-946 ...RING, RETAINING...RING, RETAINING
-
68427-602 NUT, LOCKNUT, LOCK
-
78413-620 SCREW, CAPSCREW, CAP
-
83604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
98422-602 NUTNUT
-
101423-431 SCREW, CAPSCREW, CAP
-
113604-083 SPACERSPACER
-
120623-912 WASHERWASHER
-
133604-269 AXLEAXLE
-
143604-327 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
152623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
168427-802 NUTNUT
-
173604-204 BLOCK, SLIDEBLOCK, SLIDE
-
182604-515 SLIDE, SPRINGSLIDE, SPRING
-
198450-133 WASHERWASHER
-
208408-855 SCREW, CAPSCREW, CAP
-
218413-031 SCREW, CAPSCREW, CAP
-
221623-931 WASHERWASHER
-
233604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
244604-137 WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID (INC. TWO NO. 4-5)WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID (INC. TWO NO. 4-5)
-
253604-640 AXLE, REARAXLE, REAR
-
268408-620 SCREW, CAPSCREW, CAP
-
273604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
288422-802 NUT, LOCKNUT, LOCK
-
291623-682 SCREW, CAPSCREW, CAP
-
301623-794 WASHERWASHER
-
311704-674 PIVOT, SHOCK (INC.32)PIVOT, SHOCK (INC.32)
-
321623-010 ...FITTING, GREASE...FITTING, GREASE
-
333604-325 SPACERSPACER
-
343604-285 AXLEAXLE
