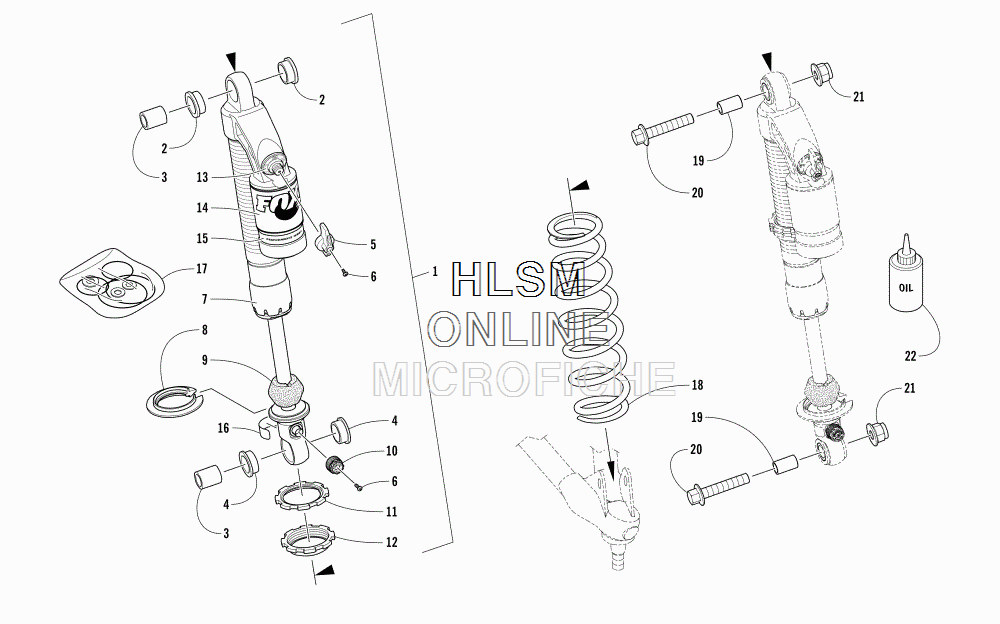

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat ZR 9000 RR 137 BLACK INTERNATIONAL - 2018 года выпуска

№

Артикул

Название
1

3703-597 COMPLETE SHOCK ABSORBER (INC. 2-17)

COMPLETE SHOCK ABSORBER (INC. 2-17)

121 260 ₽
2

1604-222 ...BUSHING

...BUSHING

2 700 ₽
3

2604-223 ...SLEEVE

...SLEEVE

4 990 ₽
4

3603-283 ...BUSHING

...BUSHING

3 950 ₽
5

3603-520 ...KNOB, DAMPING ADJUSTER - REBOUND

...KNOB, DAMPING ADJUSTER - REBOUND

5 610 ₽
6

3603-377 ...SCREW, MACHINE

...SCREW, MACHINE

1 870 ₽
7

4604-016 ...GUIDE, SPRING

...GUIDE, SPRING

5 610 ₽
8

4604-186 ...RETAINER, SPRING

...RETAINER, SPRING

4 570 ₽
9

3603-024 ...BUMPER, SHAFT

...BUMPER, SHAFT

2 490 ₽
10

3603-386 ...KNOB, REBOUND

...KNOB, REBOUND

1 100 ₽
11

3603-026 ...PRELOAD RING

...PRELOAD RING

2 490 ₽
12

3603-027 ...PRELOAD RING, BACK-UP

...PRELOAD RING, BACK-UP

2 700 ₽
13

3603-523 ...DECAL, BASE VALUE

...DECAL, BASE VALUE

2 700 ₽
14

3603-562 ...DECAL, RESERVOIR

...DECAL, RESERVOIR

3 740 ₽
15

3603-365 ...DECAL, "PERFORMANCE SERIES"

...DECAL, "PERFORMANCE SERIES"

2 700 ₽
16

3603-561 ...DECAL, REBOUND

...DECAL, REBOUND

920 ₽
17

3603-522 ...KIT, SEAL/CAP REBUILD

...KIT, SEAL/CAP REBUILD

24 950 ₽
18

3703-485 SPRING, COMPRESSION - BLACK

SPRING, COMPRESSION - BLACK

4 780 ₽
19

3604-109 SLEEVE

SLEEVE

670 ₽
20

8408-050 SCREW, CAP

SCREW, CAP

420 ₽
21

8427-002 NUT, LOCK

NUT, LOCK

150 ₽
22

5639-530 OIL, SHOCK - 1 QT

OIL, SHOCK - 1 QT

3 950 ₽
