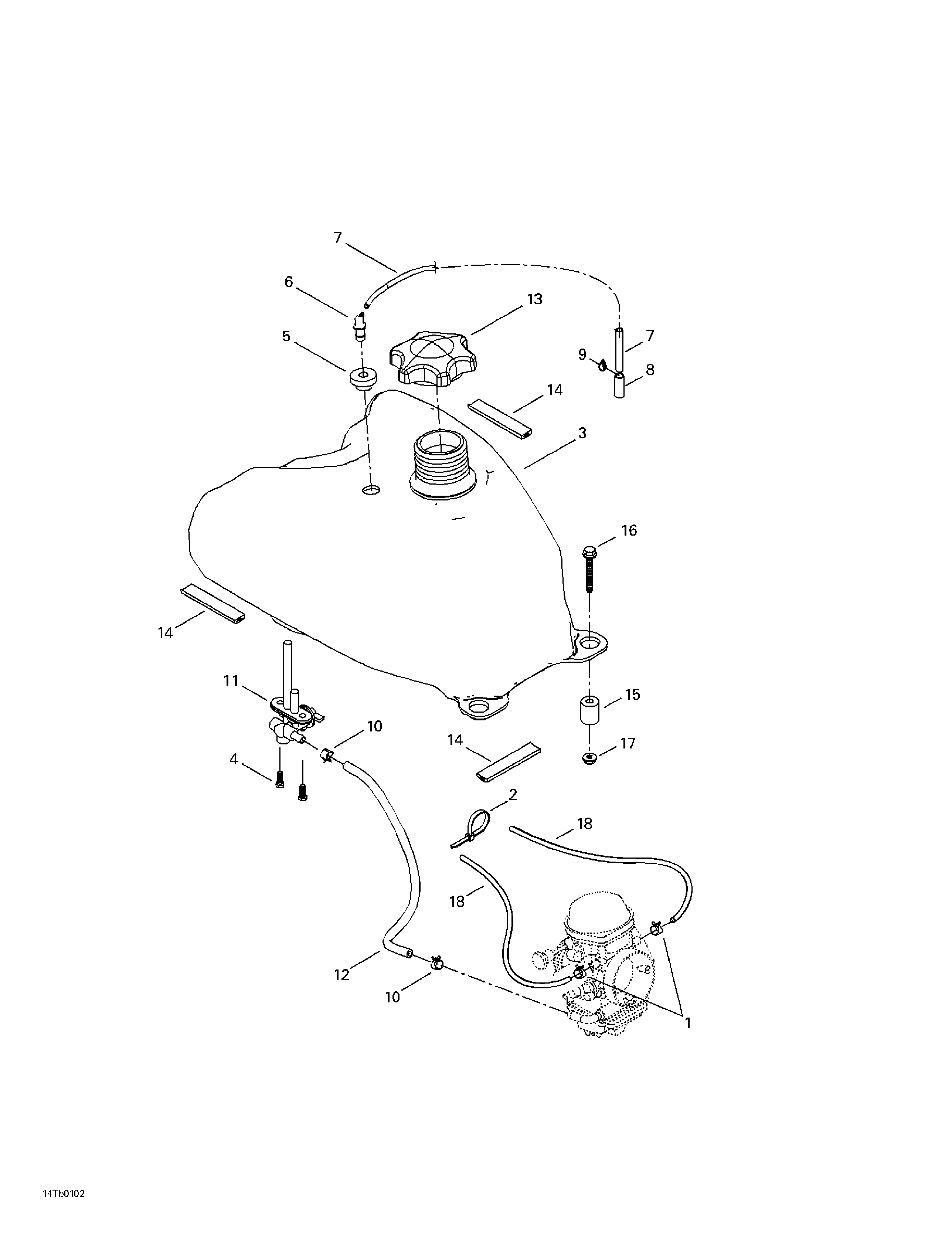

02- Fuel System для BRP DS 650, 7404 - 2001
-
№АртикулНазвание
-
1414420700 Spring ClipSpring Clip
-
2414115200 Tie RapTie Rap
-
3709000010 Fuel TankFuel Tank
-
4207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
5570045500 GrommetGrommet
-
6414814100 Male ConnectorMale Connector
-
7415080100 LineLine
-
8415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
9413705800 Loctite 414, 29.5 ccLoctite 414, 29.5 cc
-
10414655700 Spring ClipSpring Clip
-
11709000011 Fuel ValveFuel Valve
-
12275500345 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
13572073900 CapCap
-
14293200003 Seal (Meter)Seal (Meter)
-
15705000114 SpacerSpacer
-
16207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
17233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
18707200131 HoseHose
