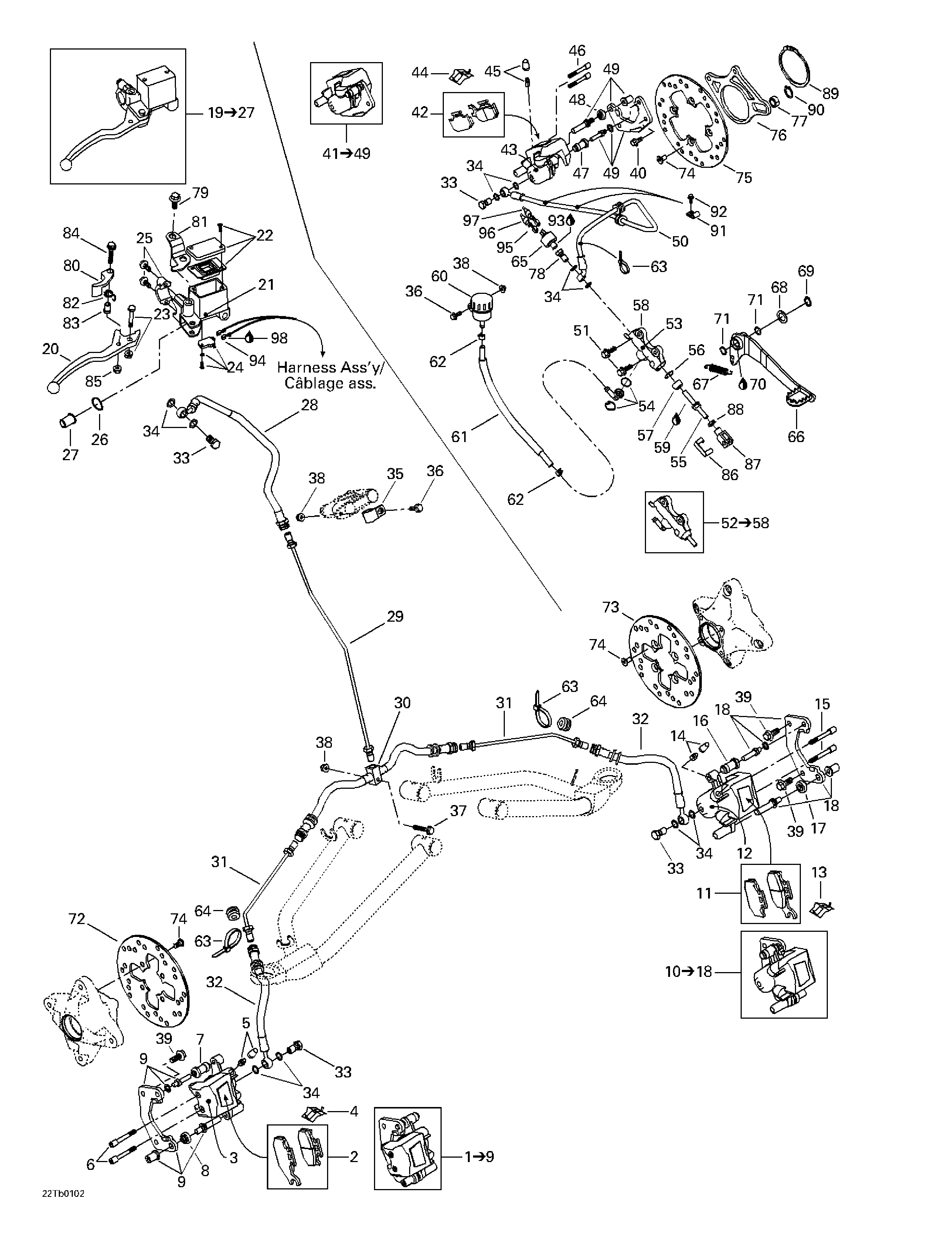

06- Hydraulic Brake для BRP DS 650, 7404 - 2001
-
№АртикулНазвание
-
1705600043 R.H. Caliper. Includes 1 - 9.R.H. Caliper. Includes 1 - 9.
-
2705600004 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeder-ScrewBleeder-Screw
-
6705600081 Pin-SetPin-Set
-
7705600082 BootBoot
-
8705600083 BootBoot
-
9705600062 R.H. Brake SupportR.H. Brake Support
-
10705600044 L.H. Caliper. Includes 10 - 18.L.H. Caliper. Includes 10 - 18.
-
11705600014 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeder-ScrewBleeder-Screw
-
15705600081 Pin-SetPin-Set
-
16705600082 BootBoot
-
17705600083 BootBoot
-
18705600061 L.H. Brake SupportL.H. Brake Support
-
19705600045 Master Cylinder. Includes 19 - 27.Master Cylinder. Includes 19 - 27.
-
20705600057 Arm LeverArm Lever
-
21705600058 Piston KitPiston Kit
-
22705600084 Boot KitBoot Kit
-
23705600085 Bolt KitBolt Kit
-
24705600086 Switch KitSwitch Kit
-
25705600087 Bracket KitBracket Kit
-
26705600088 CirclipCirclip
-
27705600089 BootBoot
-
28705600007 Brake Handle HoseBrake Handle Hose
-
29705600047 Vertical HoseVertical Hose
-
30705600048 Flexible HoseFlexible Hose
-
31705600070 Horizontal HoseHorizontal Hose
-
32705600071 Brake HoseBrake Hose
-
33705600056 Banjo BoltBanjo Bolt
-
34414920600 WasherWasher
-
35705600040 Hose RetainerHose Retainer
-
36207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
37207663044 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
38233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
39207582044 Hex. Flanged Screw M8 x 20 (Scotch Grip)Hex. Flanged Screw M8 x 20 (Scotch Grip)
-
40207581244 Hex. Flanged Screw M8 x 12 (Scotch Grip)Hex. Flanged Screw M8 x 12 (Scotch Grip)
-
41705600049 Rear Caliper. Includes 41 - 49.Rear Caliper. Includes 41 - 49.
-
42705600014 Brake Pad KitBrake Pad Kit
-
43705600078 Piston SetPiston Set
-
44705600079 SpringSpring
-
45705600080 Bleeder-ScrewBleeder-Screw
-
46705600081 Pin-SetPin-Set
-
47705600082 BootBoot
-
48705600083 BootBoot
-
49705600017 Brake Support Ass'yBrake Support Ass'y
-
50705600052 Rear Flexible HoseRear Flexible Hose
-
51207581646 Hex. Flanged Screw M8 x 16 (Scotch Grip)Hex. Flanged Screw M8 x 16 (Scotch Grip)
-
52705600050 Master Cylinder Ass'y. Includes 52 - 58.Master Cylinder Ass'y. Includes 52 - 58.
-
53705600063 Piston SetPiston Set
-
54705600064 Pusher BracketPusher Bracket
-
55705600065 Rod Ass'yRod Ass'y
-
56705600068 CirclipCirclip
-
57705600090 BootBoot
-
58705600117 Master CylinderMaster Cylinder
-
60705600067 Oil TankOil Tank
-
61705600108 HoseHose
-
62414415200 Spring ClampSpring Clamp
-
63414115200 Tie RapTie Rap
-
64293720046 GrommetGrommet
-
65710000099 Brake SwitchBrake Switch
-
66705600094 Brake pedalBrake pedal
-
67705600098 SpringSpring
-
68503107800 WasherWasher
-
69293370012 CirclipCirclip
-
70293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
71293300053 O-RingO-Ring
-
72705600042 R.H. Brake DiscR.H. Brake Disc
-
73705600093 L.H. Brake DiscL.H. Brake Disc
-
74235381646 Screw M8 x 16 (Scotch Grip)Screw M8 x 16 (Scotch Grip)
-
75705500059 Brake DiscBrake Disc
-
76705500066 Caliper SupportCaliper Support
-
77705500068 Caliper GuideCaliper Guide
-
78705600092 Banjo BoltBanjo Bolt
-
79250000029 Hex. Screw M10 x 16Hex. Screw M10 x 16
-
80705600095 Lever ArmLever Arm
-
81705600096 Lever StopperLever Stopper
-
82705600055 SpringSpring
-
83705600097 Snap RingSnap Ring
-
84210264080 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
85233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
86250400007 PinPin
-
87705600100 YokeYoke
-
88232180600 Nut M8Nut M8
-
89293370014 CirclipCirclip
-
90293370015 CirclipCirclip
-
91414351600 ClipClip
-
92210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
93293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
94710000082 Female TerminalFemale Terminal
-
95278001009 Female TerminalFemale Terminal
-
96278000770 Insulation Sheath (Double)Insulation Sheath (Double)
-
97278001007 Insulation SheathInsulation Sheath
-
98293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
