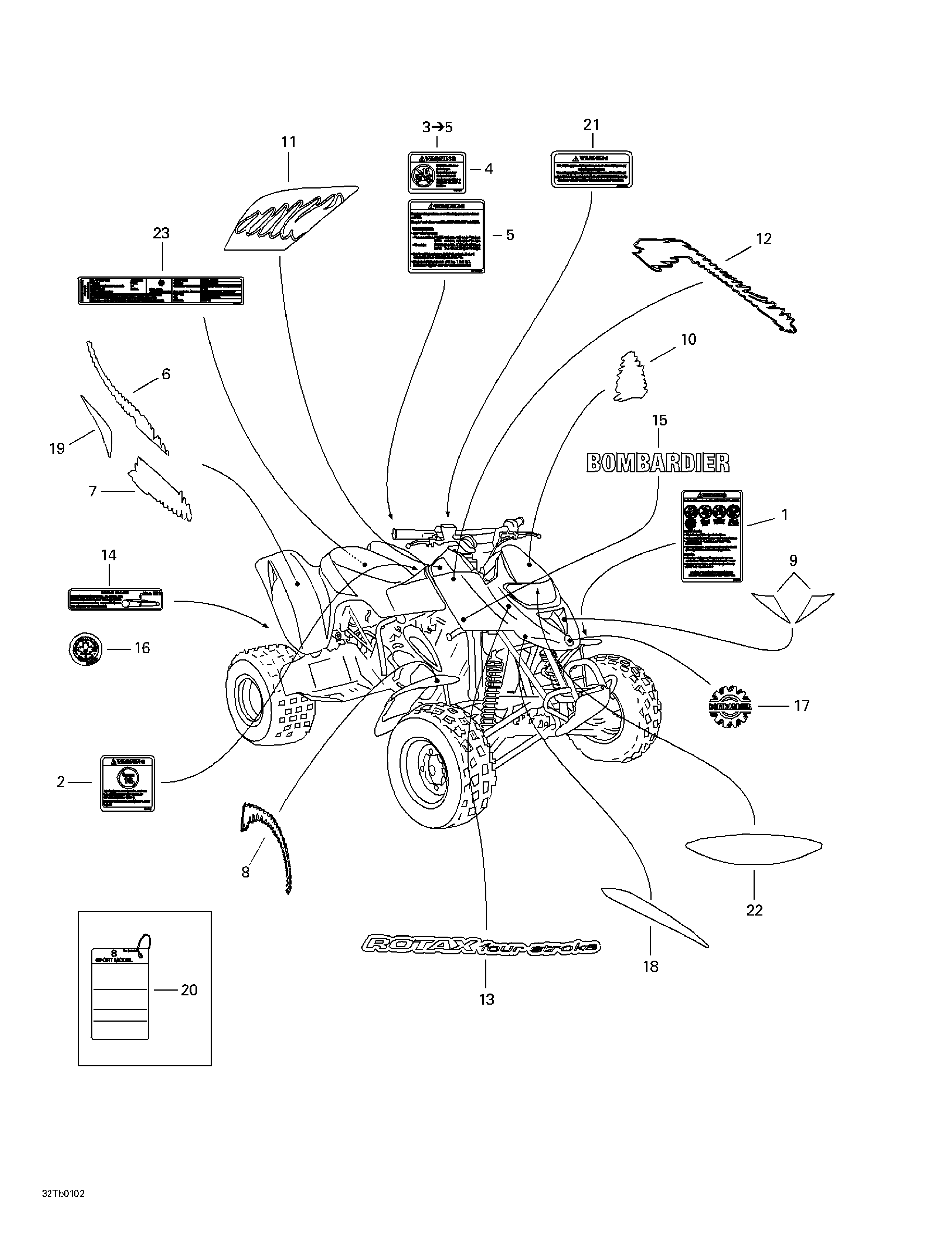

09- Decals для BRP DS 650, 7404 - 2001
-
№АртикулНазвание
-
1704900112 Warning Label (Injuries/Death)Warning Label (Injuries/Death)
-
2704900113 Warning Label (Under 16)Warning Label (Under 16)
-
3704900040 Warning Label Ass'y. Includes 3 - 5.Warning Label Ass'y. Includes 3 - 5.
-
6704900042 R.H. Rear DecalR.H. Rear Decal
-
704900043 L.H. Rear DecalL.H. Rear Decal
-
7704900078 R.H. Rear DecalR.H. Rear Decal
-
704900080 L.H. Rear DecalL.H. Rear Decal
-
8704900044 R.H. Front DecalR.H. Front Decal
-
704900045 L.H. Front DecalL.H. Front Decal
-
9704900046 R.H. Intake DecalR.H. Intake Decal
-
704900047 L.H. Intake DecalL.H. Intake Decal
-
10704900048 Nose DecalNose Decal
-
11704900050 R.H. Tank DecalR.H. Tank Decal
-
704900051 L.H. Tank DecalL.H. Tank Decal
-
12704900052 R.H. Lateral DecalR.H. Lateral Decal
-
704900053 L.H. Lateral DecalL.H. Lateral Decal
-
13704900054 > Decal> Decal
-
14704900055 Instruction DecalInstruction Decal
-
15704900056 > Decal> Decal
-
16704900032 > Decal> Decal
-
17704900088 > Logo> Logo
-
18704900057 R.H. Front ReflectorR.H. Front Reflector
-
704900058 L.H. Front ReflectorL.H. Front Reflector
-
19704900059 R.H. Rear ReflectorR.H. Rear Reflector
-
704900060 L.H. Rear ReflectorL.H. Rear Reflector
-
20704900083 Warning LabelWarning Label
-
21704900089 Warning LabelWarning Label
-
22704900090 Light DecalLight Decal
-
23704900146 Emission LabelEmission Label
