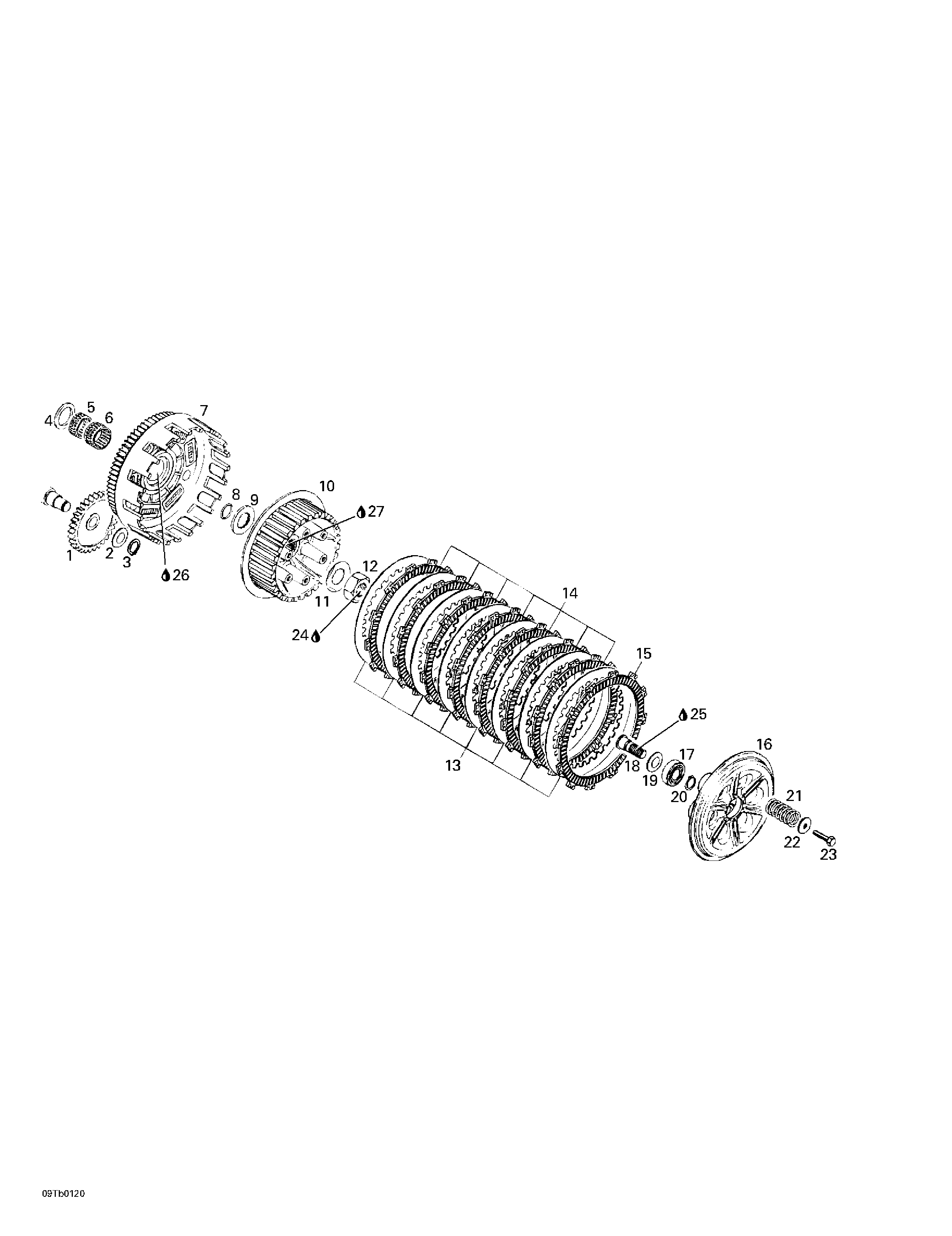

05- Clutch для BRP DS 650, 7449 - 2001
-
№АртикулНазвание
-
1711235272 Oil Pump GearOil Pump Gear
-
2711227401 Thrust WasherThrust Washer
-
3711945650 Retaining RingRetaining Ring
-
4711427460 Thrust WasherThrust Washer
-
5711932930 Needle BearingNeedle Bearing
-
6711232890 Needle BearingNeedle Bearing
-
7711296365 Primary Drive Ass'yPrimary Drive Ass'y
-
8290250890 O-RingO-Ring
-
9711244950 Thrust WasherThrust Washer
-
10711259117 Clutch HubClutch Hub
-
11711245325 Tab WasherTab Washer
-
12711242607 Nut M18Nut M18
-
13711259262 Plate 1,5 mmPlate 1,5 mm
-
14711259210 Friction Plate 3,5 mmFriction Plate 3,5 mm
-
15711259215 Friction Plate 3,5 mmFriction Plate 3,5 mm
-
16711259122 Pressure PlatePressure Plate
-
17711232262 Ball Bearing 6002Ball Bearing 6002
-
18711259202 Rack-Actuation ClutchRack-Actuation Clutch
-
19711227401 Thrust WasherThrust Washer
-
20711945650 Retaining RingRetaining Ring
-
21711239162 Clutch SpringClutch Spring
-
22711244020 WasherWasher
-
23207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
27711297616 Grease, 60 gGrease, 60 g
