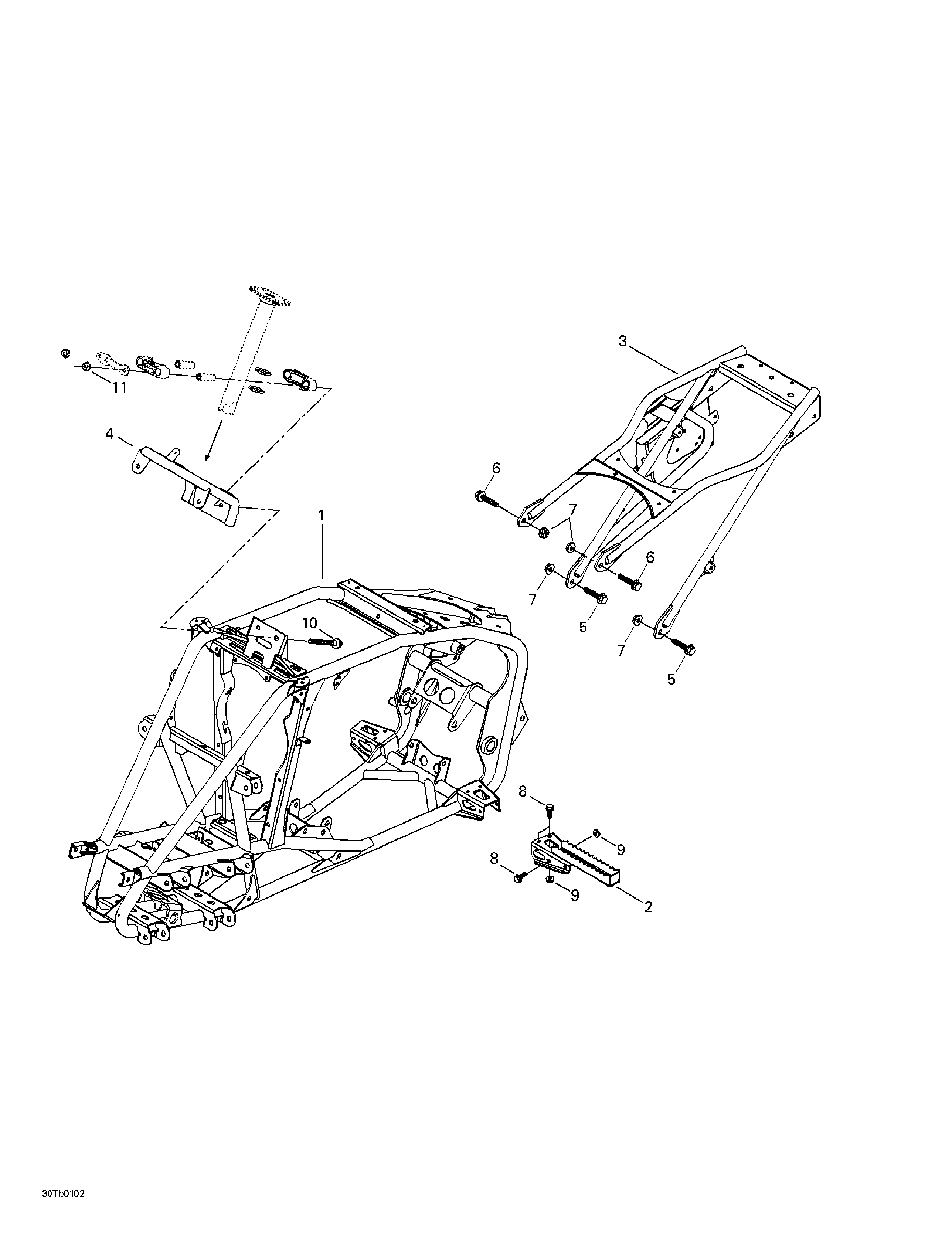

09- Frame для BRP DS 650, 7449 - 2001
-
№АртикулНазвание
-
1705200185 Painted FramePainted Frame
-
2705200313 R.H. FootrestR.H. Footrest
-
705200315 L.H. FootrestL.H. Footrest
-
3705200188 Frame Extension. 7404.Frame Extension. 7404.
-
705200359 Frame Extension. 7449.Frame Extension. 7449.
-
4705200189 Box SupportBox Support
-
5207503046 Hex. Flanged Screw M10 x 30 (Scotch Grip)Hex. Flanged Screw M10 x 30 (Scotch Grip)
-
6207505046 Hex. Flanged Screw M10 x 50 (Scotch Grip)Hex. Flanged Screw M10 x 50 (Scotch Grip)
-
7233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
8207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
9233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
10207687544 Hex. Flanged Screw M8 x 75Hex. Flanged Screw M8 x 75
-
11233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
