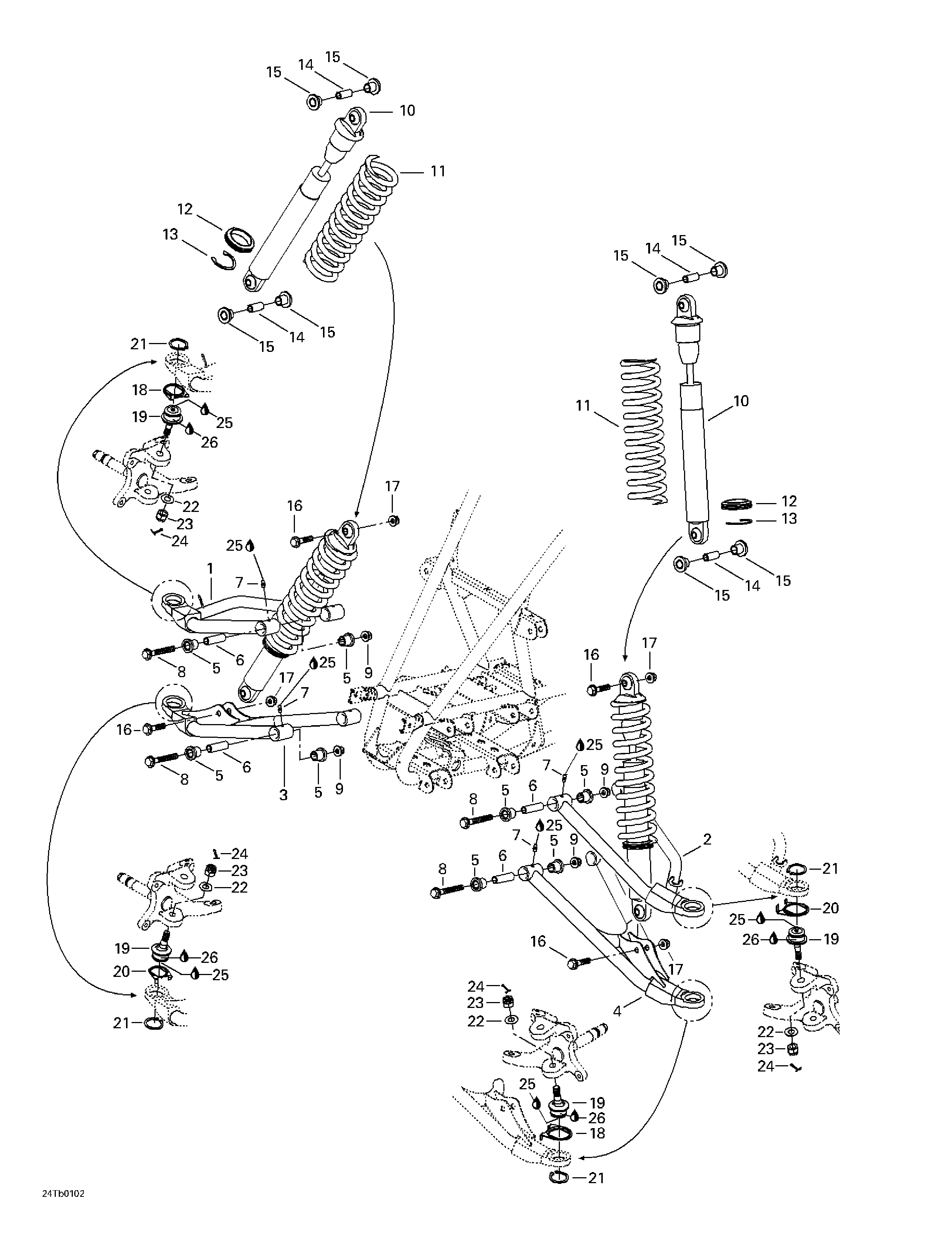

07- Front Suspension для BRP DS 650, 7449 - 2001
-
№АртикулНазвание
-
1706200121 R.H. Upper ArmR.H. Upper Arm
-
2706200122 L.H. Upper ArmL.H. Upper Arm
-
3706200123 R.H. Lower ArmR.H. Lower Arm
-
4706200124 L.H. Lower ArmL.H. Lower Arm
-
5706200063 CushionCushion
-
6706200061 Internal BushingInternal Bushing
-
7408200700 Grease FittingGrease Fitting
-
8207607546 Hex. Flanged Screw M10 x 75Hex. Flanged Screw M10 x 75
-
9233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
10706200081 Front ShockFront Shock
-
11706200082 Front SpringFront Spring
-
12706200085 Spring SeatSpring Seat
-
13706200138 Ring HolderRing Holder
-
14706200097 BushingBushing
-
15706200099 CushionCushion
-
16207605044 Hex. Flanged Screw M10 x 50Hex. Flanged Screw M10 x 50
-
17233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
18706200141 Tab Lock (Lower L.H./Upper R.H.)Tab Lock (Lower L.H./Upper R.H.)
-
19703500082 Ball JointBall Joint
-
20706200142 Tab Lock (Lower R.H./Upper L.H.)Tab Lock (Lower R.H./Upper L.H.)
-
21293370017 CirclipCirclip
-
22503175400 Hardened WasherHardened Washer
-
23232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
24211400017 Cutter PinCutter Pin
-
25293550010 Synthetic GreaseSynthetic Grease
-
26413703100 Loctite 609, 10 mlLoctite 609, 10 ml
