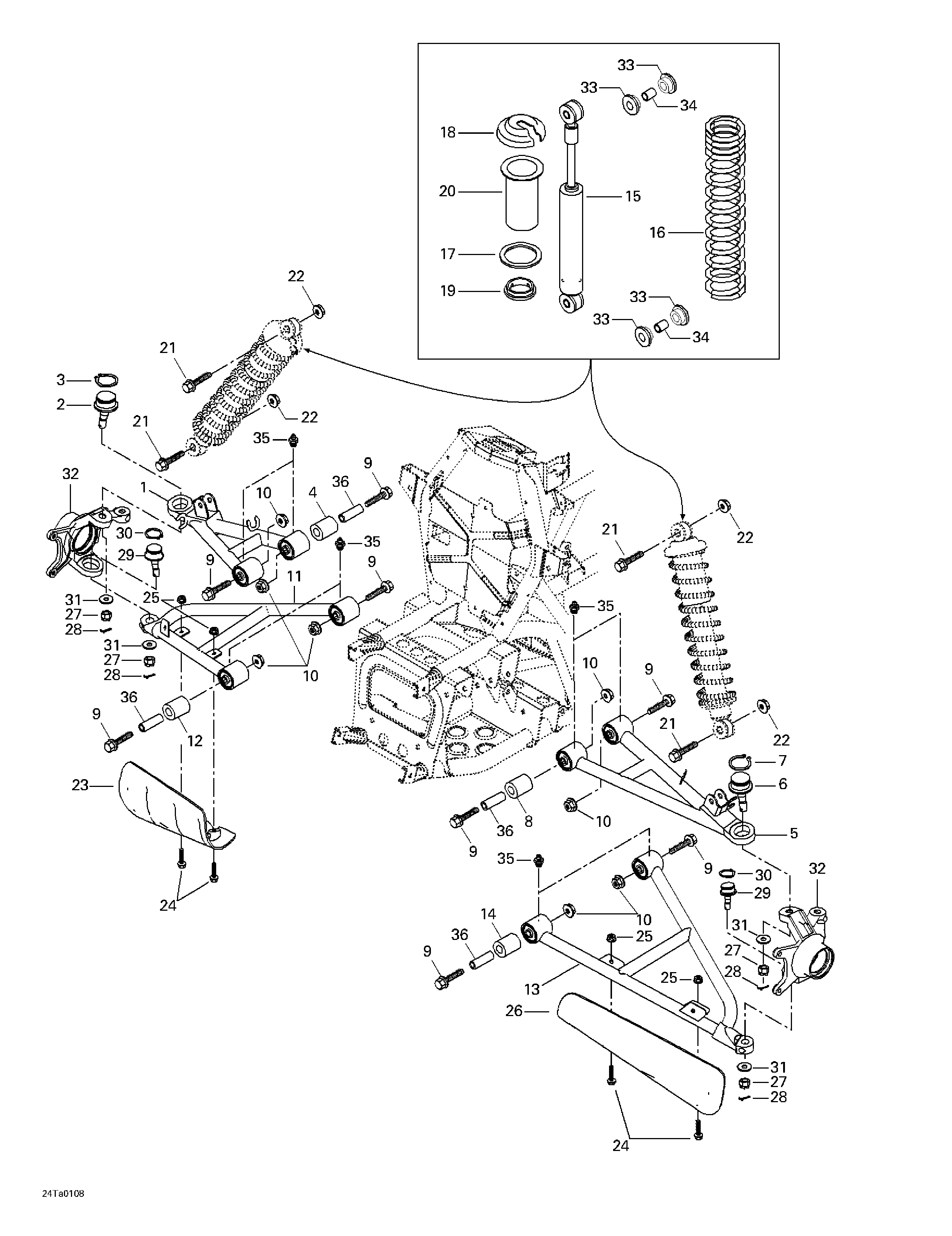

07- Front Suspension для BRP Traxter XL, 7448/7489 - 2001
-
№АртикулНазвание
-
1706200152 R.H. Upper Arm (Black). (7448 Up to S/N v000708)R.H. Upper Arm (Black). (7448 Up to S/N v000708)
-
706200187 R.H. Upper Arm (Black). (7489) (7448 From S/N v000709)R.H. Upper Arm (Black). (7489) (7448 From S/N v000709)
-
2706200091 Ball JointBall Joint
-
3293370009 CirclipCirclip
-
4706200181 CushionCushion
-
5706200155 LH Upper Arm (Black). (7448 Up to S/N v000708)LH Upper Arm (Black). (7448 Up to S/N v000708)
-
706200193 LH Upper Arm (Black). (7489) (7448 From S/N v000709)LH Upper Arm (Black). (7489) (7448 From S/N v000709)
-
6706200091 Ball JointBall Joint
-
7293370009 CirclipCirclip
-
8706200181 CushionCushion
-
9207607046 Hex. Flanged Screw M10 x 70Hex. Flanged Screw M10 x 70
-
10233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
11706200159 R.H. Lower Arm (Black). (7448 Up to S/N v000708)R.H. Lower Arm (Black). (7448 Up to S/N v000708)
-
706200196 R.H. Lower Arm (Black). (7489) (7448 From S/N v000709)R.H. Lower Arm (Black). (7489) (7448 From S/N v000709)
-
12706200181 CushionCushion
-
13706200161 LH Lower Arm (Black). (7448 Up to S/N v000708)LH Lower Arm (Black). (7448 Up to S/N v000708)
-
706200200 LH Lower Arm (Black). (7489) (7448 From S/N v000709)LH Lower Arm (Black). (7489) (7448 From S/N v000709)
-
14706200181 CushionCushion
-
15706200137 Front ShockFront Shock
-
16706200006 Front SpringFront Spring
-
17706000028 Ring HolderRing Holder
-
18503140600 Spring StopperSpring Stopper
-
19706000007 Spring SeatSpring Seat
-
20503139800 ProtectorProtector
-
21207604544 Hex. Flanged Screw M10 x 45Hex. Flanged Screw M10 x 45
-
22233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
23706200007 Arm Protector R.H. (7448 Up to S/N v000708)Arm Protector R.H. (7448 Up to S/N v000708)
-
706200179 Arm Protector R.H. (7489) (7448 From S/N v000709)Arm Protector R.H. (7489) (7448 From S/N v000709)
-
24207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
25233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
26706200009 Arm Protector L.H. (7448 Up to S/N v000708)Arm Protector L.H. (7448 Up to S/N v000708)
-
706200180 Arm Protector L.H. (7489) (7448 From S/N v000709)Arm Protector L.H. (7489) (7448 From S/N v000709)
-
27232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
28211400017 Cotter PinCotter Pin
-
29706200091 Ball JointBall Joint
-
30293370009 CirclipCirclip
-
31503175400 Hardened WasherHardened Washer
-
33706200185 CushionCushion
-
34706200186 Interior BushingInterior Bushing
-
35408200700 Grease Fitting (7423 to 7428)Grease Fitting (7423 to 7428)
-
36706200182 Interior BushingInterior Bushing
