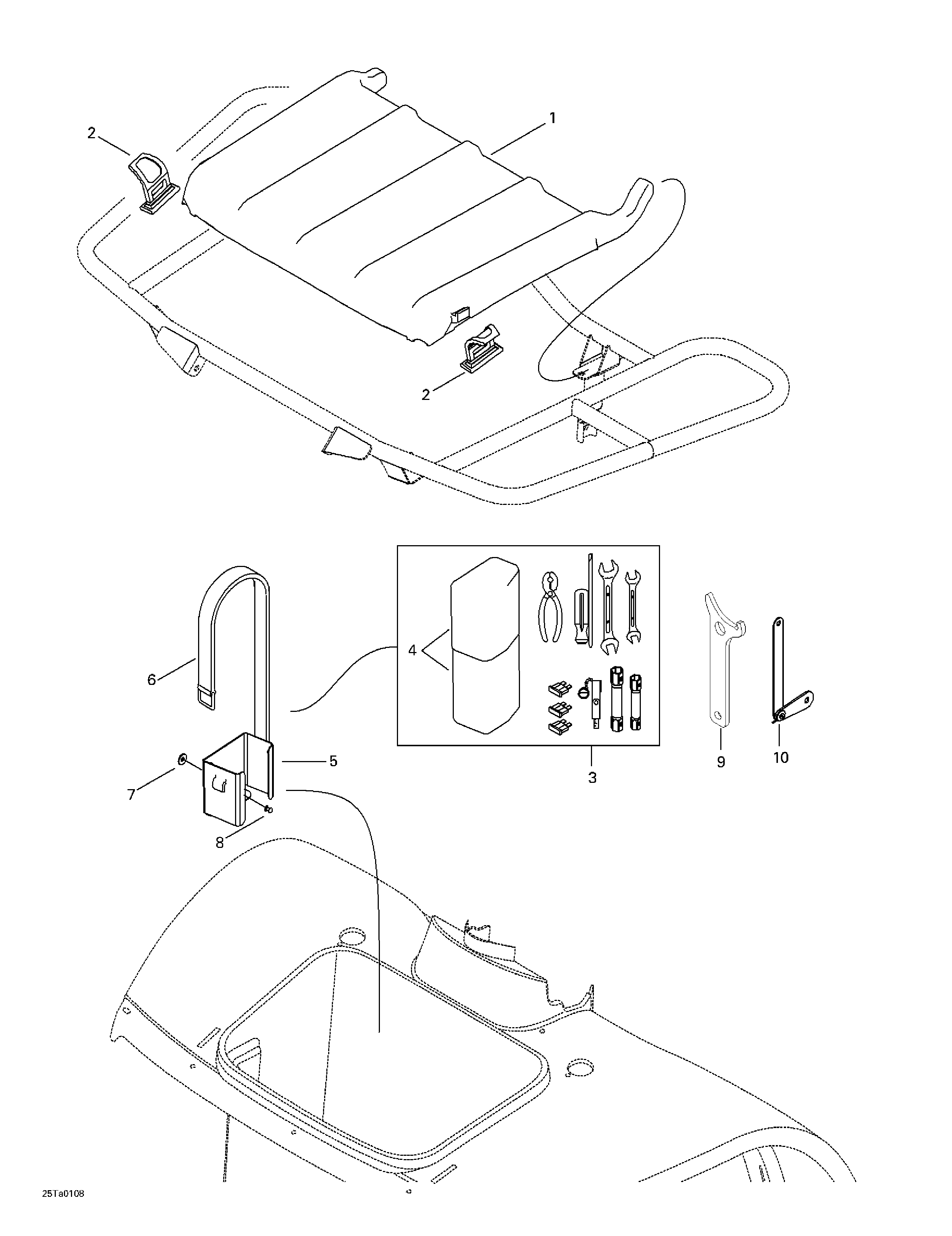

09- Front Tray для BRP Traxter XL, 7448/7489 - 2001
-
№АртикулНазвание
-
1708200002 Storage CoverStorage Cover
-
2708200003 Latch, Storage CoverLatch, Storage Cover
-
3295000174 Tool Box With Tools. Includes 3 - 4.Tool Box With Tools. Includes 3 - 4.
-
4572036310 Tool BoxTool Box
-
5708200007 Tray Support Ass'y. Includes 5 - 6.Tray Support Ass'y. Includes 5 - 6.
-
5708200013 Tray SupportTray Support
-
6293850021 Rubber StrapRubber Strap
-
7391301600 Flat WasherFlat Washer
-
8293150008 Rivet 3/16Rivet 3/16
-
9529007800 Wrench (Shock). (7448 Up to S/N v000708)Wrench (Shock). (7448 Up to S/N v000708)
-
529032900 Wrench (Shock). (7489) (7448 From S/N v000709)Wrench (Shock). (7489) (7448 From S/N v000709)
-
10529035599 Wrench Ass'y (Transmission)Wrench Ass'y (Transmission)
