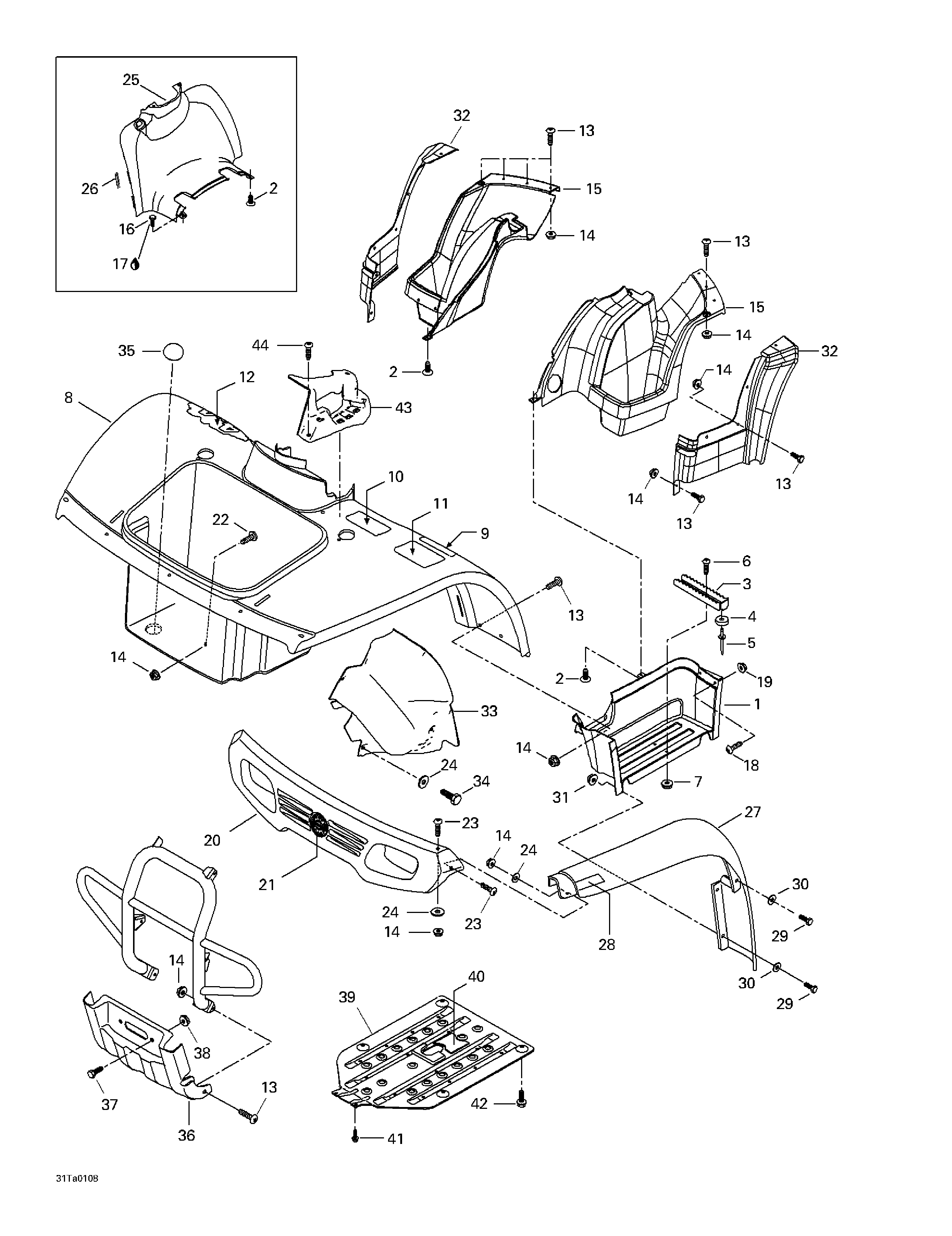

09- Body And Accessories для BRP Traxter XL, 7448/7489 - 2001

-
№АртикулНазвание
-
1705000017 Foot Well RHFoot Well RH
-
705000018 Foot Well LHFoot Well LH
-
2293730011 DartDart
-
3705000228 Foot Peg (Black)Foot Peg (Black)
-
4415018100 Rubber StopperRubber Stopper
-
5390400700 Pop Rivet (Black)Pop Rivet (Black)
-
6211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
7233261414 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
8703500067 Front Fender Kit (Green). Includes 8 - 12.Front Fender Kit (Green). Includes 8 - 12.
-
9704900034 Warning Label (Front Left Side). Includes 9 - 10.Warning Label (Front Left Side). Includes 9 - 10.
-
11704900007 Warning Label (Drive Select Lever)Warning Label (Drive Select Lever)
-
12704900068 Label Rear RHLabel Rear RH
-
13211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
14233261414 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
15705000221 Rear Fender R.H. (Green)Rear Fender R.H. (Green)
-
705000222 Rear Fender LH (Green)Rear Fender LH (Green)
-
16207661244 Screw Hex. Flanged M6 x 12Screw Hex. Flanged M6 x 12
-
17293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
18211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
19233261414 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
20703500011 Front Fascia Kit. Includes 20 - 21.Front Fascia Kit. Includes 20 - 21.
-
21704900027 Bombardier LogoBombardier Logo
-
22211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
23211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
24224060201 Washer FlatWasher Flat
-
25705000010 Tank CoverTank Cover
-
26570023800 LatchLatch
-
27703500014 LH Front Mudguard Kit. Includes 27 - 28.LH Front Mudguard Kit. Includes 27 - 28.
-
703500015 R.H. Front Mudguard KitR.H. Front Mudguard Kit
-
28705000083 LH Reflector Front (Orange)LH Reflector Front (Orange)
-
705000026 R.H. Reflector Front (Orange)R.H. Reflector Front (Orange)
-
29207162044 Screw Hex. M6 x 20Screw Hex. M6 x 20
-
30224060201 Washer FlatWasher Flat
-
31233261414 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
32705000224 LH Rear MudguardLH Rear Mudguard
-
705000225 R.H. Rear MudguardR.H. Rear Mudguard
-
33705000133 Protector L.HProtector L.H
-
705000134 Protector R.HProtector R.H
-
34210661940 Screw Hex. M6.3 x 19Screw Hex. M6.3 x 19
-
35570041600 Rubber CoverRubber Cover
-
36705000135 Protection PlateProtection Plate
-
37207602544 Screw Hex. Flanged M10 x 25Screw Hex. Flanged M10 x 25
-
38233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
39705000196 Plate Ass'y. Includes 39 - 40.Plate Ass'y. Includes 39 - 40.
-
40293830084 Rubber ProtectorRubber Protector
-
41207561644 Screw Hex. Flanged M6 x 16 (S. Grip)Screw Hex. Flanged M6 x 16 (S. Grip)
-
42207582044 Screw Hex. Flanged M8 x 20 (S. Grip)Screw Hex. Flanged M8 x 20 (S. Grip)
-
43705000081 IndicatorIndicator
-
44414745900 Screw PhillipsScrew Phillips
