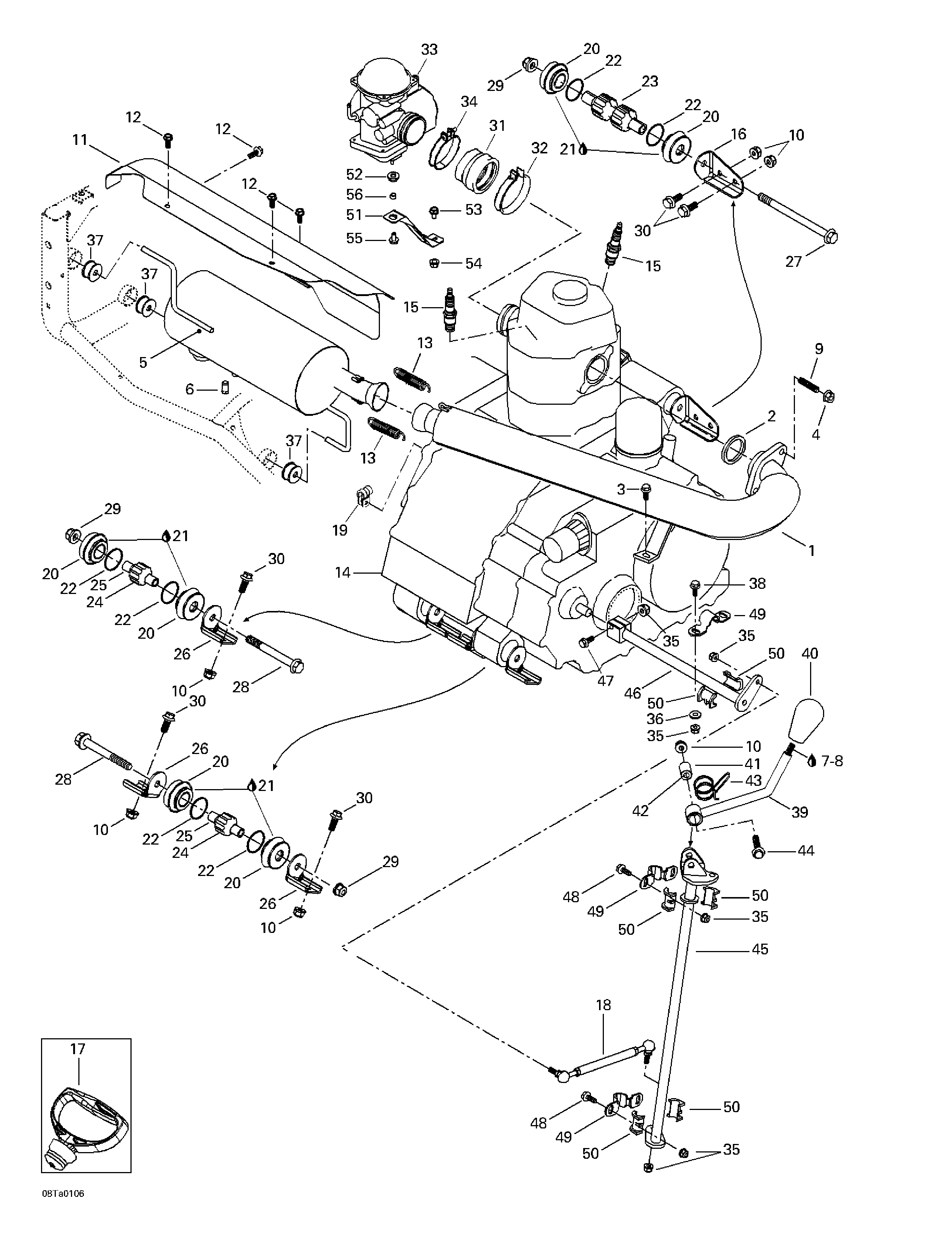

01- Exhaust System для BRP Traxter, 7459/7460/7465/7466 - 2001
-
№АртикулНазвание
-
1707600062 Tuned PipeTuned Pipe
-
2707600003 GasketGasket
-
3207581244 Hex. Flanged Screw M8 x 12. (Scotch Grip)Hex. Flanged Screw M8 x 12. (Scotch Grip)
-
4233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5707600080 Muffler. Includes 5 - 6.Muffler. Includes 5 - 6.
-
6250500003 Drain PlugDrain Plug
-
7293800041 Loctite-Primer NLoctite-Primer N
-
8293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
9711940366 Stud M8 x 23/20Stud M8 x 23/20
-
10233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
11707600076 Heat ShieldHeat Shield
-
12210261040 Hex. Screw M6 x 10Hex. Screw M6 x 10
-
13415107100 SpringSpring
-
14707000041 Rotax 4 Strokes Engine >Rotax 4 Strokes Engine >
-
15707000008 Spark Plug (NGK / DR8EA)Spark Plug (NGK / DR8EA)
-
16707000082 Engine BracketEngine Bracket
-
17711852515 Starting GripStarting Grip
-
18707000068 Tie-Rod Ass'yTie-Rod Ass'y
-
19705600232 Cable Clip. (7459 - 7460 - 7467 - 7468 - 7472 - 7481)Cable Clip. (7459 - 7460 - 7467 - 7468 - 7472 - 7481)
-
705600040 Cable Clip. (7465 - 7466) Traxter.Cable Clip. (7465 - 7466) Traxter.
-
20707000002 Anti-Vibration MountAnti-Vibration Mount
-
21293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
22293300050 O-RingO-Ring
-
23707000019 Support BushingSupport Bushing
-
24707000030 Support Bushing. Includes 24 - 25.Support Bushing. Includes 24 - 25.
-
25707000004 Lower Bushing R.HLower Bushing R.H
-
26705200197 Engine BracketEngine Bracket
-
27230604044 Hex. Flanged Screw M10 x 140Hex. Flanged Screw M10 x 140
-
28207609544 Hex. Flanged Screw M10 x 95Hex. Flanged Screw M10 x 95
-
29233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
30207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
31707000037 Carburetor AdaptorCarburetor Adaptor
-
32512059062 ClampClamp
-
33707200157 Carburetor BSR 33-29Carburetor BSR 33-29
-
34293650094 Gear ClampGear Clamp
-
35233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
36707000080 Shim 1.0 mmShim 1.0 mm
-
707000081 Shim 2.0 mmShim 2.0 mm
-
37707600012 RubberRubber
-
38207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
39707000010 Lever Ass'yLever Ass'y
-
40705500022 Lever ButtonLever Button
-
41705500193 Nylon BushingNylon Bushing
-
42705500150 Aluminum BushingAluminum Bushing
-
43705500024 Lever SpringLever Spring
-
44207685044 Hex. Flanged Screw M8 x 50Hex. Flanged Screw M8 x 50
-
45705500134 Upper TubeUpper Tube
-
46705500135 Lower TubeLower Tube
-
47207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
48207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
49705500041 Clamp RetainerClamp Retainer
-
50705500033 Half RingHalf Ring
-
51707200159 Carburetor SuportCarburetor Suport
-
52293720053 GrommetGrommet
-
53207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
54233261414 Hex. Nut M6Hex. Nut M6
-
55207341644 Hex. Screw M4 x 16. (Scotch Grip)Hex. Screw M4 x 16. (Scotch Grip)
-
56707000181 SpacerSpacer
