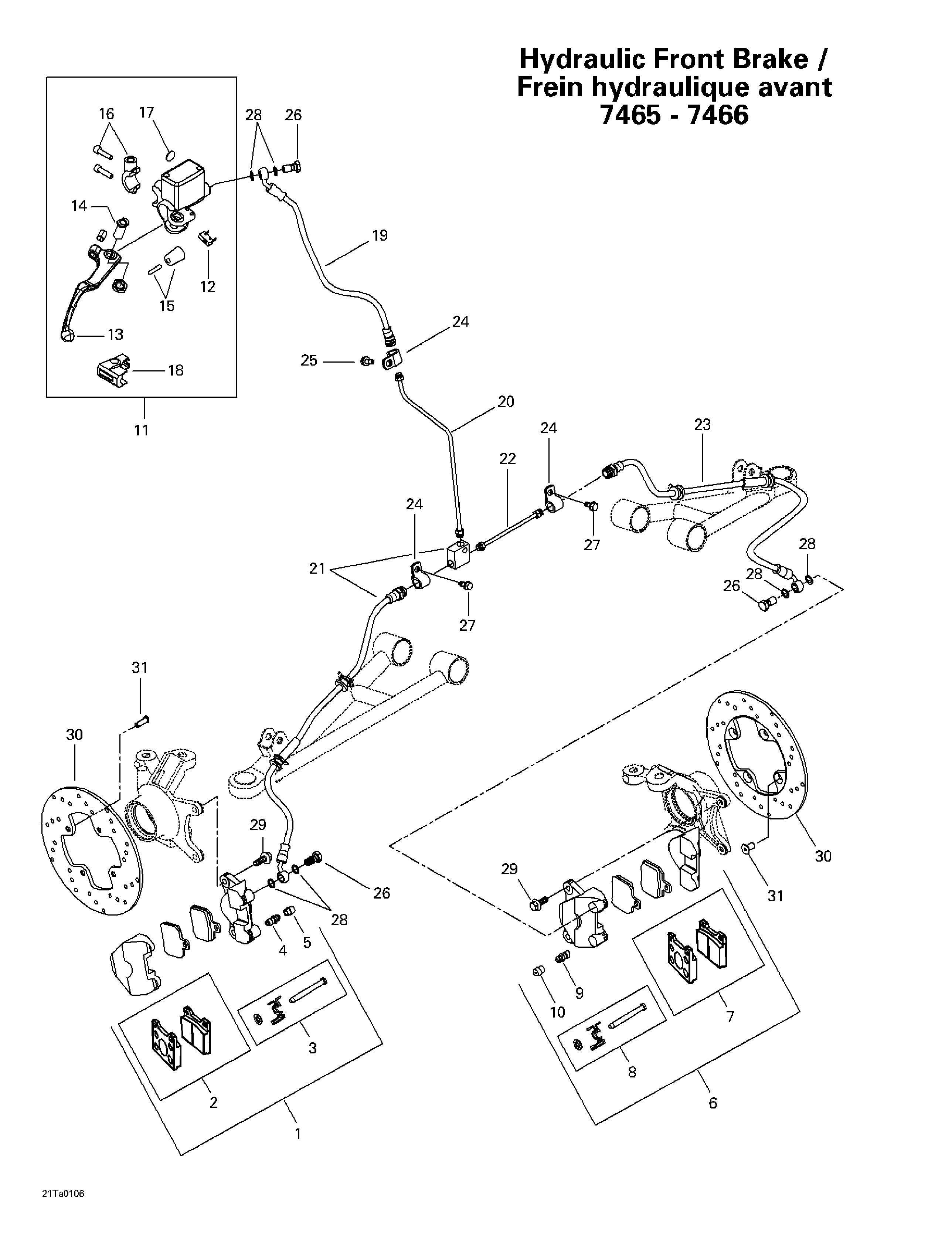

06- Hydraulic Front Brake (7465 - 7466) для BRP Traxter, 7459/7460/7465/7466 - 2001
-
№АртикулНазвание
-
1705600028 R.H. Caliper Ass'y. Includes 1 - 5. Traxter.R.H. Caliper Ass'y. Includes 1 - 5. Traxter.
-
2705600041 Brake Pad. Traxter.Brake Pad. Traxter.
-
3705600110 Retainer Kit. Traxter.Retainer Kit. Traxter.
-
4705600111 Bleeder Screw. Traxter.Bleeder Screw. Traxter.
-
5414989700 Cap. Traxter.Cap. Traxter.
-
6705600029 LH Caliper Ass'y. Includes 6 - 10. Traxter.LH Caliper Ass'y. Includes 6 - 10. Traxter.
-
7705600041 Brake Pad. Traxter.Brake Pad. Traxter.
-
8705600110 Retainer Kit. Traxter.Retainer Kit. Traxter.
-
9705600111 Bleeder Screw. Traxter.Bleeder Screw. Traxter.
-
10414989700 Cap. Traxter.Cap. Traxter.
-
11705600005 Master Cylinder Ass'y. Includes 11 - 18. Traxter.Master Cylinder Ass'y. Includes 11 - 18. Traxter.
-
12705600112 Microswitch. Traxter.Microswitch. Traxter.
-
13705600113 Arm Lever. Traxter.Arm Lever. Traxter.
-
14414990200 Pin Lever. Traxter.Pin Lever. Traxter.
-
15414990300 Cap. Traxter.Cap. Traxter.
-
16414990400 Clamp. Traxter.Clamp. Traxter.
-
17414990600 Window. Traxter.Window. Traxter.
-
18705600114 Boot Rubber. Traxter.Boot Rubber. Traxter.
-
19705600007 Brake Handle Hose. Traxter.Brake Handle Hose. Traxter.
-
20705600036 Vertical Tube. Traxter.Vertical Tube. Traxter.
-
21705600020 Flexible Hose R.H. Traxter.Flexible Hose R.H. Traxter.
-
22705600038 Horizontal Tube. Traxter.Horizontal Tube. Traxter.
-
23705600059 Flexible Hose L.H. Traxter.Flexible Hose L.H. Traxter.
-
24705600040 Tube Clip. Traxter.Tube Clip. Traxter.
-
25210261680 Hex. Flanged Screw M6 x 16. Traxter.Hex. Flanged Screw M6 x 16. Traxter.
-
26414920500 Banjo Bolt. Traxter.Banjo Bolt. Traxter.
-
27210661940 Hex. Drilling Screw M6.3 x19. Traxter.Hex. Drilling Screw M6.3 x19. Traxter.
-
28414920600 Washer. Traxter.Washer. Traxter.
-
29207582044 Hex. Flanged Screw M8 x 20. (Scotch Grip) Traxter.Hex. Flanged Screw M8 x 20. (Scotch Grip) Traxter.
-
30705600003 Brake Disc 205 mm (Front). Traxter.Brake Disc 205 mm (Front). Traxter.
-
31235381646 Screw M8 x 16. (Scotch Grip) Traxter.Screw M8 x 16. (Scotch Grip) Traxter.
