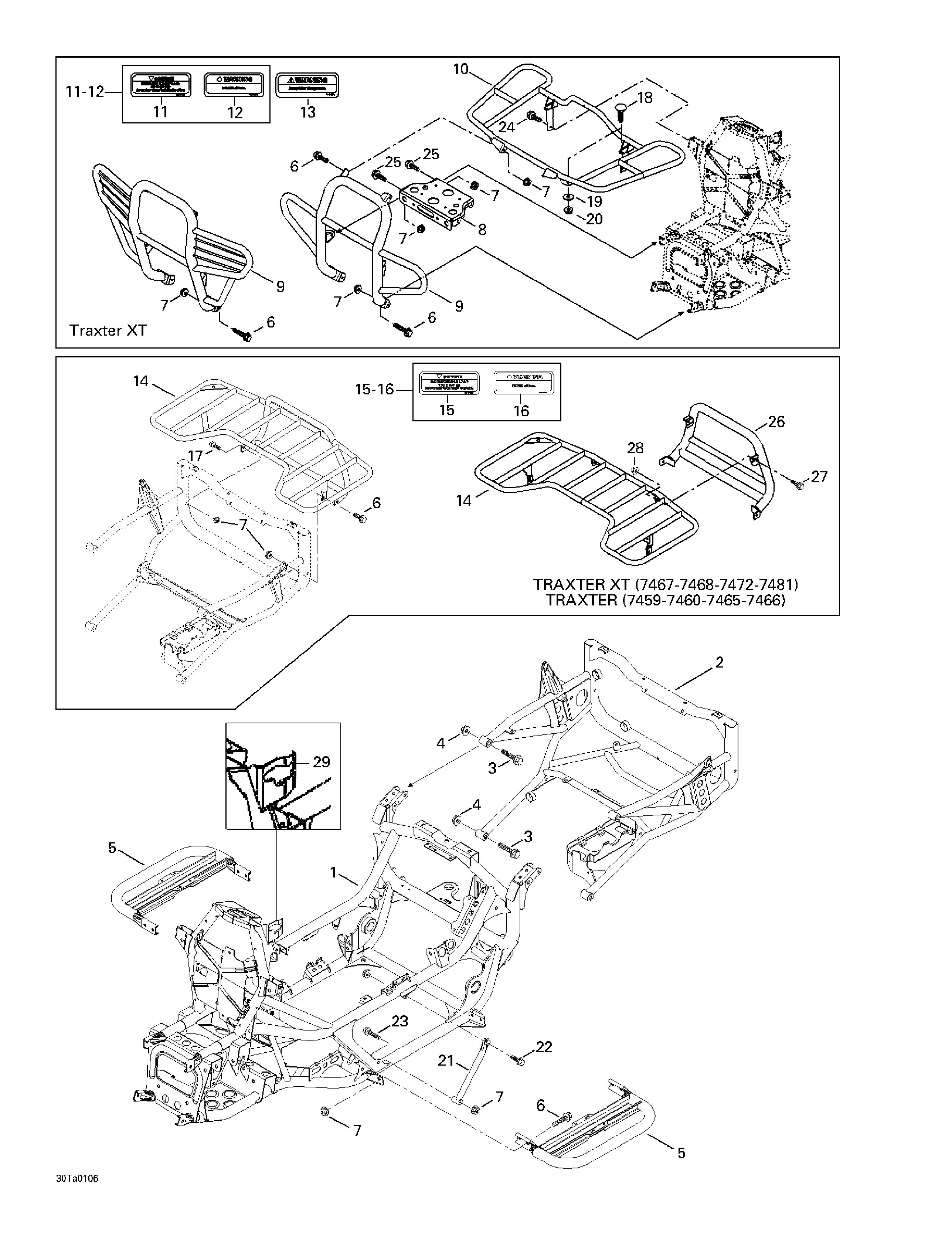

09- Frame And Luggage Racks для BRP Traxter, 7459/7460/7465/7466 - 2001
-
№АртикулНазвание
-
1705200411 Frame - Black. (7459-7460-7467-7468-7472-7481)Frame - Black. (7459-7460-7467-7468-7472-7481)
-
705200364 Frame - Black. (7465 - 7466) Traxter.Frame - Black. (7465 - 7466) Traxter.
-
2705200254 Frame ExtentionFrame Extention
-
3207605544 Screw Hex. Flanged M10 x 55Screw Hex. Flanged M10 x 55
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5705000008 FootrestFootrest
-
6207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
207682544 Screw Hex. Flanged M8 x 25. Traxter XT.Screw Hex. Flanged M8 x 25. Traxter XT.
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8705200196 Winch LatchWinch Latch
-
9705000001 Front Bumper. (7459 - 7460 - 7465 - 7466) Traxter.Front Bumper. (7459 - 7460 - 7465 - 7466) Traxter.
-
705000175 Front Bumper. (7467 - 7468 - 7472 - 7481) Traxter XT.Front Bumper. (7467 - 7468 - 7472 - 7481) Traxter XT.
-
10703500053 Front Luggage Rack Ass'y. Includes 10 - 13.Front Luggage Rack Ass'y. Includes 10 - 13.
-
11704900037 Front Cargo Warning Labels. Includes 11 - 12.Front Cargo Warning Labels. Includes 11 - 12.
-
13704900038 Warning Label. (Cover Attachment)Warning Label. (Cover Attachment)
-
14703500059 Rear Luggage Rack Ass'y. Includes 14 - 16.Rear Luggage Rack Ass'y. Includes 14 - 16.
-
15704900036 Rear Cargo Warning Labels. Includes 15 - 16.Rear Cargo Warning Labels. Includes 15 - 16.
-
17207685044 Screw Hex. Flanged M8 x 50Screw Hex. Flanged M8 x 50
-
18250000035 Carriage Bolt M6 x 25Carriage Bolt M6 x 25
-
19224060201 Flat WasherFlat Washer
-
20233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21705200143 Removable BraceRemovable Brace
-
22207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
23207685044 Screw Hex. Flanged M8 x 50Screw Hex. Flanged M8 x 50
-
24207582044 Screw Hex. Flanged M8 x 20. (Scotch Grip)Screw Hex. Flanged M8 x 20. (Scotch Grip)
-
25207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
207682544 Screw Hex. Flanged M8 x 25Screw Hex. Flanged M8 x 25
-
26705000166 Rear Bumper Silver. Traxter XT.Rear Bumper Silver. Traxter XT.
-
705000210 Rear Bumper Silver. Traxter.Rear Bumper Silver. Traxter.
-
27207682046 Srew Hex. Flanged M8 x 20Srew Hex. Flanged M8 x 20
-
28233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
29705200351 Shift PaternShift Patern
