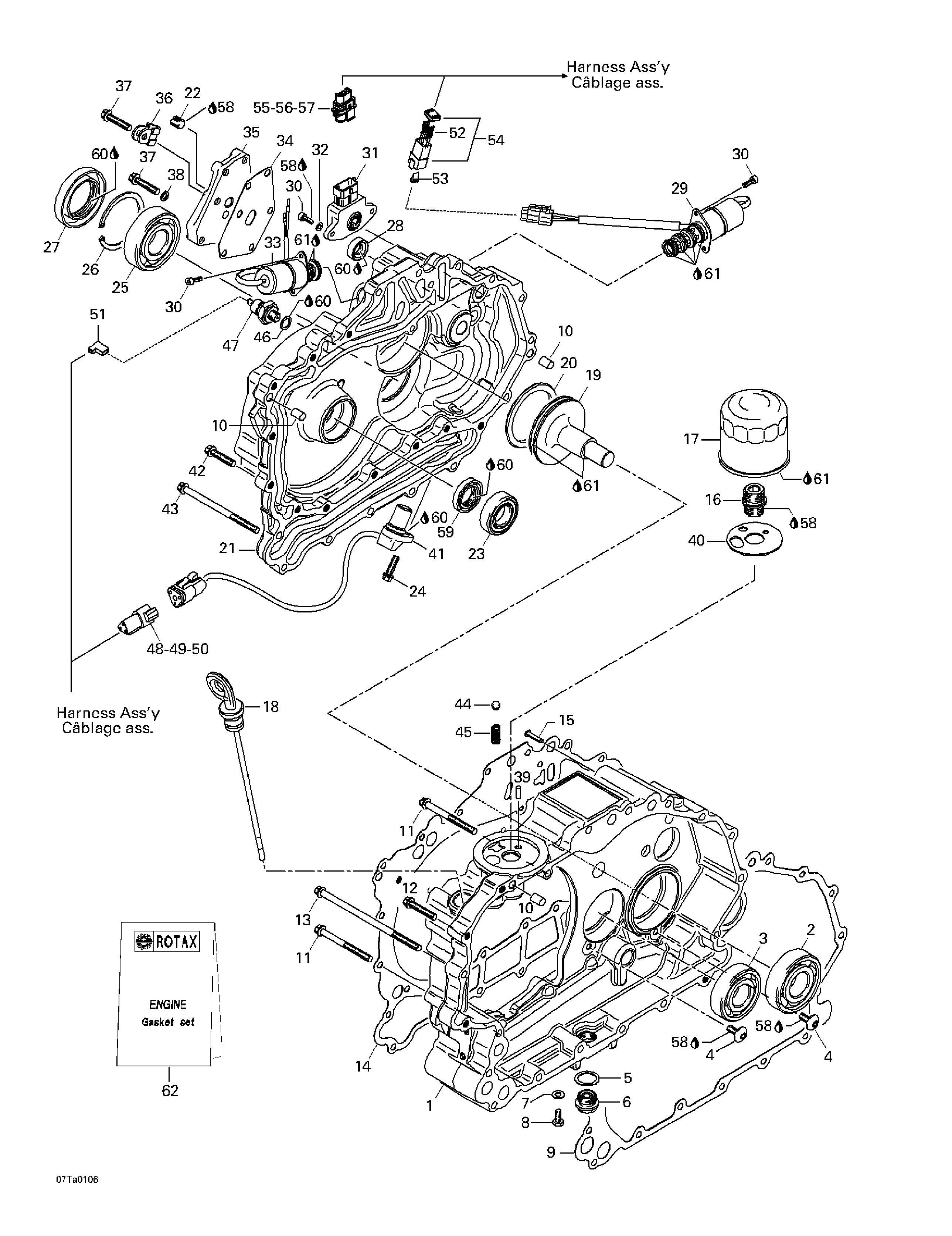

01- Clutch Housing And Cover для BRP Traxter XT, 7467/7468/7472/7481 - 2001
-
№АртикулНазвание
-
1711211921 Clutch HousingClutch Housing
-
2420932825 Ball Bearing 6305Ball Bearing 6305
-
3711632200 Ball Bearing 63/22Ball Bearing 63/22
-
4711241531 Flat Head Screw M6 x 16Flat Head Screw M6 x 16
-
5711552280 O-RingO-Ring
-
6711840277 Drain PlugDrain Plug
-
7404146600 Seal WasherSeal Washer
-
8711241751 Screw Hex. M6 x 16Screw Hex. M6 x 16
-
9711650582 Gasket, Clutch HousingGasket, Clutch Housing
-
10290632010 Pin M8 x 12Pin M8 x 12
-
11711940576 Screw Hex. Flanged M6 x 70Screw Hex. Flanged M6 x 70
-
12711941126 Screw Hex. Flanged M6 x 35Screw Hex. Flanged M6 x 35
-
13711640371 Screw Hex. Flanged M6 x 130Screw Hex. Flanged M6 x 130
-
14711650592 Gasket, Clutch CoverGasket, Clutch Cover
-
15711229170 Groove Pin M4 x 20Groove Pin M4 x 20
-
16711924420 Oil Filter NippleOil Filter Nipple
-
17711256620 Oil FilterOil Filter
-
18711256610 Oil DipstickOil Dipstick
-
19711257056 Disengaging Piston. Includes 19 - 20.Disengaging Piston. Includes 19 - 20.
-
20711650550 K-Grooved RingK-Grooved Ring
-
21711211811 Clutch CoverClutch Cover
-
22420240480 Plug ScrewPlug Screw
-
23711232190 Ball Bearing 6304Ball Bearing 6304
-
24711241861 Screw Hex. Flanged M6 x 20Screw Hex. Flanged M6 x 20
-
25420932825 Ball Bearing 6305Ball Bearing 6305
-
26711445070 Retaining RingRetaining Ring
-
27711650680 Oil SealOil Seal
-
28711250455 Oil SealOil Seal
-
29711256550 Soleno‹d ValveSoleno‹d Valve
-
30711440291 Socket Screw M4 x 12Socket Screw M4 x 12
-
31711265600 Potentiometer (Sub Transmission)Potentiometer (Sub Transmission)
-
32420244073 Washer 4.3Washer 4.3
-
33711256560 Pressure ValvePressure Valve
-
34711650620 GasketGasket
-
35711211935 Oil Duct CoverOil Duct Cover
-
36711853412 Cable ClipCable Clip
-
37711241941 Screw Hex. Flanged M6 x 30Screw Hex. Flanged M6 x 30
-
38711230415 Seal WasherSeal Washer
-
39711232710 Needle PinNeedle Pin
-
40711627370 Oil Filter WasherOil Filter Washer
-
41711265622 Speed SensorSpeed Sensor
-
42711241941 Screw Hex. Flanged M6 x 30Screw Hex. Flanged M6 x 30
-
43711640361 Screw Hex. Flanged M6 x 100Screw Hex. Flanged M6 x 100
-
44711232370 BallBall
-
45711238050 SpringSpring
-
46711230150 Oil SealOil Seal
-
47711256640 Oil Pressure SwitchOil Pressure Switch
-
48409297000 Male Housing DeutchMale Housing Deutch
-
49278000631 Male Terminal DeutchMale Terminal Deutch
-
50409207600 Male Lock DeutchMale Lock Deutch
-
51409010300 Female Terminal YasakiFemale Terminal Yasaki
-
52409014800 Male Terminal DeutschMale Terminal Deutsch
-
53710000046 Male Lock 4 CircMale Lock 4 Circ
-
54710000045 Male Housing 4 CircMale Housing 4 Circ
-
55278000997 Female Housing 3 circ. BoschFemale Housing 3 circ. Bosch
-
56278000999 Wire Seal AmpWire Seal Amp
-
57278000998 Female Terminal AmpFemale Terminal Amp
-
58293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
59290930390 Oil SealOil Seal
-
60413707000 Dow Corning 111Dow Corning 111
-
62711296375 Gasket Set EngineGasket Set Engine
