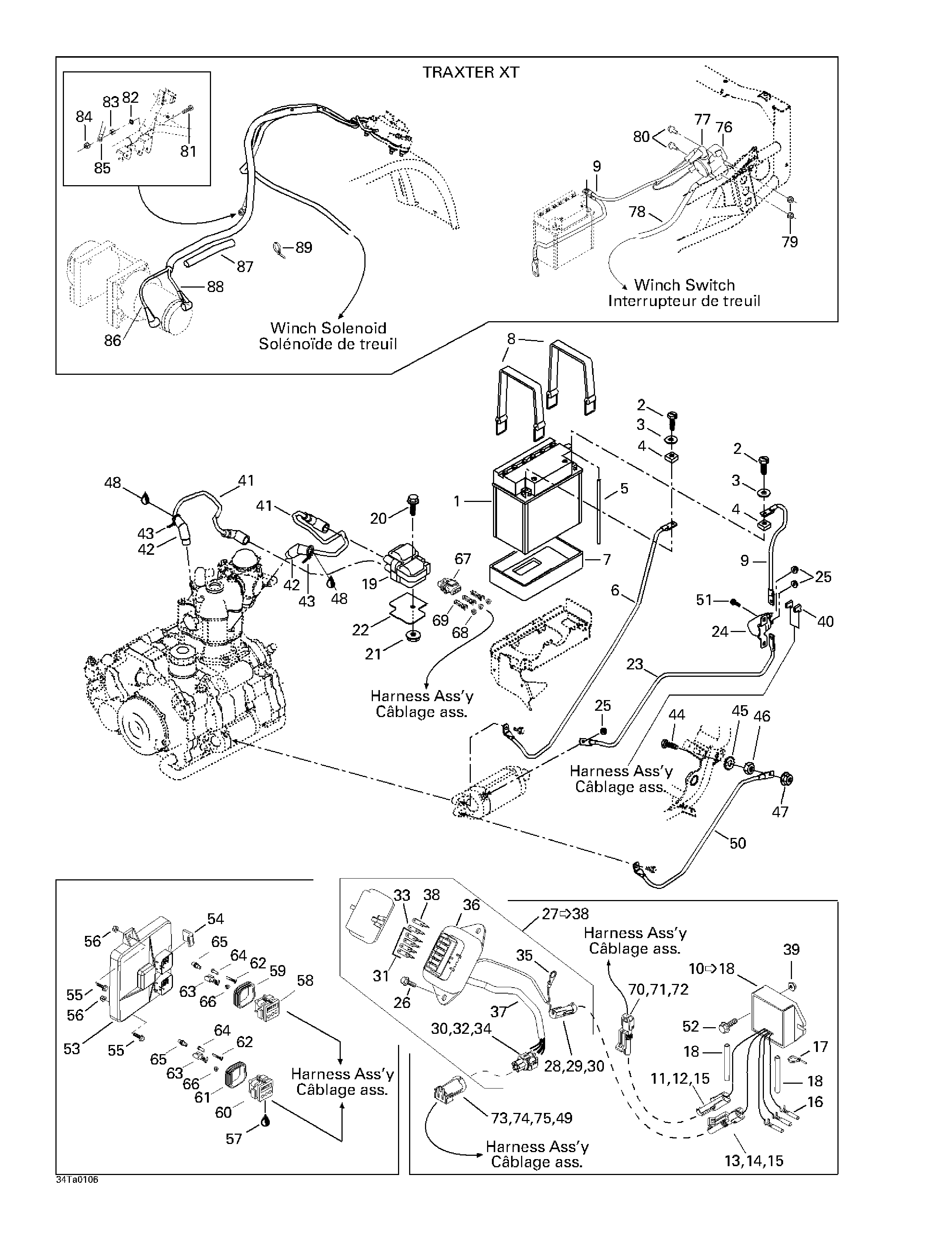

10- Battery And Electrical Accessories для BRP Traxter XT, 7467/7468/7472/7481 - 2001
-
№АртикулНазвание
-
1278000712 BatteryBattery
-
2211000045 Screw HexScrew Hex
-
3211200018 Flat Washer 6 mmFlat Washer 6 mm
-
4211100022 Nut M6Nut M6
-
5415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
6710000211 Ground Cable. (7459-7460-7467-7468-7472-481)Ground Cable. (7459-7460-7467-7468-7472-481)
-
710000023 Ground Cable. (7465 - 7466) Traxter.Ground Cable. (7465 - 7466) Traxter.
-
7278001234 Battery Lower PadBattery Lower Pad
-
8293850021 Rubber StrapRubber Strap
-
9710000011 Positive Cable. Traxter.Positive Cable. Traxter.
-
710000135 Positive Cable. Traxter XT.Positive Cable. Traxter XT.
-
10710000100 Voltage Regulator. Includes 10 - 18.Voltage Regulator. Includes 10 - 18.
-
11278000222 Male Term. (18 Gauge) (Packard)Male Term. (18 Gauge) (Packard)
-
12278000161 Female Housing (1 Circuit) (Packard)Female Housing (1 Circuit) (Packard)
-
13278000223 Female Terminal (18 Gauge) (Packard)Female Terminal (18 Gauge) (Packard)
-
14278000219 Male Housing (1 Circuit) (Packard)Male Housing (1 Circuit) (Packard)
-
15278000218 Wire Seal (16-18 Gauge)(Packard)Wire Seal (16-18 Gauge)(Packard)
-
16710000034 Female Term. (14-16 Gauge)(Deutsch)Female Term. (14-16 Gauge)(Deutsch)
-
17293750001 Tie RapTie Rap
-
18409901300 Vinyl Temp (meter)Vinyl Temp (meter)
-
19278001546 Ignition CoilIgnition Coil
-
20207664544 Screw Hex. Flanged M6 x 45. (7465 -7466) Traxter.Screw Hex. Flanged M6 x 45. (7465 -7466) Traxter.
-
207665044 Screw Hex. Flanged M6 x 50. (7459-7460-7467-7468-7472-7481)Screw Hex. Flanged M6 x 50. (7459-7460-7467-7468-7472-7481)
-
21233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
22710000073 Insulator PadInsulator Pad
-
23710000136 Positive CablePositive Cable
-
24710000111 Starter RelayStarter Relay
-
25232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
26210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
27710000092 Fuse Hoder. Includes 27 - 38.Fuse Hoder. Includes 27 - 38.
-
28409004300 Male Term. (16 Gauge)(Packard)Male Term. (16 Gauge)(Packard)
-
29278000161 Female Housing (1 Circuit)(Packard)Female Housing (1 Circuit)(Packard)
-
30278000218 Wire Seal (16-18 Gauge)(Packard)Wire Seal (16-18 Gauge)(Packard)
-
710000048 Wire Seal (Packard)Wire Seal (Packard)
-
31278000343 Fuse 15 AmpFuse 15 Amp
-
32409007300 Female Term. (14 auge) (Packard)Female Term. (14 auge) (Packard)
-
33278001143 Fuse 20 AmpFuse 20 Amp
-
34710000106 Male Housing (5 Circ.) (Packard)Male Housing (5 Circ.) (Packard)
-
35409012600 Open BarrelOpen Barrel
-
36710000029 Fuse BoxFuse Box
-
37515175442 Housing (Foot)Housing (Foot)
-
38410917200 Fuse 30 AmpFuse 30 Amp
-
39233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
40409010300 Female TermFemale Term
-
41710000039 Spark Plug Wire. Includes 41 - 43.Spark Plug Wire. Includes 41 - 43.
-
42710000041 Spark Plug CapSpark Plug Cap
-
43293750001 Tie Rap 94 mmTie Rap 94 mm
-
44207162044 Screw Hex. M6 x 20Screw Hex. M6 x 20
-
45234461608 External Tooth Lock Washer M6External Tooth Lock Washer M6
-
46232061414 Hex. Nut M6Hex. Nut M6
-
47233261414 Flanged Elastic Nut 6Flanged Elastic Nut 6
-
48293550004 Dielectric Grease,150 gDielectric Grease,150 g
-
49710000048 Wire SealWire Seal
-
50710000022 Ground CableGround Cable
-
51210661940 Hex. Flanged Tapping Screw M6 x 19Hex. Flanged Tapping Screw M6 x 19
-
52207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
53710000185 Electronic Module CalibratedElectronic Module Calibrated
-
54278001166 Module ProtectorModule Protector
-
55207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
56233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
57293550015 Deoxit Lubricant, SprayDeoxit Lubricant, Spray
-
58278001062 Male Housing (26 Circ.). Includes 58 - 59.Male Housing (26 Circ.). Includes 58 - 59.
-
59278001307 Wire SealWire Seal
-
60278001063 Male Housing (26 Cir.). Includes 60 - 61.Male Housing (26 Cir.). Includes 60 - 61.
-
61278001307 Wire SealWire Seal
-
62278000995 Female TermFemale Term
-
63278000994 Female TermFemale Term
-
64293000070 PlugPlug
-
65293000070 Sealing CapSealing Cap
-
66278000996 Wire SealWire Seal
-
67278000997 Male Housing (3 Circ.)(Bosch)Male Housing (3 Circ.)(Bosch)
-
68278000999 Wire Seal AmpWire Seal Amp
-
69278000998 Female Term. AmpFemale Term. Amp
-
70710000048 Wire SealWire Seal
-
71409007300 Female TermFemale Term
-
72278000219 Male Housing (1 circuit)Male Housing (1 circuit)
-
73710000107 Female Housing (5 Circ.)Female Housing (5 Circ.)
-
74409004300 Male Term. (16 Gauge)Male Term. (16 Gauge)
-
75278000218 Wire Seal (16-18 Gauge)Wire Seal (16-18 Gauge)
-
76710000117 Winch Solenoid. Traxter XT.Winch Solenoid. Traxter XT.
-
77710000119 Protector Cap. Traxter XT.Protector Cap. Traxter XT.
-
78710000122 Solenoid Wire. Traxter XT.Solenoid Wire. Traxter XT.
-
79233261414 Nut M6. Traxter XT.Nut M6. Traxter XT.
-
80207661644 Hex. Screw M6 x 16. Traxter XT.Hex. Screw M6 x 16. Traxter XT.
-
81207162044 Hex. Screw M6 x 20. Traxter XT.Hex. Screw M6 x 20. Traxter XT.
-
82234461608 Lock Washer Serrated. Traxter XT.Lock Washer Serrated. Traxter XT.
-
83232061414 Nut M6. Traxter XT.Nut M6. Traxter XT.
-
84233261414 Nut M6. Traxter XT.Nut M6. Traxter XT.
-
85710000124 Winch Wire. Traxter XT.Winch Wire. Traxter XT.
-
86710000123 Winch Wire. Traxter XT.Winch Wire. Traxter XT.
-
87415080000 Tubing. Traxter XT.Tubing. Traxter XT.
-
88710000134 Winch Wire. Traxter XT.Winch Wire. Traxter XT.
-
89293750008 Tie Rap 30 mm. Traxter XT.Tie Rap 30 mm. Traxter XT.
