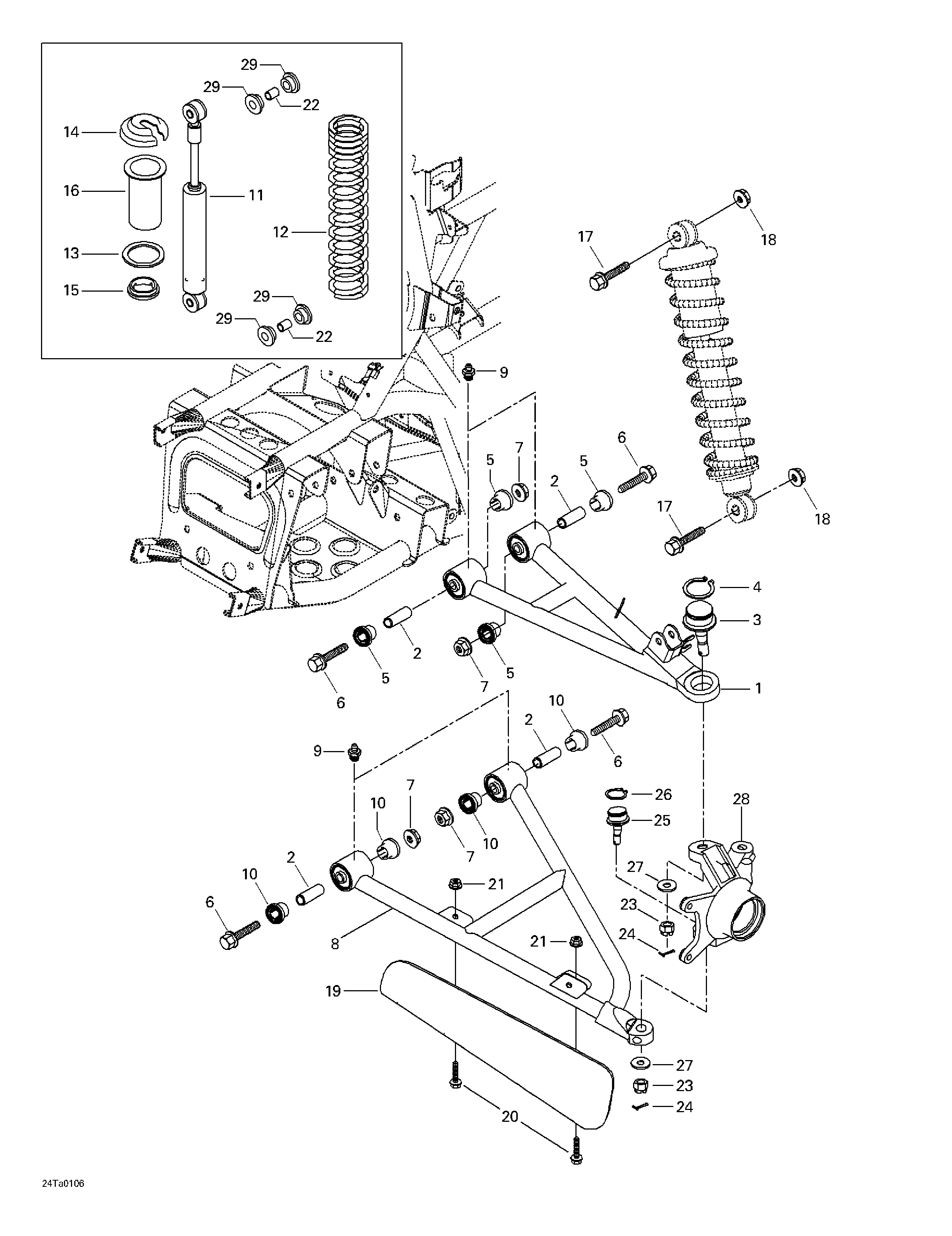

07- Front Suspension для BRP Traxter XT, 7467/7468/7472/7481 - 2001
-
№АртикулНазвание
-
1706200152 R.H. Upper Arm - Black. (7465 - 7466) Traxter.R.H. Upper Arm - Black. (7465 - 7466) Traxter.
-
706200187 R.H. Upper Arm - Black. (7459-7460-7467-7468-7472-7481)R.H. Upper Arm - Black. (7459-7460-7467-7468-7472-7481)
-
706200155 L.H. Upper Arm - Black. (7465 - 7466) Traxter.L.H. Upper Arm - Black. (7465 - 7466) Traxter.
-
706200193 L.H. Upper Arm - Black. (7459-7460-7467-7468-7472-7481)L.H. Upper Arm - Black. (7459-7460-7467-7468-7472-7481)
-
2706200182 Interior BushingInterior Bushing
-
3706200091 Ball JointBall Joint
-
4293370009 CirclipCirclip
-
5706200181 CushionCushion
-
6207607046 Hex. Flanged Screw M10 x 7Hex. Flanged Screw M10 x 7
-
7233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
8706200159 R.H. Lower Arm - Black. (7465 - 7466) Traxter.R.H. Lower Arm - Black. (7465 - 7466) Traxter.
-
706200196 R.H. Lower Arm - Black. (7459-7460-7467-7468-7472-7481)R.H. Lower Arm - Black. (7459-7460-7467-7468-7472-7481)
-
706200161 L.H. Lower Arm - Black. (7465 - 7466) Traxter.L.H. Lower Arm - Black. (7465 - 7466) Traxter.
-
706200200 L.H. Lower Arm - Black. (7459-7460-7467-7468-7472-7481)L.H. Lower Arm - Black. (7459-7460-7467-7468-7472-7481)
-
9408200700 Grease FittingGrease Fitting
-
10706200181 CushionCushion
-
11706200137 Front ShockFront Shock
-
12706200006 Front SpringFront Spring
-
13706000028 Ring HolderRing Holder
-
14503140600 Spring StopperSpring Stopper
-
15706000007 Spring SeatSpring Seat
-
16503139800 ProtectorProtector
-
17207604544 Hex. Flanged Screw M10 x 45Hex. Flanged Screw M10 x 45
-
18233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
19706200007 Arm Protector R.H. (7465 - 7466) Traxter.Arm Protector R.H. (7465 - 7466) Traxter.
-
706200179 Arm Protector R.H. (7459-7460-7467-7468-7472-7481)Arm Protector R.H. (7459-7460-7467-7468-7472-7481)
-
706200009 Arm Protector L.H. (7465 - 7466) Traxter.Arm Protector L.H. (7465 - 7466) Traxter.
-
706200180 Arm Protector L.H. (7459-7460-7467-7468-7472-7481)Arm Protector L.H. (7459-7460-7467-7468-7472-7481)
-
20207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
21233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
22706200186 Interior BushingInterior Bushing
-
23232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
24211400017 Cotter PinCotter Pin
-
25706200091 Ball JointBall Joint
-
26293370009 CirclipCirclip
-
27503175400 Hardened WasherHardened Washer
-
29706200185 CushionCushion
