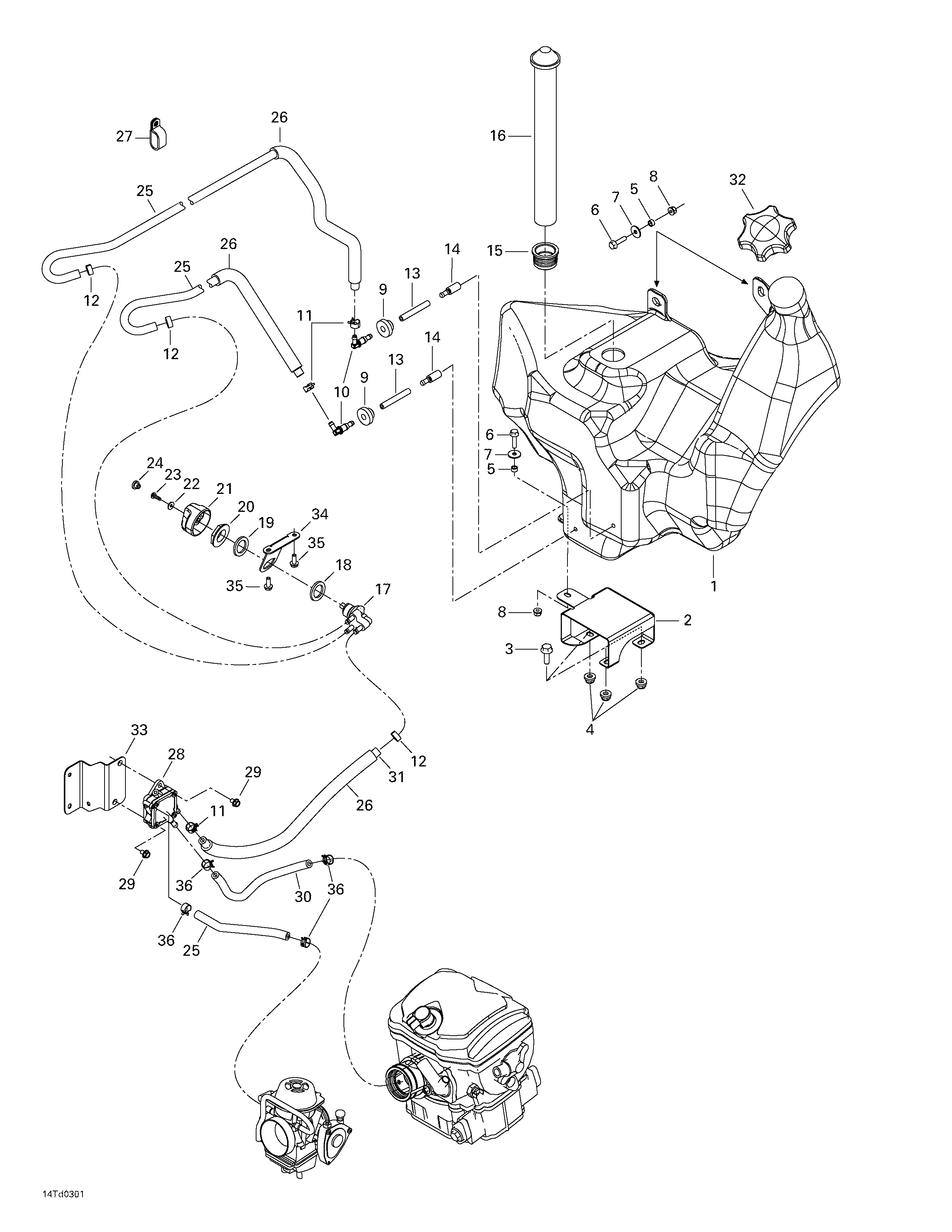

02- Fuel Tank для BRP Quest 500 - 2003
-
№АртикулНазвание
-
1709000035 Fuel tankFuel tank
-
2709000039 Fuel tank supportFuel tank support
-
3207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
4233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
5293900029 BushingBushing
-
6207662544 Hex flanged screw M6 x 25Hex flanged screw M6 x 25
-
7224061201 Flat washerFlat washer
-
8233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
9570045500 GrommetGrommet
-
10414580600 Elbow Male ConnectorElbow Male Connector
-
11414415200 Spring clampSpring clamp
-
12293650042 Oetiker clampOetiker clamp
-
13415080200 Fuel lineFuel line
-
14414865700 Fuel filterFuel filter
-
15293720058 GrommetGrommet
-
16709000033 Fuel gaugeFuel gauge
-
17275500098 Fuel valveFuel valve
-
18293250004 GasketGasket
-
19250200015 WasherWasher
-
20212100009 Hex plastic nutHex plastic nut
-
21275500263 Fuel valve knobFuel valve knob
-
22234040600 Flat washer M4Flat washer M4
-
23208640860 Phillips screw M4 x 8Phillips screw M4 x 8
-
24275500241 Fuel valve plug capFuel valve plug cap
-
25415079800 Hose 1/4''Hose 1/4''
-
26409901800 TubingTubing
-
27709000057 Open clampOpen clamp
-
28707200000 Fuel pumpFuel pump
-
29210261040 Hex flanged screw M6 x 10Hex flanged screw M6 x 10
-
30709000047 Formed hoseFormed hose
-
31709000068 Formed hoseFormed hose
-
32709000059 Fuel capFuel cap
-
33709000040 Pump supportPump support
-
34709000070 Valve supportValve support
-
35210261680 Hex flanged screw M6 x 16Hex flanged screw M6 x 16
-
36293650042 Oetiker clampOetiker clamp
