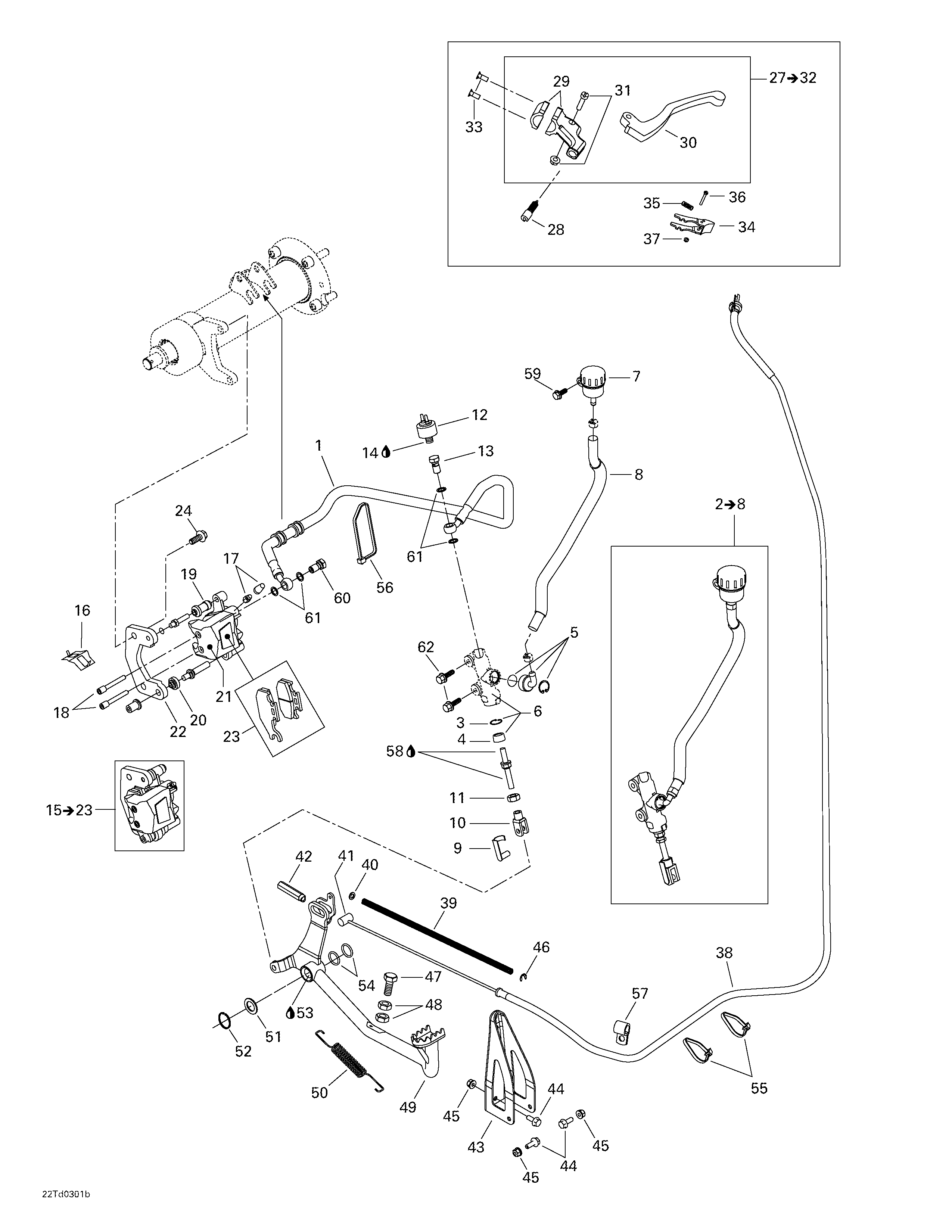

06- Hydraulic Rear Brake для BRP Quest 500 - 2003
-
№АртикулНазвание
-
1705600163 Rear brake flexible hose. STD and XTRear brake flexible hose. STD and XT
-
2705600154 Master cylinder and rod ass'y. Includes 2 - 8.Master cylinder and rod ass'y. Includes 2 - 8.
-
3705600068 CirclipCirclip
-
4705600090 Compression bootCompression boot
-
5705600064 Pusher bracketPusher bracket
-
6705600063 Set pistonSet piston
-
7705600067 Oil tankOil tank
-
8705600169 Oil housing hoseOil housing hose
-
9250400007 PinPin
-
10705600100 YokeYoke
-
11232081414 Hex. nut M8Hex. nut M8
-
12710000099 Brake switchBrake switch
-
13705600092 Banjo boltBanjo bolt
-
14293800013 Loctite 56765, pipe sealant, 250 mlLoctite 56765, pipe sealant, 250 ml
-
15705600122 Rear caliper. Includes 15 - 23.Rear caliper. Includes 15 - 23.
-
16705600079 SpringSpring
-
17705600080 Screw bleederScrew bleeder
-
18705600081 Pin setPin set
-
19705600082 Compression bootCompression boot
-
20705600083 Compression bootCompression boot
-
21705600078 Set pistonSet piston
-
22705600149 Support liningSupport lining
-
23705600150 Brake pad kitBrake pad kit
-
24250000058 Hex. screw M10 x 15Hex. screw M10 x 15
-
27705600269 Brake handle ass'y. Includes 27 - 32.Brake handle ass'y. Includes 27 - 32.
-
28250000030 Machinated screwMachinated screw
-
29705600270 Clamp kitClamp kit
-
30705600186 LeverLever
-
31705600187 Pivot kitPivot kit
-
32705600188 Lever lock kit (not shown)Lever lock kit (not shown)
-
33205351646 Screw M5 x 16Screw M5 x 16
-
34705600224 Lock leverLock lever
-
35705600225 SpringSpring
-
36208032291 Mecanic cotter screw M3 x 22Mecanic cotter screw M3 x 22
-
37232531423 Elastic hex. nut M3Elastic hex. nut M3
-
38705600124 Rear brake cableRear brake cable
-
39705600173 SpringSpring
-
40705600145 Flat washerFlat washer
-
41705600146 Cable barrelCable barrel
-
42705600147 NutNut
-
43705600191 Removable cable supportRemovable cable support
-
44207661644 Hex. flanged screw M6 x 16Hex. flanged screw M6 x 16
-
45233261414 Elastique flanged nut m6Elastique flanged nut m6
-
46705600272 CirclipCirclip
-
47207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
48232006414 Hex. Nut M10Hex. Nut M10
-
49705600125 Brake pedalBrake pedal
-
50705600107 Brake pedal springBrake pedal spring
-
51503107800 WasherWasher
-
52293370012 CirclipCirclip
-
53293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
54293300053 O-ringO-ring
-
55414115200 Tie-rapTie-rap
-
56293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
57414351600 Open clampOpen clamp
-
59210261680 Hex flanged screw M6 x 16Hex flanged screw M6 x 16
-
60705600056 Banjo BoltBanjo Bolt
-
61414920600 WasherWasher
-
62207581646 Hex flanged screw M8 x 16 (scotch grip)Hex flanged screw M8 x 16 (scotch grip)
