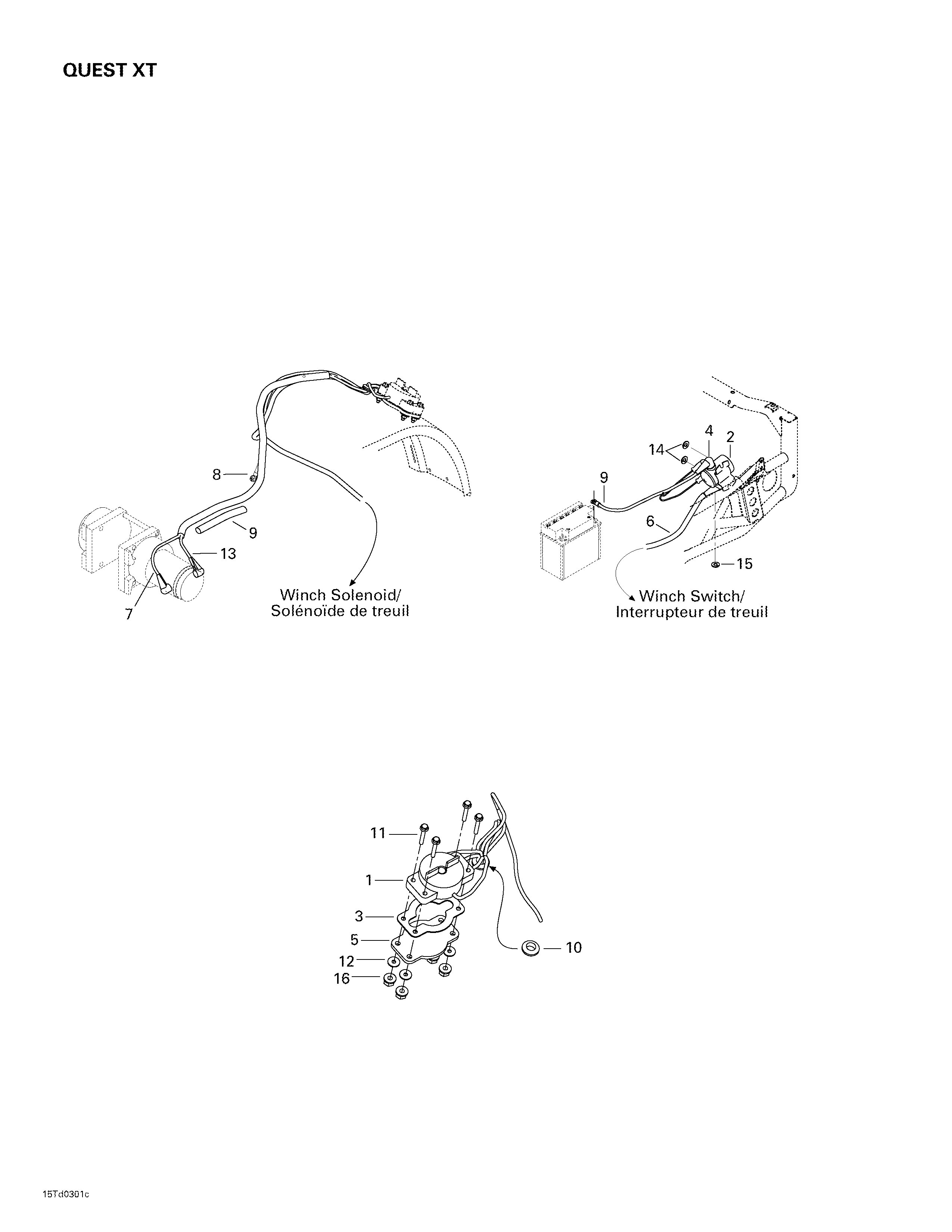

10- Electrical Accessories 2 для BRP Quest 500 - 2003
-
№АртикулНазвание
-
1710000116 Winch Switch. Quest XT 650.Winch Switch. Quest XT 650.
-
2710000284 Solenoid. Quest XT 650.Solenoid. Quest XT 650.
-
3710000118 Winch support. Quest XT 650.Winch support. Quest XT 650.
-
4710000119 Protector cap. Quest XT 650.Protector cap. Quest XT 650.
-
5710000120 Rubber spacer. Quest XT 650.Rubber spacer. Quest XT 650.
-
6710000270 Solenoid wire. Quest XT 650.Solenoid wire. Quest XT 650.
-
7710000123 Winch Wire. Quest XT 650.Winch Wire. Quest XT 650.
-
8710000124 Winch Wire. Quest XT 650.Winch Wire. Quest XT 650.
-
9415080000 Tubing 16 mm. Quest XT 650.Tubing 16 mm. Quest XT 650.
-
10293720066 Gormmet. Quest XT 650.Gormmet. Quest XT 650.
-
11207664044 Hex. flanged screw M6 x 40. Quest XT 650.Hex. flanged screw M6 x 40. Quest XT 650.
-
12224061201 Flat washer. Quest XT 650.Flat washer. Quest XT 650.
-
13710000134 Winch Wire. Quest XT 650.Winch Wire. Quest XT 650.
-
14250200026 Lock washer. Quest XT 650.Lock washer. Quest XT 650.
-
15250200027 Lock washer. Quest XT 650.Lock washer. Quest XT 650.
-
16233261414 Elastic flanged nut M6. Quest XT 650.Elastic flanged nut M6. Quest XT 650.
