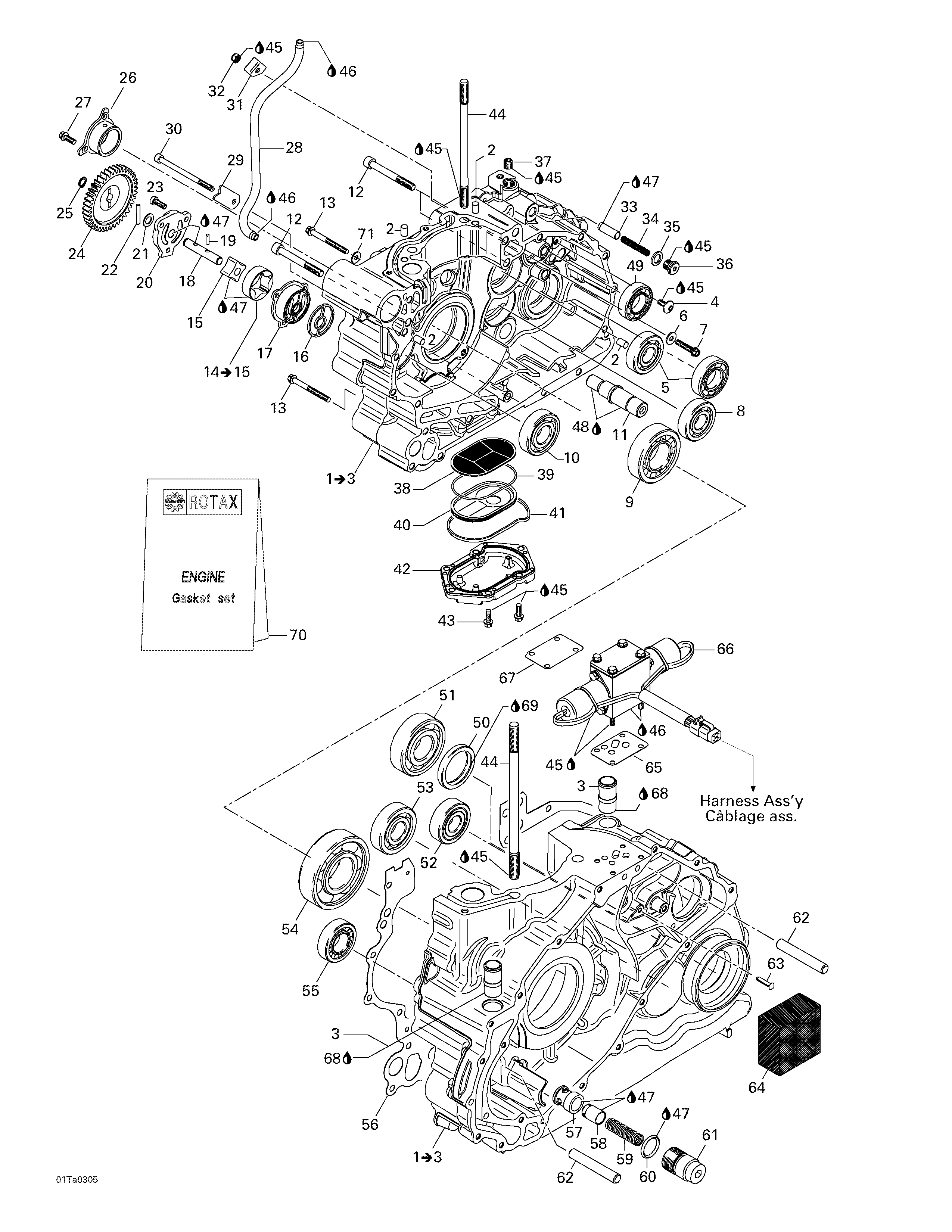

01- Crankcase для BRP Traxter XL, 7565 - 2003
-
№АртикулНазвание
-
1711295881 Crankcase Ass'y. Includes 1 - 3.Crankcase Ass'y. Includes 1 - 3.
-
2290632010 Pin M8 x 12Pin M8 x 12
-
3711224260 TubeTube
-
4711241531 Screw M6 x 13Screw M6 x 13
-
5711232764 Ball Bearing 6205Ball Bearing 6205
-
6711627400 WasherWasher
-
7711241941 Allen Screw M6 x 30Allen Screw M6 x 30
-
8290932095 Ball Bearing 6304Ball Bearing 6304
-
9711232490 Roller BearingRoller Bearing
-
10711632200 Ball Bearing 63/22Ball Bearing 63/22
-
11711220570 Intermediate Gear ShaftIntermediate Gear Shaft
-
12420841991 Socket Screw M8 x 70Socket Screw M8 x 70
-
13711640351 Hex. Flanged Screw M6 x 65Hex. Flanged Screw M6 x 65
-
14711956275 Oil Pump Rotor Ass'y. Includes 14 - 15.Oil Pump Rotor Ass'y. Includes 14 - 15.
-
16711650960 Rubber RingRubber Ring
-
17711610140 Ring HousingRing Housing
-
18711220592 Oil Pump ShaftOil Pump Shaft
-
19711232730 Needle PinNeedle Pin
-
20711211852 Oil Pump CoverOil Pump Cover
-
21711827590 Thrust WasherThrust Washer
-
22420232970 Needle Pin M4 x 25Needle Pin M4 x 25
-
23420240400 Socket Screw M6 x 20Socket Screw M6 x 20
-
24711635030 Oil Pump Gear (40 Teeth)Oil Pump Gear (40 Teeth)
-
25420245330 Snap RingSnap Ring
-
26711610130 Ring HousingRing Housing
-
27711241751 Hex Flanged Screw M6 x 16Hex Flanged Screw M6 x 16
-
28711224622 Oil PipeOil Pipe
-
29711627437 Holding StripHolding Strip
-
30711241481 Socket Screw M6 x 90Socket Screw M6 x 90
-
31711627432 Holding StripHolding Strip
-
32232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
33711256590 PistonPiston
-
34711238020 Compression SpringCompression Spring
-
35711250015 Sealing RingSealing Ring
-
36711241700 Plug ScrewPlug Screw
-
37711840651 Plug ScrewPlug Screw
-
38711256572 Oil SieveOil Sieve
-
39711931385 O-RingO-Ring
-
40711256652 Oil CollectorOil Collector
-
41711650950 Rubber RingRubber Ring
-
42711211941 Oil Sieve CoverOil Sieve Cover
-
43711241861 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
44711241670 Stud M10 x 190Stud M10 x 190
-
45293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
46413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
48711297433 Molykote G-n, Dow Corning, 88162-74, 50gMolykote G-n, Dow Corning, 88162-74, 50g
-
49420932650 Ball Bearing 6005Ball Bearing 6005
-
50711650700 Oil SealOil Seal
-
51420932825 Ball Bearing 6305Ball Bearing 6305
-
52711932815 Ball Bearing 6303EBall Bearing 6303E
-
53290932095 Ball Bearing 6304EBall Bearing 6304E
-
54711432120 Ball Bearing 6307Ball Bearing 6307
-
55711232280 Roller BearingRoller Bearing
-
56711650422 Crankcase GasketCrankcase Gasket
-
57711256602 Seat Valve SleeveSeat Valve Sleeve
-
58711256630 Piston ValvePiston Valve
-
59711938785 Compression SpringCompression Spring
-
60711250050 O-RingO-Ring
-
61711640790 Plug Screw M24Plug Screw M24
-
62711229470 Cylindrical Pin M10 x 65Cylindrical Pin M10 x 65
-
63711229170 Groove Pin M4 x 20Groove Pin M4 x 20
-
64711256720 Oil Separating FoamOil Separating Foam
-
65711650630 Soleno‹d Valve GasketSoleno‹d Valve Gasket
-
66711256540 Soleno‹d ValveSoleno‹d Valve
-
67711650635 GasketGasket
-
68413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
69293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
70711296375 Engine Gasket SetEngine Gasket Set
-
71711230150 Oil SealOil Seal
